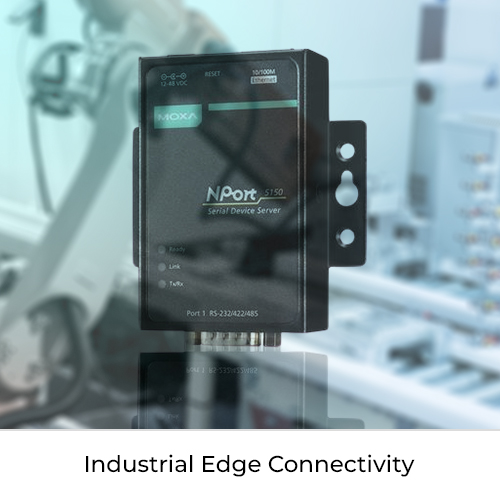

Moxa NPort 5150 Bench Test

by Brent Raynor – www.manuauto.com



  RS-232 and RS-485 Port Test
         Windows XP Setup
  • Change the properties of the Local Area Connection.
  • Go to Start, Settings, and then Network Connections
  • Select Local Area Connection and then Properties
  • Scroll down the list and select Internet Protocol (TCP/IP).  If IP information is  shown under Use the following IP address, make sure to write it down before proceeding.
  • Select Use the following IP address and enter an IP address that is similar to the NPort 5110, except for the last two digits.



         Hardware Setup

  • Connect an ethernet cross-over cable from the computer to the  NPort 5150.



         Moxa NPort Management Suite

  • The first step is to configure the ethernet side of the NPort 5110
  • Open the NPort Management Suite and select Configuration

 NPort Administrator Configuration

NPort Administration Suite Configuration

  • Select the NPort (MAC Adress) and configure the settings.
  • Select Network and modify the IP Address, NetMask, and Gateway.

NPort Administrator Network Configuration

  • Select Serial, then select Modify, double click the information line and select the Settings

NPort Administrator Serial Configuration

  • Set the baud rate to 9600, 8,N,1, No flow Control, enable FIFO. The    Interface tab is either set to RS-232 or RS-485, 4 wire, depending on what  signal is being tested.

NPort Administrator Operating Mode Configuration

  • Select Operation Mode, then select the Modify tab, double click the information line and select View Settings tab. Set it for Real Com Mode.
  • Select OK and the settings will be updated in the NPort 5110.

NPort Administration Operating Mode Configuration

   NPort Administration Reboot Configuration

  • The next step is to configure the com port.
  • Select COM Mapping and double click the information line to change the serial settings. If there is no information is shown, select Add Target.

NPort Administration COM Mapping

  • Select the NPort required and click OK.

NPort Administration Com Mapping

NPort Administrator COM Mapping

  • Select Basic Settings and choose a com port.

NPort Administration COM Mapping

  • Select Serial Parameters and set for 9600,8,N,1, no flow control.  Click OK.

NPort Administrator Serial Com Settings

  • Select Exit

NPort Administrator Exit



Reboot the computer at this point, before doing the loopback test.



HyperTerminal Loopback Test

         Test the RS-232 communication port

  • Jumper pins 2 to 3on the Moxa NPort DE-311 DB9 com port.
  • Pin 2 -> TXD       Pin 3 -> RXD
  • In Windows XP, go to start, programs, accessoriescommunications, and select HyperTerminal.
  • Type a name for this project.

NPort 5150 with RS-232 Test Jumper



  •  Select the com port that was assigned in Real COM Installer.

pic5a2

  • Com port settings are 9600, 8, N, 1, None.  Click OK.



9600-baud

  • Type a message and it will appear on the HyperTerminal screen. This confirms the RS-232 communication port works accordingly. Test this procedure by removing the jumper.  As you type, the characters will not appear on the HyperTerminal screen.





         Test the RS-422/485 communication port

  • Jumper pins 2 to 3 and 1 to 4 on the Moxa NPort DE-311 DB9 com port using two paperclips.
  • Pin 2 -> RXD+(B)       Pin 3 -> TXD+(B)
  • Pin 1 -> RXD-(A)        Pin 4 -> TXD-(A)
  • Repeat the HyperTerminal Loopback Test.



At Manufacturers Automation Inc., we are dedicated to customer service and want to make your experience with Moxa a pleasant one.

© Copyright 2010, Manufacturers Automation Inc., www.manuauto.com



Manufacturers Automation Inc.
1600 King Street North
P.O. Box 602
St. Jacobs, ON N0B 2NO
800-387-6268 Tel.      519-664-3300 Tel.
519-664-1600 Fax.

StreetSmart 17X Ethernet Port Configuration

by Brent Raynor – www.manuauto.com



How to configure the StreetSmart ethernet port

StreetSmart Ethernet Port



  • Connect an RS232 cable to COM O of the Adaptive StreetSmart controller board

    StreetSmart 17X Pics 016 Revised



  • Open the Diagnostic program in the AlphaNet software
  • Configure the Serial Settings, 9600, 8, N, 1  and select OK

    AlphaNet Diagnostic Serial Settings



  • Select Set Custom Commands

AlphaNet Custom Commands



  • Select Command 3
  • Select Open Ini File

AlphaNet Custom Commands

    When entering the IP address or subnet mask make sure to enter three numbers before each dot.      ie.    010.011.011.254

  • Input the IP address and Subnet Mask
  • Type under Command 3  in capital letters
  • _01Z00_02EUi010.001.001.060_04
  • Type under Command 4  in capital  letters
  • _01Z00_02EUs255.255.255.000_04
  • Save and close

AlphaNet Diagnostic INI File



  • Select Command 3 and the button will turn on.
  • Click on Refresh and the IP address will update.
  • Select Send  (takes 30 seconds to update the EPROM)

AlphaNet Send Custom Commands



  • Confirm the IP address in StreetSmart display by typing _01Z00_02FUi_04
  • Select Enter Your Own Command Text
  • and after 30 seconds the changes will appear in the Results box

AlphaNet Custom Commands



  • Recycle power on the StreetSmart led display and the new IP address will appear on the diagnostic startup of the display.



At Manufacturers Automation Inc., we are dedicated to customer service and want to make your experience with Adaptive a pleasant one.

© Copyright 2010, Manufacturers Automation Inc., www.manuauto.com



Manufacturers Automation Inc.
1600 King Street North
P.O. Box 602
St. Jacobs, ON N0B 2NO
800-387-6268 Tel.      519-664-3300 Tel.
519-664-1600 Fax.

Wireless Site Survey – Model 1650 WiFi

by Brent Raynor – www.manuauto.com



      Recommended Procedure For A Sight Survey And Install

  • Access point (receiver) 192.168.1.232
  • Bridge  (transmitter) 192.168.1.231
  • Clear line of sight required, free of obstructions (ie. trees).
  • Maximum distance between Acesss point and Bridge is 300 feet.

1650



       Changing your computer’s IP address to communicate with the Access point (sign side)

  • Change the properties of the Local Area Connection.
  • Go to StartSettings, and then Network Connections.
  • Select Local Area Connection and then Properties.
  • Scroll down the list and select Internet Protocol (TCP/IP).
  • Select Use the following IP address and enter an IP address that is similar to the Bridge, except for the last two digits.
  • Connect an Ethernet crossover cable from the PC to the Bridge.

TCP IP



        Site Survey using Windows Explorer

     windows explorer



  • At the login prompt, type admin for the Username and Password
  • The EnGenius main screen will appear.
  • Click on Wireless Network

Wireless Network

  • The Wireless Network screen will appear.
  • Click the Site Survey button.

          Stite survey

  • The Site Survey sreen will appear.
  • Look for the EnGenius radio. If not present, click the refresh button.
  • If more than one EnGenius radio is present, refer to the MAC address of the radio required.
  • The Signal column (dbm) in this window will show the signal strenght.

                                       Acess Point

         Signal Strength Scale Guide

0 to -50   indicates Strong signal strength

-75 to -100   indicates Excellent signal strength

-51 to -75   indicates Good signal strength



At Manufacturers Automation Inc., we are dedicated to customer service and want to make your experience with Adaptive a pleasant one.

© Copyright 2010, Manufacturers Automation Inc.,  www.manuauto.com



Manufacturers Automation Inc.
1600 King Street North
P.O. Box 602
St. Jacobs, ON N0B 2NO
800-387-6268 Tel.      519-664-3300 Tel.
sales@manuauto.com

Drive Traffic To Your Business

Adaptive is the leading supplier of led digital signage solutions. Introducing the Excite series, the next generation of full colour outdoor advertising solutions.

The Excite series has been designed to maximize return of advertising, while minimizing energy and maintenance costs. With bright displays and ultra wide viewing angles the Excite series is ideal for any on or off premise advertising application. With its light weight modular design, the Excite series provides edge to edge viewing without the wasted space seen on bulky framed in configurations and because it’s equipped with digital pure colour processing, the Excite series renders over 16 million vibrant colours that shine bright in all lighting conditions.

The Excite series is the first all digital led display to use an industry standard DVI architecture for maximise flexibility. This provides straight forward integration with in door signage networks for an enterprise solution and because every Excite ships with Ooh!Media,  Adaptives’ powerful content, creation, and scheduling software. You will have the flexible to instantly deliver targeted exciting digital media that can be produced at a moments notice or scheduled months in advance.

With true Ethernet connectivity and embedded PC control, the Excite series delivers blazing fast file transfers and is capable of displaying real time video content, at up up to 60 frames per second.

Enclosed in Adaptives innovative protector case, environmental containments like dirt and salt spray are virtually eliminated from Excites internal compartments, minimizing maintenance costs and maximizing the life of your investment.

The Excite series is engineered and manufactured by Adaptive, a company with over 30 year of successfully delivering industry leading led display solutions and after sales support with a nation wide network of factory trained partners.

Courtesy of Adaptive

Adaptive_tagline

Excite2c

© Copyright 2010, Manufacturers Automation Inc., www.manuauto.com

Manufacturers Automation Inc.
1600 King Street North
P.O. Box 602
St. Jacobs, ON N0B 2NO
800-387-6268 Tel.      519-664-3300 Tel.
519-664-1600 Fax.

sales@manuauto.com

Panasonic Promotion for January 2010 – Fully Expandable PLC

Special_PLC

During the Month of January 2010 only Panasonic Ideas for Life have a Fully Expandable PLC package for only $299.00 CAD. Touch Screen with pass through feature.

The package includes:

  • 1 - PLC – AFPX-C14R
  • 1 - 5ft Cable – AFC1500-US
  • 1 - Touch Screen – AIGT0030B1
  • 3 Year Warranty Included
  • Plus PLC & HMI software package
  • All for $299.00 (Regular value $407.00)

The regular price for this package is $407.00 but you can get the Fully Expandable PLC Package for $299.00 Canadian Dollars till the end of January.

Tamperproof XStream Wireless Modems

by Brent Raynor – www.manuauto.com

Overview

MaxStream XStream wireless modems can now be security coded by applying a Vendor Identification (VID) number. This procedure will protect against unwanted intruders.

Procedure

  • Connect the MaxStream XStream to the computer using a straight through serial cable.
  • Only dip switch 1 is in the on position.
  • Apply power to the XStream.
  • Open the MaxStream X-CTU software. Should a Windows error box appear it means the XStream unit is not connected to the computer.
  • Select the Modem Configuration tab and the Read tab to acquire the modem parameters. A Version box will appear. In order for this procedure to work change the version to 42B5 .

X-CTU Modem Configuration Tab

  • Select the Write tab and at the bottom of the screen will appear Complete.

X-CTU Modem Configuration

  • Select the Terminal tab to enter AT commands.
  • Holding down the the shift key and typing +++ simutaenously will acknowledge an OK.  If necessary repeat this step until you see the OK.
  • Continue the following steps in a timely manner or you will have to repeat the above step.

X-CTU Terminal Mode

  • Type atid and the VID code of the modem will appear in red.

X-CTU Terminal Mode

  • Type atid 4444 as the new number and press the Enter Key. The Ok will appear.

X-CTU Terminal Mode

  • This new number must be saved to non-volatile memory using a Write Command (ATWR) .  Otherwise, the VID code revert to the orginal number when the modem is powered off and then on again.
  • Type atwr and press the Enter Key. OK will appear.

X-CTU Terminal Mode

  • Type atcn to exit the command mode.
  • Repeat this step for the corresponding XStream wireless modem.

X-CTU Terminal Mode

http://ftp1.digi.com/support/documentation/productmanual_xstream_pkgr_rs232rs485rfmodem_v5.x00.pdf (MaxStream X09-009PKC-R manual)

http://www.manuauto.com/decimal-to-hexadecimal-converter/ (Hex Converter)

© Copyright 2010, Manufacturers Automation Inc., www.manuauto.com

Manufacturers Automation Inc.
1600 King Street North
P.O. Box 602
St. Jacobs, ON N0B 2NO
800-387-6268 Tel.      519-664-3300 Tel.
519-664-1600 Fax.
sales@manuauto.com

Maxstream 9XTend Modems Will Not Transmit

 by Brent Raynor – www.manuauto.com



Overview

  • Red power led is on.
  • X-CTU software (Maxstream) does not detect the 9XTend modem.
  • Can ping the MaxStream (Digi) ethernet wireless modem.
  • Yellow and green I/O leds are not flickering simultaneously during transmit.

Maxstream indication leds

 Solution

  • Remove the original power adapter (JP4P2-9V4-6F). The technical specifications are 120VAC,  60Hz with an output is 9VDC at  400mA.  The defective unit may have an output of  12.75VDC. The Maxstream 9XTend wireless modem will power accordingly; however, the circuitry inside is in an overload state.
  • The new power adapter ( JRSP2-9V11-6F Rev A) is 100 -120VAC, 47-63Hz with an output of 9VDC at 0.5Amp, will fix this problem.

DSCF0072 Revised WebDSCF0071 Revised Web



http://www.digi.com/pdf/ds_xtend.pdf  (MaxStream 9XTend datasheet)

 http://ftp1.digi.com/support/documentation/productmanual_xtend_pkgr_rs232rs485rfmodem.pdf  (MaxStream 9XTend manual)



At Manufacturers Automation Inc., we are dedicated to customer service and want to make your experience with Maxstream (Digi) a pleasant one.

© Copyright 2009, Manufacturers Automation Inc., www.manuauto.com

Manufacturers Automation Inc.
1600 King Street North
P.O. Box 602
St. Jacobs, ON N0B 2NO
800-387-6268 Tel.      519-664-3300 Tel.
sales@manuauto.com

Moxa Turbo Chain Technology – Multiple Redundant Connections

Moxa Turbo Chain technology breakthrough for forming Multiple Redundant Connections.

Best redundant solutions beyond redundant ring technologies by realizing Flexible Topology, Fast Fault Recover and Cost effective configuration. Providing you with the maximum flexibility and expandability possible.

Turbo chain is versatile enough to be used with any topography simply link the two ends of your switch chain to your Ethernet network and your done.

Boundless Expansion.  Turbo chain makes network extension easy and engineers no longer need to reconfigure the existing network. Moxa Turbo Chain also inter-operates with other redundant protocols.

Now you can create any type of redundant network flexibly and with any restriction.

Fast Fault Recover in under 20 milliseconds.

With Turbo Chains ultra redundancy you can instantly recover from network failures. If a network link fails turbo chain activates the blocked path and and continues forwarding data all in a recovery time less that 20 milliseconds.

Cost saving deployment ring couplings use to interconnect different rings for distributed applications.

Compared with coupling turbo chains flexible topography requires fewer coupling cables and fewer Ethernet ports. Moxa’s Turbo Chain has been successfully used in numerous applications such as Oil Pipeline, Wind Power, Railway especially those that require multi ring connections.

All Moxa managed Ethernet switches are managed with redundant turbo chain technology.

So why wait start and deploy your networks with Turbo Chain today.

Moxa NPort S8000 Serial to Ethernet Device – Overview

Moxa NPort S8000 Serial to Ethernet Device – Overview

Combo switch and device server. NPort S8000 Series Industrial Ethernet Switch. Moxa switches support turbo raid Fastest self healing technology that provides fault recovery of less than 20 ms and allows for a larger ring configuration. Moxa Device Servers are rugged and reliable. Easy to use Serial to Ethernet connectivity.  All in one design for greater versatility.

Each NPort S8000 includes:

  • 2 fiber ports
  • 3 Ethernet Ports
  • 4 RS-232/422/485 Serial Ports

The Moxa NPort S8000 Supports Several Serial to Ethernet Functions:

  • Serial Device Server RS-232, RS-422, RS-485, Real COMM and RFC 2217.
  • Industrial Ethernet Switch Turbo Ring, RSTP, VLAN, Qos and 802.1x.

Complete Hardware Protection that Includes Surge Protection for the Power Source, Serial and Ethernet Connections.

  • 2 KV Serial Isolation
  • Full Surge Protection
  • Level 4 ESD
  • UL508 Safety

Ring Redundancy at the Device Level – Ethernet Redundancy at the Device Level.

Watch the video for some practical applications.

Compact size makes the NPort S8000 is the best solution for your projects.

The NPort S8000 simplifies your Industrial Network Connections.

Moxa’s Serial to Fiber Converter Family Introduction

Moxa RS-232/422/485 to optical fiber media converters

Moxa’s Serial to Fiber Converter Family Introduction

Moxa’s serial to fiber converters which include TCF-90 and TCF-142 for entry level, ICF-1150 series for industrial grade and NRack System for high density solution. Also include CP-102UF which is a multiport serial board with fiber optic interface.

The TCF-142 media converter is equipped with a multiple interface circuit that can handle RS-232 or RS-422/485 serial interfaces and multi-mode or single-mode fiber. TCF-142 converters are used to extend serial transmission up to 5 km (TCF-142-M with multi-mode fiber) or up to 40 km (TCF-142-S with single-mode fiber). The TCF-142 can be configured to convert either RS-232 signals, or RS-422/485 signals, but not both at the same time.
