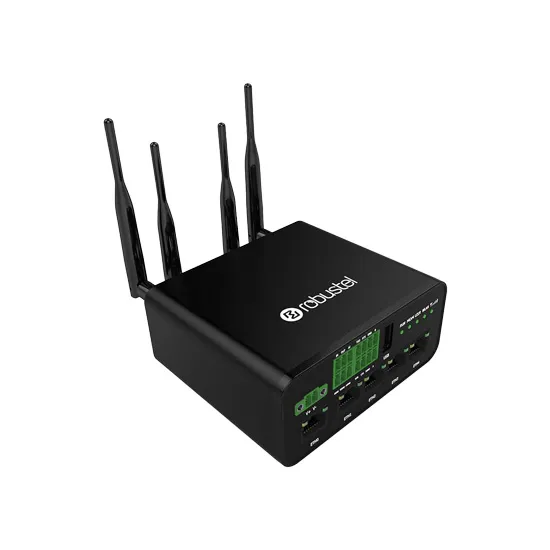

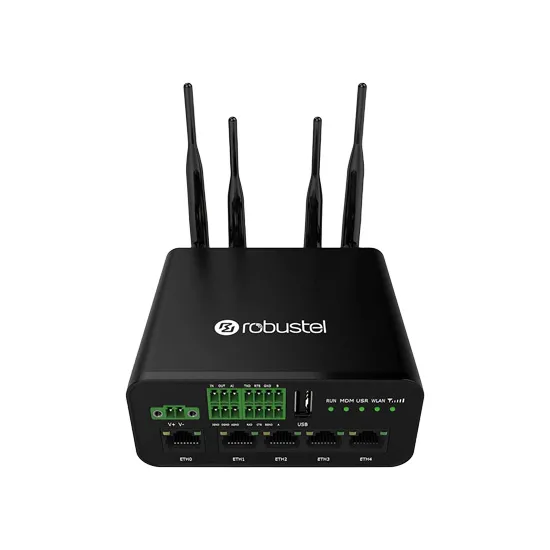

ROBUSTEL R1520-4L (V) (B056704) Dual-SIM Cellular VPN Router




- Model: R1520-4L (V) (B056704)
ROBUSTEL R1520-4L (V) (B056704) FEATURES
- PoE-PD Input voltage
- Country/Region: Oceania
- RCM Certification
- Cost-effective & high-performance 3G/4G router
- Rugged design with 9 to 36Vdc power
- “Global” 4G version available
- E-mark certification for in-vehicle use
- Optically isolated digital IO
- 10-bit Analogue interface for direct sensor connections
- Supports Dual SIMs & Wifi/Ethernet as WAN
- Cellular keep-alive and fast failover
- Extensive range of software “apps” for enhanced functionality
- RobustVPN – hosted service providing a “fixed IP” router
- IPsec/OpenVPN/GRE/L2TP/PPTP/DMVPN supported
- Extensive global certifications




ROBUSTEL R1520-4L (V) (B056704) INTRODUCTION
The R1520 router from Robustel is a versatile 4G router with 5 x Ethernet ports and a range of advanced functions for IoT Applications. There are 2 core models in the R1520 family as follows:
R1520 (S): This is the STANDARD version without GPS suitable for most light industrial and Enterprise applications
R1520 (V): This is the VEHICLE version with an E-mark and GPS. It is optimized for vehicle use but can be used for any application.
The Linux-based Operating System, RobustOS, has been developed entirely in-house which leads to a very high standard of technical support and infrequent firmware updates due to the modular nature of the OS. Many unique software innovations are built on top of RobustOS, these include:
RobustVPN: Highly flexible hosted VPN service so customers can easily enjoy a “fixed IP router”
Data-Guard: Invaluable failsafe in case of a system failure and runaway data usage Smart
Reboot: SMS tool to push roaming SIMs from a non-working to a working state
Smart Roaming: Provides you with device-assisted intelligent network selection for roaming SIMs to improve performance and reduce risk.
RCMS: is Robustel’s free router monitoring service that is fully compatible with the R2011. It allows the customer to see a location overview of their routers quickly and simply on a map. Features such as data usage, signal strength, current network, and much more can then be viewed on a per-router basis. Over-the-air updates are supported for Firmware, router configuration, and Apps serving as essential ‘insurance’ if anything is not quite right during deployment.
As an Authorized Distributor of ROBUSTEL, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy ROBUSTEL R1520-4L (V) (B056704) Dual-SIM Cellular VPN Router online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the R1520-4L (V) (B056703) and R1520-4L (V) (B056705) models in the ROBUSTEL R1520 Dual-SIM Series.
ROBUSTEL R1520-4L (V) (B056704) CERTIFICATIONS
3G Modem : Interface | |
SIM card slot | 2, Standard SIM or eSIM |
WAN | 1 x 10/100 Mbps |
LAN | Up to 5 x 10/100 Mbps |
USB | 1 x 480Mbps high-speed USB2.0 interface |
Digital Input and Output | 1 x DI + 1 x DO, wet contact |
Serial port | 1 x RS232 + 1 x RS485 |
Alert Output | - |
Cellular Standards | - |
Band Options | 4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28; LTE TDD: B40, 3G: B1/B2/B5/B8, 2G: 850/900/1800/1900MHz |
Cellular Antenna Connectors | SMA-K |
WLAN Standards | 802.11b/g/n supports AP and Client modes |
WLAN Antenna Connector | RP-SMA-K |
GPS Antenna Connector | 1 x GPS interface |
3G Modem : Radio specifications | |
Radio Connection type | No |
Maximum data transfer speed of 2G | - |
Maximum data transfer speed of 3G | - |
Maximum data transfer speed of 4G | - |
WiFi Radio Frequency | No |
3G Modem : Software Specifications | |
VPN | IPsec, OpenVPN, GRE |
Firewall | DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
Management | Web, CLI, SMS |
Routing Redundancy | - |
Time Management | - |
3G Modem : Standards and protocols | |
Protocols | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc. |
3G Modem : Features and capabilities | |
Send and receive SMS | Yes |
3G Modem : Security | |
Security and Encryption | WEP, WPA, WPA2, 64/128 AES, TKIP |
Authentication | - |
3G Modem : Power Requirements | |
Power Connector | 2-pin 3.5 mm socket with lock |
Power Consumption (Output Adapter) | Idle: 100 mA@12 V, Data Link: 1.0 A (peak) @12 V |
Input Voltage | 9 to 36V DC |
POE Support | No |
Input Current | - |
Reverse Polarity Protection | No |
3G Modem : Buttons | |
Power button | No |
Reset | 1 x Reset button |
3G Modem : LED Indicators | |
MTBF | - |
Operating mode | - |
3G Modem : Physical Characteristics | |
Dimensions | 105 x 90 x 46 mm |
Installations | Desktop, wall mounting, and 35 mm DIN rail mounting |
Housing | Plastic |
Weight | 250 g |
Operating Temperature | -25 to 70 °C |
Storage Humidity | - |
Storage Temperature | -40 to 85 °C |
Type of Use | |
Standards and Certifications | Environmental |
