As a leading edge connectivity, industrial computing, and network infrastructure solutions provider, Moxa offers the most comprehensive portfolio of industrial PoE switches that ensure reliable power sourcing and delivery to your critical network deployments.



PoE/PoE+/PoE++


All PoE standards are supported.
Moreover, PoE solutions with 36W
(PoE/PoE+/PoE++) Moxa’s
 proprietary and 60W high power
 output satisfies custom needs



One-stop shop for a Complete Lineup


Our comprehensive PoE solutions
 with a lineup of more than 100
 models offer one-stop-shop flexibility.
 We cater to all power budgets,
 HV/LV redundant power inputs,
Ethernet interfaces, form  factors,
installation requirements, and more.

Industrial Reliability

Rugged hardware is a

communication for critical designed
for harsh environments. Moxa’s
Many innovations ensure switches
are built to last and deliver uninterrupted
network automation systems.


Moxa PoE Switch Product Portfolio

Rackmount Managed Switches

Layer
Layer 2/3
Layer 2/3
Layer 3
Layer 2
Layer 2
Moxa Solutions

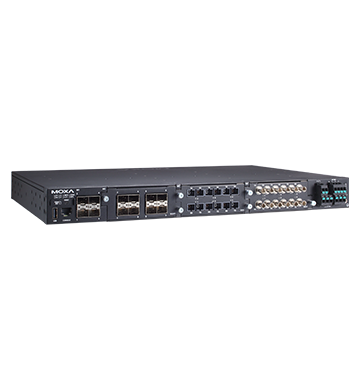

RKS-G4028 Series

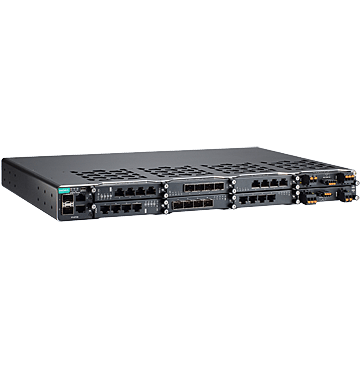

PT-G7828/G7728
Series

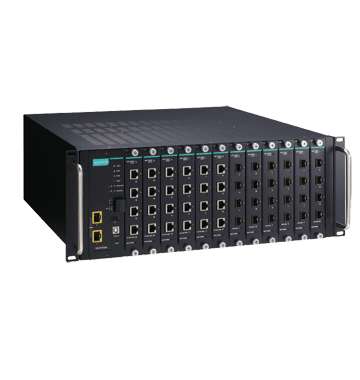

ICS-G7848A/G7850A/
G7852A Series



ICS-G7748A/G7750A/
G7752A Series

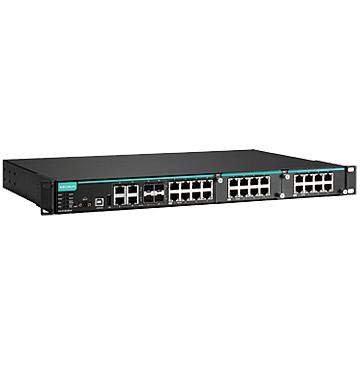

IKS-6728A Series


PoE Port
Up to 24 x PoE++
24 x PoE+
48 x PoE+
48 x PoE+
8/16/ 24 x PoE+
Ethernet Port
Up to 28 x GE
28 x GE
0/2/4 x 10GE + 48 x GE
0/2/4 x 10GE + 48 x GE
4 x GE + 24 x FE
PoE Output
(Per Port)

90 W
36 W
36 W
36 W
36 W
Dual Power Inputs

LV models: 24/48 VDC
HV models: 110/220
VAC&VDC
External PoE power
models: 48 VDC
48 VDC for PoE+ ports and system power
110/220 VAC for system power
Operating Temp. Range
-40 to 75°C
-40 to 85°C
-10 to 60°C
-10 to 60°C
-40 to 75°C
Certification
IEC-61850-3, IEEE 1613, EN 50121-4
IEC-61850-3, EN-50121-4
EN-50121-4
EN-50121-4
EN-50121-4


Modular Managed Switches

Layer
Layer 2
Layer 3
10GE Layer 2
10GE Layer 3
Moxa Solutions

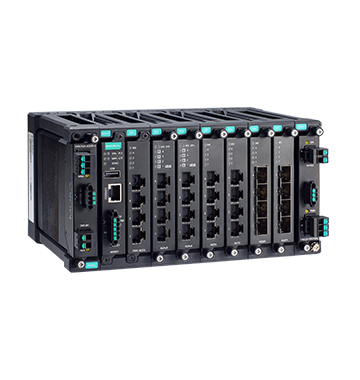

MDS-G4012/G4020/
G4028 Series


MDS-G4012-L3/G4020
-L3/G4028-L3 Series



MDS-G4012-4XGS/
G4020-4XGS/G4028
-4XGS Series

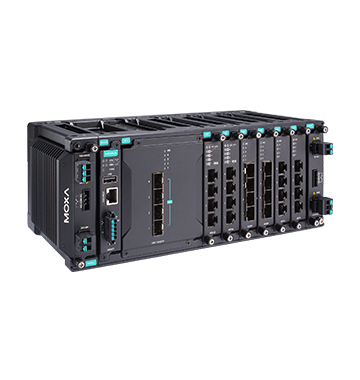

MDS-G4012-L3-4XGS/
G4020-L3-4XGS-
G4028-L3-4XGS Series


PoE Port
8/16/24 PoE+/GPoE+
Ethernet Port
Up to 28 x GE
4 x 10GE + up to 24 x FE/GE ports modules or SFP slots
PoE Output
(Per Port)

30 W
Dual Power Inputs
LV models: 24/48 VDC
HV models: 110/220 VAC&VDC
External PoE power models: 48 VDC
Operating Temp. Range
Standard temp. models: -10 to 60°C
Wide temp. models: -40 to 75°C
Certification
IEC-61850-3, IEEE 1613, EN 50121-4, Class I Division 2, ATEX, NEMA
IEC-61850-3, IEEE 1613, EN 50121-4, NEMA



Managed Switches

Layer
Layer 2/3
Layer 2/3
Layer 3
Layer 2
Layer 2
Moxa Solutions

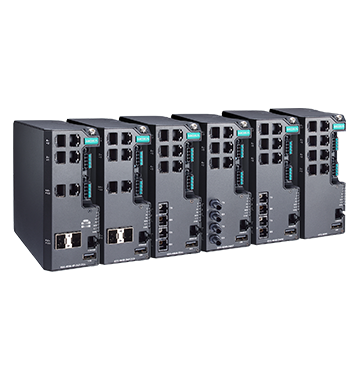

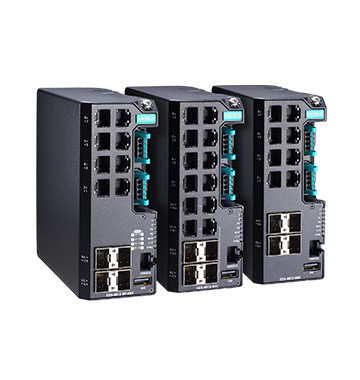

EDS-4008 Series



EDS-4012 Series

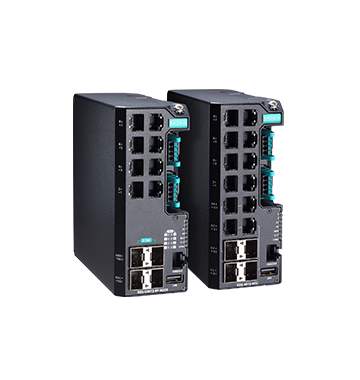

EDS-G4012 Series

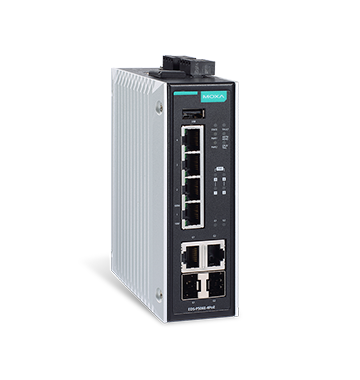

EDS-P506E Series

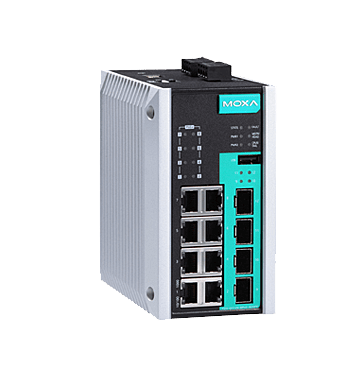

EDS-G512E Series


PoE Port
4 x PoE++
8 x PoE++
8 x PoE++
4 x PoE+
8 x PoE+
Ethernet Port
8 x FE + up to 4 x GE uplink pots or 2 x SFP ports
4 x GE + 8 x FE
12 x GE + up to 4 x GE or 2.5 GE fiber-optic ports
2 x GE + 4 x FE
12 x GE
PoE Output
(Per Port)

90 W
90 W
90 W
90 W
36 W
Dual Power Inputs

LV(A) models: 48 VDC
LV(B) models: 12/24/48 VDC

12/24/48 VDC
48 VDC
Operating Temp. Range
-40 to 75°C
-40 to 75°C
-10 to 60°C
-10 to 60°C
-40 to 75°C
Certification
IEC-61850-3, IEEE 1613, EN 50121-4
IEC-61850-3, EN-50121-4
EN-50121-4
EN-50121-4
EN-50121-4
Layer
Layer 2
Layer 2
Layer 2
Layer 2
Layer 2
Moxa Solutions

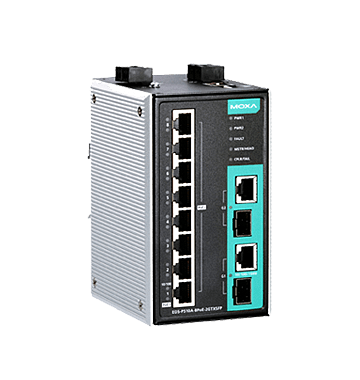

EDS-P510A Series

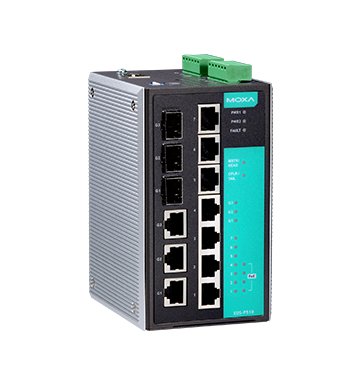

EDS-P510 Series

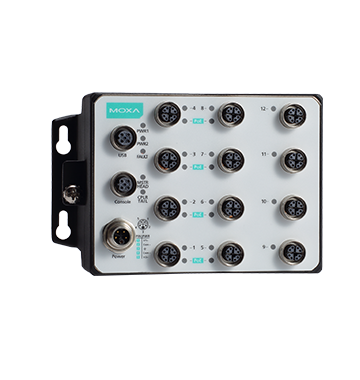

TN-G6500 Series

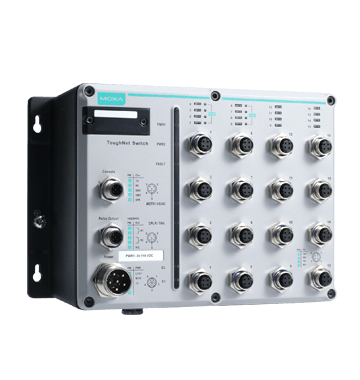

TN-5500A Series

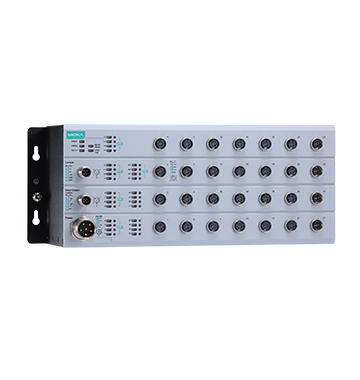

TN-4500A Series

PoE Port
8 x PoE+
4 x PoE
4 x PoE
4 x PoE
4 x PoE
Ethernet Port
2 x GE + 8 x FE
3 x GE + 7 x FE
3 x GE + 7 x FE
3 x GE + 7 x FE
3 x GE + 7 x FE
PoE Output
(Per Port)

36 W
15.4 W
30 W
30 W
30 W
Dual Power Inputs
48 VDC
48 VDC
24/36/48/72/96/110 VDC
24/36/48/72/96/110 VDC
24/36/48/72/96/110 VDC
Operating Temp. Range
Standard temp. models: -10 to 60°C
Wide temp. models: -40 to 75°C
-40 to 70°C
-40 to 75°C
-40 to 70°C
Certification
EN-50121-4, Class I Division 2, NEMA TS2
ABS, DNV-GL, LR, NK
EN 50121-4, EN 50155
EN 50121-4, EN 50155
EN 50121-4, EN 50155


Unmanaged Switches

Layer
-
-
-
Moxa Solutions

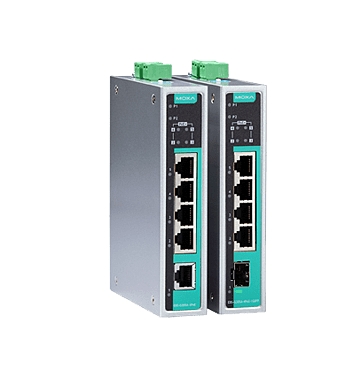

EDS-G205A Series

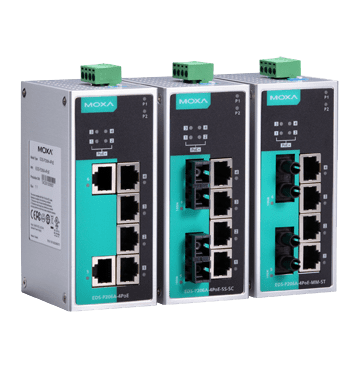

EDS-P206A Series

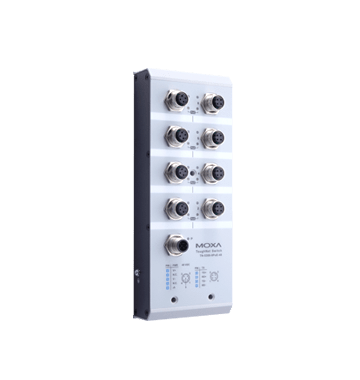

TN-5308 Series



PoE Port
4 x PoE+
4 x PoE+
4/8 x PoE
Ethernet Port
5 x GE
6 x FE
8 x FE
PoE Output
(Per Port)

30 W
30 W
30 W
Dual Power Inputs
12/24/48 VDC
12/24/48 VDC
48 VDC (Single input)
Operating Temp. Range
Standard temp. models: 0 to 60°C
Wide temp. models to 75°C
Standard temp. models: 0 to 60°C
Wide temp. models to 75°C
Standard temp. models: -25 to 60°C
Wide temp. models to 75°C
Certification
Standard temp. models: -25 to 60°C
Wide temp. models to 75°C
-EN 50155


Plug-in Modules

Layer
PoE+ Injectors
PoE+ Injectors
PoE Splitters
PoE Splitters
Moxa Solutions

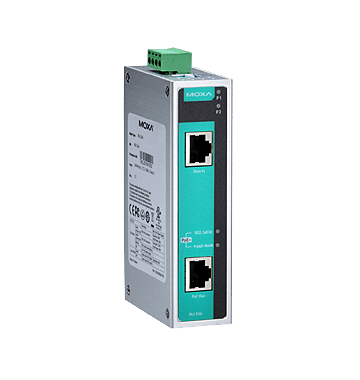

INJ-24A Series


INJ-24 Series

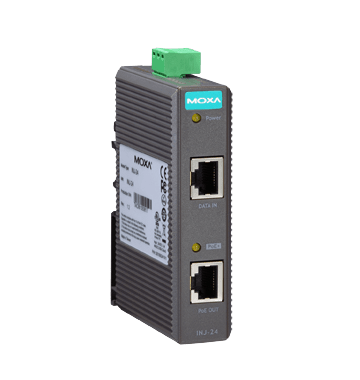

SPL-24 Series

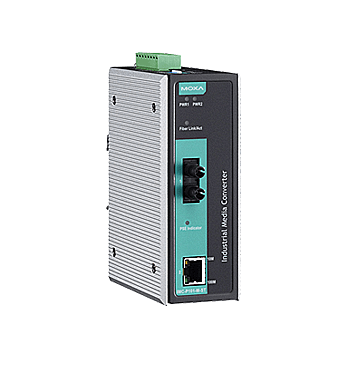

IMC-P101 Series



PoE Port
1 x PoE+
1 x PoE+
1 x PoE
1 x PoE+
Ethernet Port
1 x GE
1 x FE
1 x FE
1 x FE
PoE Output
(Per Port)

60 W
30 W
12.95 W
30 W
Dual Power Inputs
24/48 VDC(Single input)
24/48 VDC(Single input)
-48 VDC
Operating Temp. Range
Standard Temp: 0 to 60°C
Wide Temp: -40 to 75°C
Certification
--DNV-GL, ABS, LR, NK
-


* Note: Refer to the individual product datasheets on our website for the most updated specifications and features. Or click here to learn more about Moxa PoE switches.

Industrial Applications Deployed with Moxa PoE Switches

card__image

Real-time Video Streaming and Monitoring Network for Autonomous Haulage System in Surface Mining

card__image

Communication Network for Tramway Ticketing System

card__image

Smart City Traffic Improvement with Intelligent Transportation Systems

card__image

Remote Pipeline Monitoring

card__image

Security Monitoring Network for Power Substation Access Control

card__image

Reliable PoE Networks for Crane OCR Systems







Features and Benefits



Withstand Extreme
Temperatures


  • -10 to 60°C

  • Wide-temperature models:

    -40 to 75°C/85°C



HV/LV Power Options


  • Support 12/24/48 VDC input

  • Dual isolated redundant power

    supplies with HV/LV options



PoE Surge Protection


  • 3 kV LAN surge protection to

    protect equipment from electric

    Power surges and spikes



Robust Reliability


  • High MTBF – no fan or heater

    needed

  • High EMI resistance

  • Hot-swappable design for

    modular PoE switches



Support All PoE Standard


  • Support 802.3bt PoE++ with

    up to 90 W per port

  • Support standard PoE/PoE+

    and Moxa's proprietary high power

    PoE 36 W and 60 W



IACS-level Device Security


  • Built-in device security-based

    on the IEC 62443-4-2 standards

    (EDS-4000/G4000 Series and

    RKS-G4000 Series are

    IEC 62443-4-2 certified)




Flexible Design


  • 10GbE/2.5GbE/GbE/FE port speed

    options

  • RJ45, SFP, and PoE interface

    module options

  • DIN-rail, rackmount, and wall

    mount installations



Visualized Network Management:
MXview One


  • Automatic topology visualization

    available on a real-time dashboard

    with comprehensive network reporting

  • Security View for checking the security

    level of network devices

Network Redundancy and Scalability

  • Supports Turbo Ring and Turbo

    Chain for Gigabit redundancy

    under 50 ms (FE redundancy

    under 20 ms)

  • Turbo Chain can interoperate with

    other Ethernet ring protocols

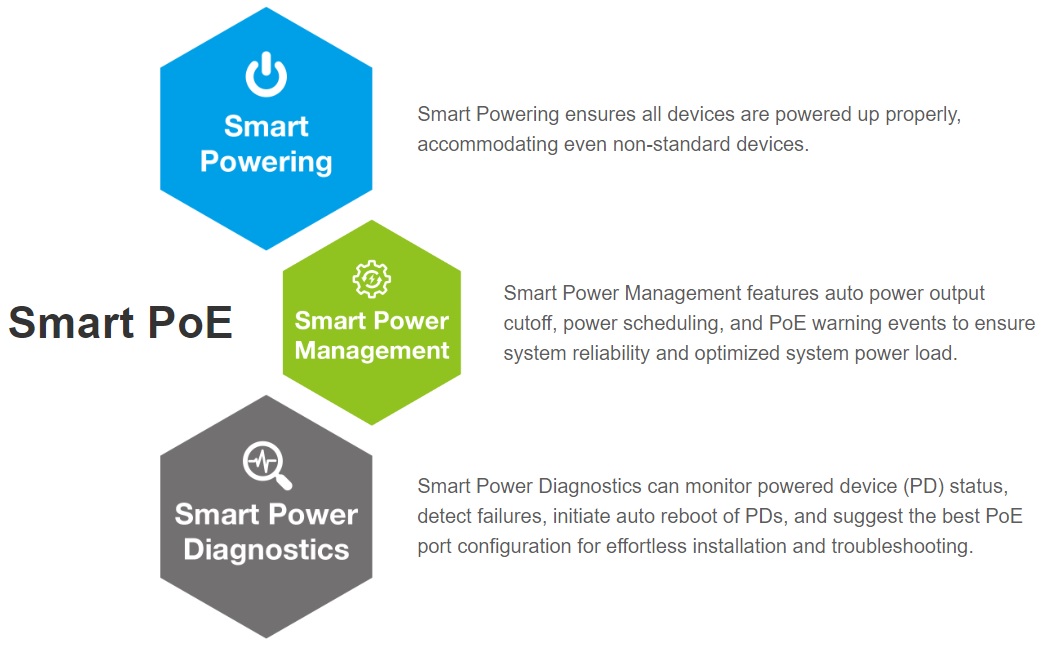

Smart PoE Technology

Moxa’s innovative technologies for easy PoE deployment
