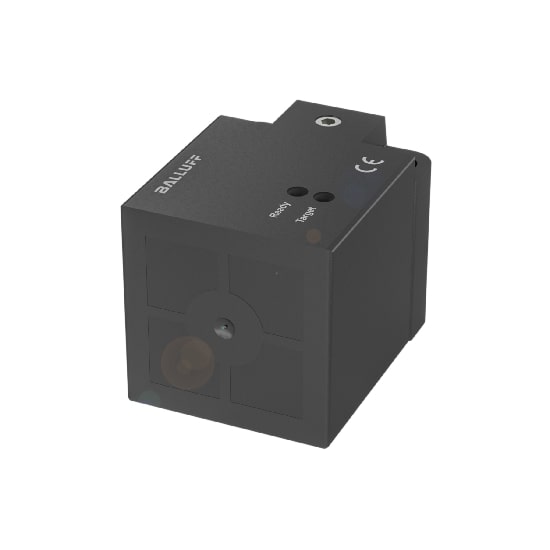

BALLUFF BES021K INDUCTIVE FACTOR 1/ MAGNETIC-FIELD-RESISTANT/ WELD-IMMUNE SENSOR

BALLUFF BES021K INDUCTIVE FACTOR 1/ MAGNETIC-FIELD-RESISTANT/ WELD-IMMUNE SENSOR
  • Model: BES021K
$0.00
Ex Tax: $0.00

BALLUFF BES021K FEATURES

  • Connection: M12x1-Male, 4-pin, A-coded
  • Operating temperature: -10 to 70 °C
  • IP rating: IP67
  • Additional features: Factor 1, Weld immune
  • Magnetic-field-resistant
  • Installation in different metals is possible
  • High-precision and flexible use
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

BALLUFF BES021K INTRODUCTION

BES inductive factor 1 sensors from Balluff can be used wherever different types of metals must be uniformly identified with high precision. An all-around reliable sensor for recognizing all metals, without a reduction factor at the switching distance: ferrous and non-ferrous metals, steel, brass, aluminum, etc.

Additionally, they are magnetic-field-resistant, making them usable in areas with a strong electromagnetic field, such as welding plants. We also offer variants with PTFE coatings to protect against welding spatter.


As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES021K INDUCTIVE FACTOR 1/ MAGNETIC-FIELD-RESISTANT/ WELD-IMMUNE SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the BES05KP and BES05AM models in the BALLUFF Inductive Factor 1 Sensors.

BALLUFF BES021K CERTIFICATIONS



Inductive Sensors : Interface
Output Characteristic PNP normally open/normally closed (NO/NC)
Inductive Sensors : Electrical Connection
Connection M12x1-Male, 4-pin, A-coded
Polarity Reversal Protected Yes
Inductive Sensors : Electrical Data
Protection Class II
Ripple 15 %
Switching Frequency 250 Hz
Operating Voltage Ub 10 to 30 VDC
Current (Ie) 200 mA
Inductive Sensors : Range/Distance
Measuring Range 35 mm
Assured Operating Distance Sa 28.1 mm
Real Switching Distance sr 35 mm
Inductive Sensors : Physical and Environmental Characteristics
Dimension 40 x 40 x 62 mm
Weight -
Installation non-flush
Operating Temperature -10 to 70 °C
Housing PBT, partly coated
IP Rating IP67
Tightening Torque -
MTTF 520 a
Standards and Approvals CE, UKCA, cULus, WEEE, IEC 60947-5-2
