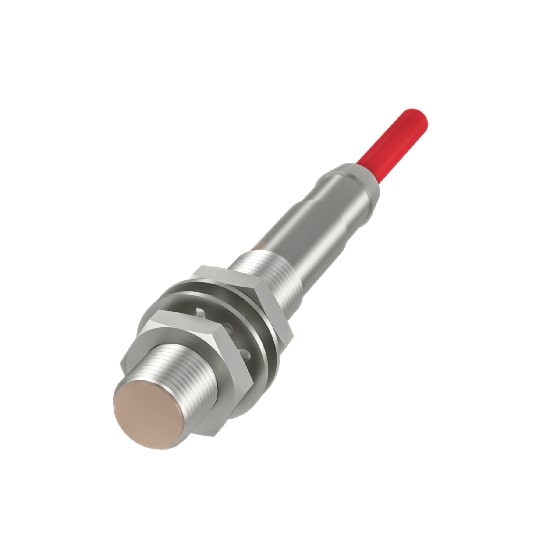

BALLUFF BES02HU TEMPERATURE-RATED INDUCTIVE SENSOR

BALLUFF BES02HU TEMPERATURE-RATED INDUCTIVE SENSOR
  • Model: BES02HU
$0.00
Ex Tax: $0.00

    BALLUFF BES02HU FEATURES

    • Connection: Cable, 3.00 m, Silicone
    • Operating temperature: -25 to 120 °C
    • IP rating: IP68
    • Temperature ranges up to 230 °C are available
    • Stainless steel housing
    • Various configurations and sizes
    Over 40 Years in Business
    Over 40 Years in Business
    Successful track record across Canada
    Full Engineering Services
    Full Engineering Services
    A powerhouse to provide consultation, training, and support
    Strong Brand Portfolio
    Strong Brand Portfolio
    Top-notch products from superb global and local suppliers
    Advanced Technologies
    Advanced Technologies
    From legacy and mainstream to advanced Industry 4.0

    BALLUFF BES02HU INTRODUCTION

    Balluff BES-series temperature-rated inductive sensors can withstand ultra-high temperatures up to 230 °C. Depending on the version, both the housing and cable construction are designed for elevated temperatures. The electronics are fully integrated and can be easily connected to appropriate accessories.

    Several form factors allow these sensors to be easily integrated into various situations, even those where space is at a premium. Some versions are also available as high-pressure-rated sensors. This represents a significant expansion of the range of applications.


    As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES02HU TEMPERATURE-RATED INDUCTIVE SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

    You can also find the BES04CK and BES05RH models in the BALLUFF Temperature-rated Inductive Sensors.

    BALLUFF BES02HU CERTIFICATIONS



    Inductive Sensors : Interface
    Output Characteristic PNP normally open (NO)
    Inductive Sensors : Electrical Connection
    Connection Cable, 3.00 m, Silicone
    Polarity Reversal Protected Yes
    Inductive Sensors : Electrical Data
    Protection Class -
    Ripple 15 %
    Switching Frequency 1000 Hz
    Operating Voltage Ub 10 to 30 VDC
    Current (Ie) 200 mA
    Inductive Sensors : Range/Distance
    Measuring Range 2 mm
    Assured Operating Distance Sa 1.6 mm
    Real Switching Distance sr 2 mm
    Inductive Sensors : Physical and Environmental Characteristics
    Dimension Ø 12 x 75 mm
    Weight -
    Installation for flush mounting
    Operating Temperature -25 to 120 °C
    Housing Brass, nickel-plated
    IP Rating IP68, IP60 at cable exit
    Tightening Torque 10 Nm
    MTTF 595 a
    Standards and Approvals CE, UKCA, cULus, WEEE, IEC 60947-5-2
