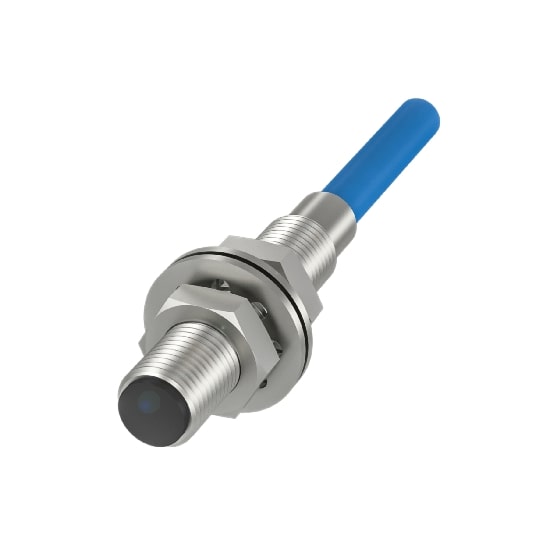

BALLUFF BES02L6 INDUCTIVE NAMUR SENSOR
BALLUFF BES02L6 INDUCTIVE NAMUR SENSOR
- Model: BES02L6
$0.00
Ex Tax: $0.00
BALLUFF BES02L6 FEATURES
- Connection: Cable, 3.00 m, PVC
- Operating temperature: -25 to 70 °C
- IP rating: IP67
- Interface: NAMUR
- Support for process stability
- Also available for hydraulic cylinders and hazardous areas
- Faults detectable
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
BALLUFF BES02L6 INTRODUCTION
Inductive NAMUR sensors and switching amplifiers make it easy to detect conditions within sensitive areas in a non-contacting manner. The sensors are placed inside the work area, and the switching amplifiers are placed outside. This assists with process stability.
In addition to standard versions, Balluff also offers high-pressure variants for monitoring end positions in hydraulic cylinders or for monitoring the positions of valves. There are explosion-proof variants for potentially explosive systems or rooms in Zones 1 and 2. In addition, proven models are available for applications in the semiconductor industry.
As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES02L6 INDUCTIVE NAMUR SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the BES0568 and BES05NN models in the BALLUFF Inductive NAMUR Sensors.
BALLUFF BES02L6 CERTIFICATIONS

| Inductive Sensors : Interface | |
| Output Characteristic | - |
| Inductive Sensors : Electrical Connection | |
| Connection | Cable, 3.00 m, PVC |
| Polarity Reversal Protected | Yes |
| Inductive Sensors : Electrical Data | |
| Protection Class | - |
| Ripple | 10 % |
| Switching Frequency | 2000 Hz |
| Operating Voltage Ub | 7.7 to 9 VDC |
| Current (Ie) | - |
| Inductive Sensors : Range/Distance | |
| Measuring Range | 0.8 mm |
| Assured Operating Distance Sa | 0.65 mm |
| Real Switching Distance sr | 0.8 mm |
| Inductive Sensors : Physical and Environmental Characteristics | |
| Dimension | Ø 5 x 24.5 mm |
| Weight | - |
| Installation | for flush mounting |
| Operating Temperature | -25 to 70 °C |
| Housing | Stainless steel |
| IP Rating | IP67 |
| Tightening Torque | 0.5 Nm |
| MTTF | 9720 a |
| Standards and Approvals | CE, UKCA, WEEE, IEC 60947-5-2 |
