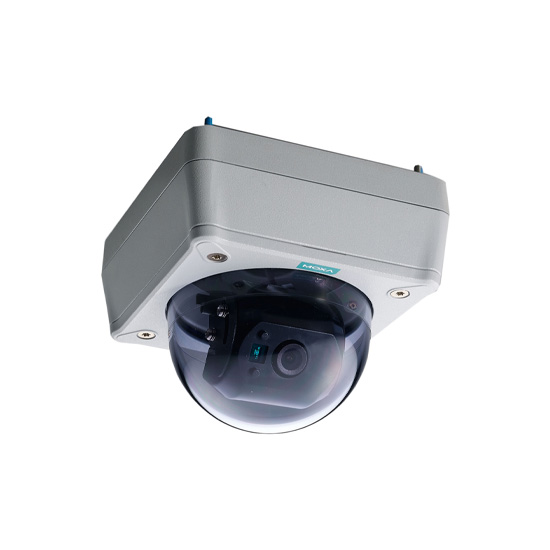

MOXA VPort P16-1MP-M12-CAM36-T Onboard IP Camera

Tags: Industrial Edge Connectivity , IP Cameras & Video Servers , IP Cameras , Onboard IP Cameras , Industrial IP Surveillance , IP Surveillance , Cameras , MOXA VPort P16-1MP-M12 Series

Model: VPort P16-1MP-M12-CAM36-T

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA VPort P16-1MP-M12-CAM36-T FEATURES

Lens: 3.6 mm
1 x PoE Port (10/100BaseT(X), M12 connector)
IP66-rated Metal housing with PC dome cover
Input Power Source: PoE (IEEE 802.3af)
Panel mount installation design
-40 to 70°C operating temperature

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA VPort P16-1MP-M12-CAM36-T INTRODUCTION

The rugged VPort P16-1MP-M12 cameras provide an HD (720P, 1280 x 720) video image, and feature 3 H.264/MJPEG video streams, giving them the versatility and ruggedness to excel in many different installations and environments for mobile IP video surveillance applications. In addition, the cameras are compliant with mandatory sections of EN 50155,1 covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making them suitable for a variety of industrial applications, and feature vandal-proofing (EN 62262 IK10), a -25 to 55°C or -40 to 70°C (T models) operating temperature, a rugged M12 Ethernet port, PoE power inputs, IP66 rain and dust protection, and day & night image capability.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA VPort P16-1MP-M12-CAM36-T Onboard IP Camera online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the VPort P16-1MP-M12-CAM80-T, VPort P16-1MP-M12-CAM80, and VPort P16-1MP-M12-CAM36 models in the MOXA VPort P16-1MP-M12 Series.

MOXA VPort P16-1MP-M12-CAM36-T CERTIFICATIONS

IP Cameras : Camera
Sensor	1/2.7-in HD progressive scan CMOS
Lens	f=3.6mm, F1.6, Diagonal 99°, Horizontal 94°, Vertical 47°
Camera Angle	Pan 350°, Tilt 65° (controlled manually)
ICR Control (for day & night)	Auto
Synchronization	Internal
White Balance	ATW/AWC
DNR	Built-in 2D/3D DNR
WDR	110 dB
Flickerless Control	Automatic, 50 Hz, 60 Hz modes
Image Rotation	Flip, Mirror, and 180° rotation
Image Setting	Manual tuning with saturation, sharpness, and contrast
AGC (auto gain control)	2X, 4X, 8X, 16X, 32X, 64X
Minimum Illumination	Color: 0.2 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec), B/W: 0.05 lux, at F1.2 (Gain High, 50 IRE, 1/30 sec)
Electronic Shutter	Auto, Fixed (1/30 to 1/25000 sec)
S/N Ratio	Maximum 50 dB (AGC off; DNR on)
IP Cameras : Interface
10/100BaseT(X) Ports	No
PoE Ports	1 x 10/100BaseT(X), M12 D-coded 4-pin female connector
Digital Input/Output Channels	No
Relay Channels	No
IP Cameras : Audio
Audio Inputs	No
Audio Format	No
Audio Outputs	No
IP Cameras : Video
Video Compression	H.264 (ISO/IEC 14496-10) or MJPEG
Video Output	via Ethernet
Video Streams	3 independent H.264 or MJPEG video streams
Video Viewing	DynaStream™ support for changing the video frame rate automatically, CBR Pro™ for good image quality in limited bandwidth transmissions, 3 privacy mask areas provided, Adjustable image size and quality, Timestamp and text overlay, OSD (On Screen Display) position adjustable, Maximum of 5 simultaneous unicast connections, 50 multicast clients
IP Cameras : Network
Protocols	TCP/IP, IPv4, UDP, HTTP, RTP/RTSP, ARP, UPnP, FTP, TFTP, SMTP, NTP Client, DNS, DDNS, QoS, IGMP v3, ICMP, SNMPv1/v2c/v3, DHCP Opt66/67, HTTPS
IP Cameras : Power Requirements
Input Voltage	-
Input Current	0.35 A @ 48 VDC
Source of Input Power	PoE (IEEE 802.3af)
IP Cameras : Alarms
Intelligent Video	Camera tamper
Video Motion Detection	3 independently configurable areas
Scheduling	Daily repeat timing schedule
Imaging	JPEG snapshots for pre/trigger/post alarm images
Custom Alarms	HTTP event servers for setting customized alarm actions
Email/FTP Messaging	Automatic transfer of stored images via email or FTP as event-triggered actions
Pre-alarm Buffer	12 MB video buffer for JPEG snapshot images
IP Cameras : Security
Password	User level password protection
Filtering	IP address
Encryption	HTTPS
Authentication	No
IP Cameras : General
MTBF	1,598,728 hrs
microSD Slot	No
IP Cameras : Physical Characteristics
Housing	IP66 rain and dust protection, Metal housing, PC dome cover, IK10 vandal-resistant protection
Dimensions	125 x 125 x 120.7 mm (5.6 x 5.6 x 4.8 in)
Weight	810 g (1.79 lb)
Installation	Panel mounting
Operating Temperature	-40 to 70°C (-40 to 158°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Standards and Certifications	EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Freefall: IEC 60068-2-31; Railway Fire Protection: EN 45545-2; Safety: UL 60950-1; Shock: IEC 60068-2-27, IEC 61373, EN 50155; Vibration: IEC 60068-2-64, IEC 61373, EN 50155; Railway: EN 50155 (complies with a portion of EN 50155 specifications); Ingress Protection: IEC 60529, IP66; Salt Spray Test: ASTM-B117; Vandal Resistance: EN 62262, IK10; Telcordia SR332
Altitude	2000 m
IP Cameras : Minimum Viewing System Requirements
Memory Size	1 GB
Operating System	Windows 7 or above
Browser	Internet Explorer 9.x or above
Multimedia	DirectX 9.0c or above
IP Cameras : Software Development
VPort SDK PLUS	Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers
Standard	ONVIF ProfileS
