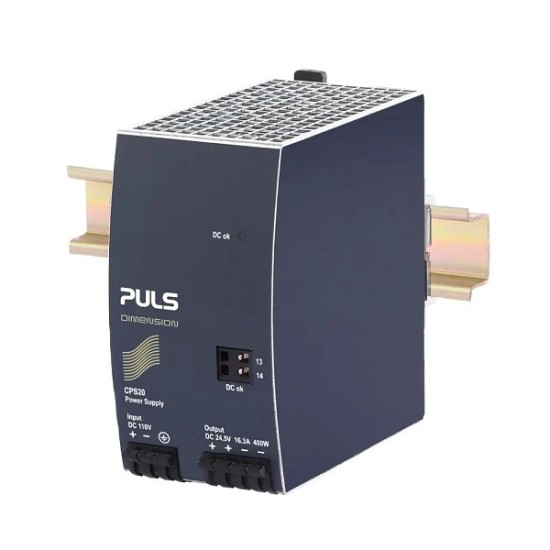

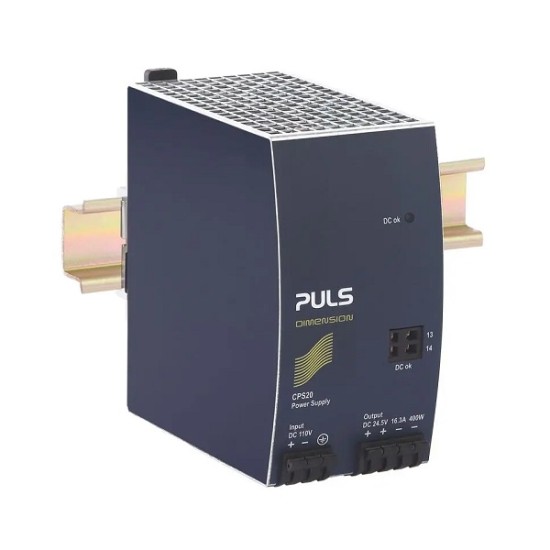

PULS CPS20.241-D1 DC/DC converter
PULS CPS20.241-D1 FEATURES
- DC/DC converter; 88 - 360Vdc Wide-range input
- DC Input Fuse included
- Efficiency up to 94,6%
- 20% Power reserves can be used continuously up to +45°C
- Full output power between -25 and +60°C
- DC-OK Signal, a parallel mode for load sharing
PULS CPS20.241-D1 INTRODUCTION
The Dimension C-Series is are cost-optimized power supply and DC/DC converters without compromising quality, reliability, and performance. The C-Series is part of the DIMENSION power supply family. The most outstanding features of CPS20.241-D1 are the wide DC input range, high efficiency, electronic inrush current limitation, and wide operational temperature range. The small size is achieved by synchronous rectification and further technological design details.
The C-Series includes all the essential basic functions. The devices have a power reserve of 20% included, which may even be used continuously at temperatures up to +45°C. Additionally, the CPS20.241-D1 can deliver about 4 times the nominal output current for 15 ms, which helps to trip fuses on faulty output branches. High immunity to transients and power surges, as well as low electromagnetic emission, a DC-OK relay contact, and a large international approval package for a variety of applications make this unit suitable for nearly every situation.
As an Authorized Distributor of PULS, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy PULS CPS20.241-D1 DC/DC Converter online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the CPS20.481-D1 and CPS20.241-60 models in the PULS DC/DC Converter Series.
PULS CPS20.241-D1 CERTIFICATIONS
