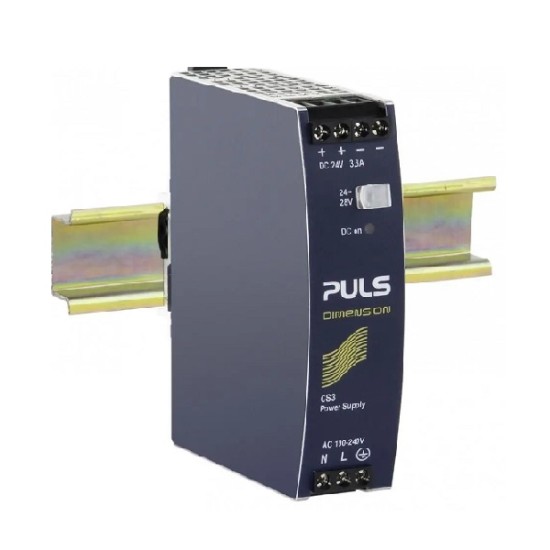

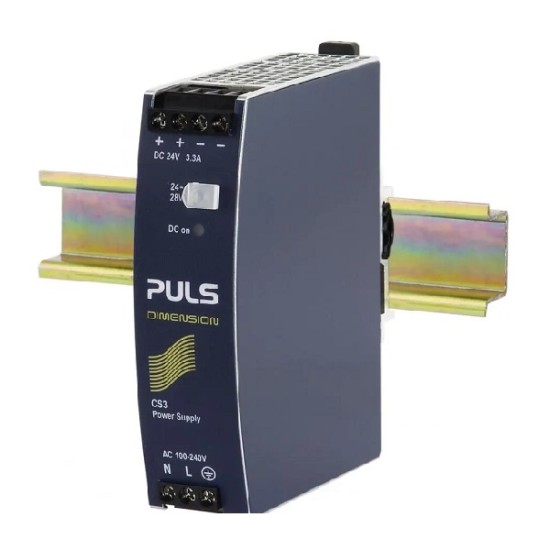

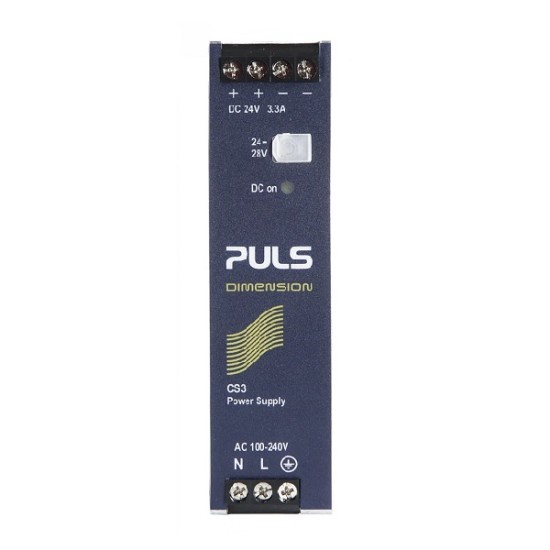

PULS CS3.241 DIN-rail Power Supply
- Model: CS3.241
PULS CS3.241 FEATURES
- 100-240V Wide-range input
- Efficiency up to 89,8%
- NEC Class 2 Listed
- Full output power between -25 and +60°C
PULS CS3.241 INTRODUCTION
The DIMENSION C-Line units are cost-optimized power supplies without compromising quality, reliability, and performance. The C-Line is part of the DIMENSION power supply family, existing alongside the high-featured Q-Line.
The CS3.241 includes all the essential basic functions but also includes important features of small size, high efficiency, wide temperature range, and is NEC Class 2 compliant.
The wide range of input makes worldwide installation and usage very simple. Defects or system failures caused by wrongly set switches cannot occur. High immunity to transients and power surges, as well as low electromagnetic emission and a large international approval package for a variety of applications, make this unit suitable for nearly every situation.
As an Authorized Distributor of PULS, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy PULS CS3.241 DIN-rail Power Supply online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the CS10.244 and CS5.241 models in the PULS DIN-Rail Power Supplies for 1-phase Systems Series.
PULS CS3.241 CERTIFICATIONS

| PULS Power Supply : Input Data | |
| Input Voltage Range | AC: 85 to 300 VAC, DC: 88 to 375 VDC |
| Nominal Input Voltage | AC: 100 to 240 VAC, DC: 110 to 300 VDC |
| Input Frequency Range | 50 to 60 Hz |
| Input Current | AC: At 120 to 230 VAC: 1.23 to 0.68A, DC: At 110 to 300 VDC: 0.81 to 0.29A |
| Power Factor | At 120 to 230 VAC: 0.61 to 0.56 |
| Crest Factor | At 120 to 230 VAC: typ. 2.6 to 3.3 |
| Inrush Current | At 120 to 230 VAC: 23 to 45A peak |
| Input Fuse | Yes |
| PULS Power Supply : Output Data | |
| Output Voltage Range | 24 to 28V |
| Nominal Output Voltage | 24 VDC |
| Output Current | Below +60°C ambient: 3.3 to 2.7A, At +70°C ambient: 2.5 to 2.1A |
| Output Power | 80 W |
| Power Boost | - |
| Output Capacitance | typ. 1450µF |
| PULS Power Supply : Protection Features | |
| Overload Protection | Yes |
| Reverse Input Polarity Protection | No |
| Over-Temperature Protection | Yes |
| Input Transient Protection | Yes: MOV |
| Output Transient Protection | No |
| Short Circuit Protection | Yes |
| Output Overvoltage Protection | Yes: typ. 34 VDC, Max. 39 VDC |
| PULS Power Supply : General | |
| MTBF | SN 29500: 2243000 h |
| Connection Method | Screw terminals |
| AC/DC OK | AC/DC: Yes |
| LED Indicators | 1 green LED |
| Remote ON / OFF Function | - |
| IO-Link Interface | - |
| PULS Power Supply : Physical Characteristics | |
| Operating Temperature | -25 to 70 °C |
| Storage Temperature | -40 to 85°C |
| Relative Humidity Range | 5 to 95% r.h |
| Altitude Range | 0 to 2000m |
| Derating | Between +60°C and +70°C: 1.8W/°C |
| Dimensions | 32 mm x 124 mm x 102 mm |
| Weight | 430 g |
| Mounting Type | DIN rail |
| Housing | Body: Aluminium alloy, Cover: Zinc-plated steel |
| Standards and Certifications | WEEE, REACH, EU, VDMA 24364, ISA-71.04 G3, Marine (ABS), Marine (DNV), Class I Div 2, UL 60950-1, IEC 60950-1, IEC 61010-2-201, UL 508, IEC 60068-2-27, IEC 60068-2-6 |
