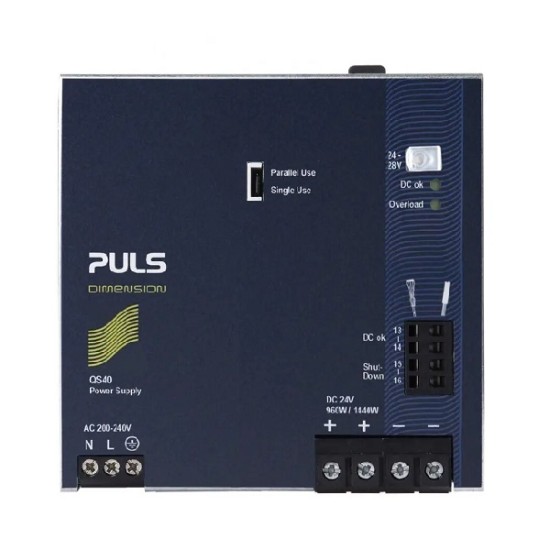

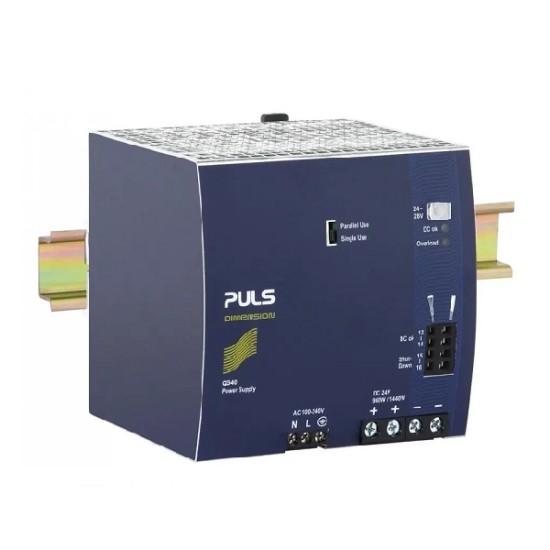

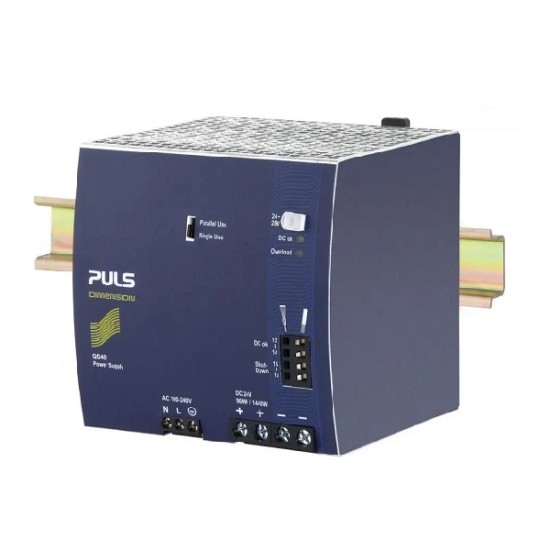

PULS QS40.244 DIN-rail Power Supply
PULS QS40.244 FEATURES
- AC 200-240V Input
- Width of only 125mm, a Weight of only 1.8kg
- 94.6% Full Load and Excellent Partial Load Efficiencies
- 50% BonusPower®, 1440W for up to 4s
- 110A High Peak Current for 25ms for Easy Fuse Tripping
- Safe HiccupPLUS Overload Mode
- Active PFC (Power Factor Correction)
- Negligible Low Input Inrush Current Surge
- Full Power Between -25°C and +60°C
- Current Sharing Feature for Parallel Use
- Internal Data Logging for Troubleshooting Included
- DC-OK Relay Contact
- Shut-down Input
PULS QS40.244 INTRODUCTION
The most outstanding features of the DIMENSION QSeries DIN-rail power supplies are the extremely high efficiencies and the small sizes, which are achieved by synchronous rectification and other technological designs.
The QS40.244 is a device for 200-240V mains voltages. Large power reserves of 150% support the starting of heavy loads such as DC motors or capacitive loads. In many cases, this allows the use of a unit from a lower wattage class, which saves space and money. High immunity to transients and power surges, as well as low electromagnetic emission, makes usage in nearly every environment possible. The integrated output power manager and input fuses, as well as the near-zero input inrush current, make installation and usage simple. Diagnostics are easy due to the DC-OK relay, a green DC-OK LED, and the red overload LED. A large international approval package for a variety of applications makes this unit suitable for nearly every application.
As an Authorized Distributor of PULS, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy PULS QS40.244 DIN-rail Power Supply online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the QS40.241 and QS40.481 models in the PULS DIN-Rail Power Supplies for 1-phase Systems Series.
