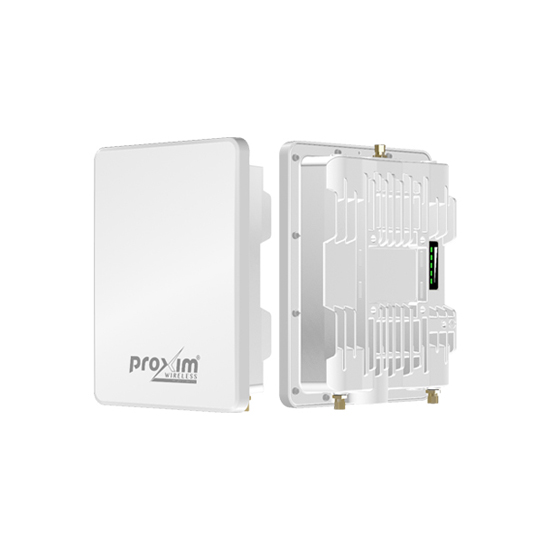

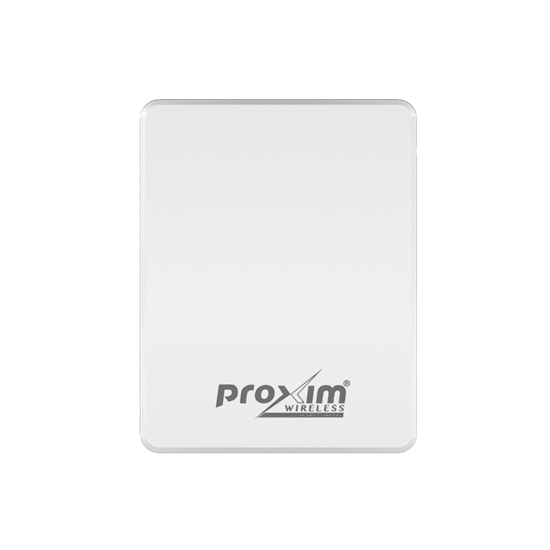

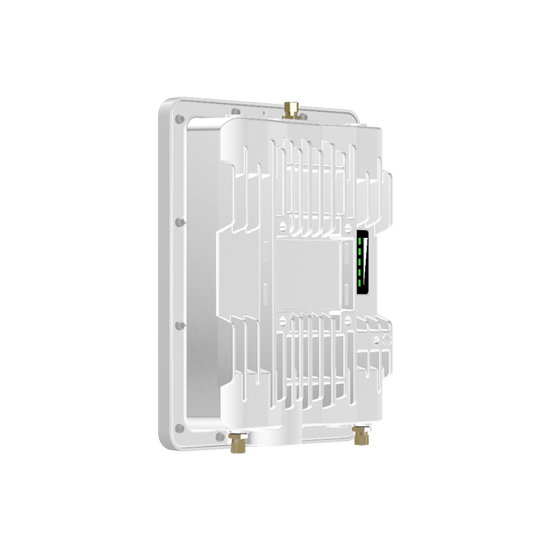

Proxim Stratum SX1-1023C-WD Point-to-Point Radio
- Model: Stratum SX1-1023C-WD
Proxim Stratum SX1-1023C-WD FEATURES
- 5 GHz CPE, 500 Mbps, PN: 906-00026
- Capable of throughput up to 500 Mbps
- Wide Band Radio - 5.150 – 5.850 GHz
- One auto MDI-X RJ45 1 Gbps Ethernet with PoE in
- AES 128-bit encryption is upgradeable to 256-bit
- Full tilt and swivel mounting kit included
- Integrated 2x2 MIMO 15 dBi dual Polarized 35 degree Panel Antenna plus two RP-SMA Connectors
- IP67-rated metal enclosures and operate from -40º to + 60º
Proxim Stratum SX1-1023C-WD INTRODUCTION
The Stratum X1 - 5GHz is a compact MIMO 2x2
point-to-multipoint endpoint or CPE, specifically engineered for the dependable
and efficient transmission of high-resolution video and essential business
data. It serves as an endpoint for the Stratum X3 Multipoint Base Station,
enabling the implementation of cost-effective multipoint networks. With its
compact design and a throughput capacity of up to 500 Mbps, the Stratum X1 is
perfect for applications such as street-level installations in video
surveillance networks.
Advanced Interference Management
To achieve peak performance in challenging RF environments
characterized by dense unlicensed radio usage and significant interference, the
Stratum X1–5GHz utilizes our highly efficient WORP® (Wireless Outdoor Router
Protocol). Proxim ClearConnect®, a crucial component of WORP®, provides
effective interference management.
Security
Over-the-air transmission is secured via 128-bit AES
encryption, with an option to upgrade to 256-bit when ultra-high security is
desired.
Rugged Reliability
Stratum X1 features a robust IP67-rated metal enclosure
designed to provide dependable performance over many years, even in severe
conditions, including strong winds, high salt exposure, and extreme
temperatures.
Proxim WORP®
WORP® is a dynamic, asynchronous protocol designed to
optimize the performance of outdoor wireless point-to-point and
point-to-multipoint wireless links. WORP’s asynchronous nature allows the
uplink and downlink to adapt to network traffic demands dynamically.
As an Authorized Distributor of Proxim, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy Proxim Stratum SX1-1023C-WD Point-to-Point Radio online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the Stratum SX1-2023C-WD model in the Proxim Stratum™ X1 Series.
Proxim Stratum SX1-1023C-WD CERTIFICATIONS
