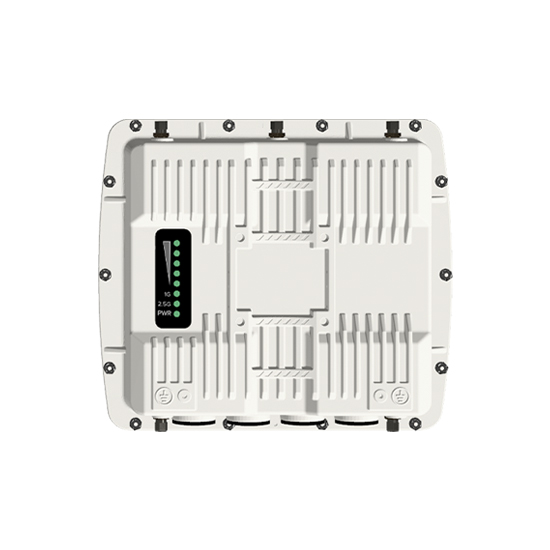

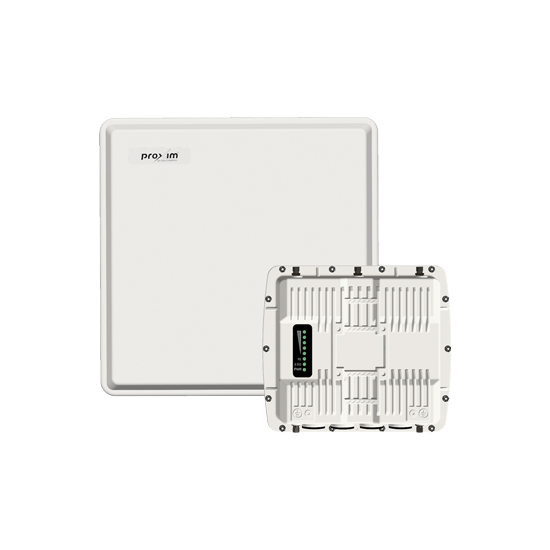

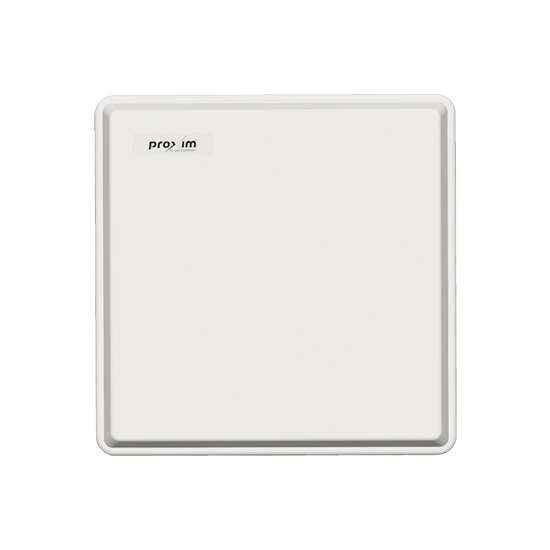

Proxim Stratum SX5-2042A-WD Point-to-Point Radio

Tags: Point-to-Point Radios , Point-to-Point , Radios , Stratum™ X5

Proxim Stratum SX5-2042A-WD Point-to-Point Radio

Model: Stratum SX5-2042A-WD

Proxim

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

Proxim Stratum SX5-2042A-WD FEATURES

Up to 1.58 Gbps Throughput, PN: 906-00010
Wide Band Radio - 5.925 - 6.425 GHz
2.5G Ethernet with optional 10G SFP+ optical transceiver cage
AES 128-bit encryption is upgradeable to 256-bit
Integrated 4x4 MIMO 18 dBi Quad Polarized 19 degree Panel Antenna
IP67-rated metal enclosures and operate from -40º to + 60º
Full tilt and swivel mounting kit included

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

Proxim Stratum SX5-2042A-WD INTRODUCTION

The 6 GHz StratumTM X5 is a high-performance point-to-point wireless radio. The 6 GHz MIMO 4x4 radio enables point-to-point connectivity that offers over 1.5 Gbps throughput, making it perfect for high-capacity backhaul applications.

Integrated Antenna and Connectorized Models

The SX5-2042A includes an integrated quad-polarity panel antenna. Model SX5-2040A is a connectorized unit purpose-built for external quad polarity antennas where specific antenna patterns or gain adjustments are needed.

Advanced Interference Management

Proxim ClearConnectTM combines multiple dynamic technologies and delivers the best interference management solution.

Secure Management Options

Management options include Proxim BlueConnectTM, our Bluetooth-enabled mobile management application; TLS 1.3 web GUI, SSH 2.0 CLI, and SNMP v3 for ProximVision Advanced or other network management solutions.

Rugged Reliability

Stratum X5 uses an IP67-rated metal enclosure to ensure years of reliable service in harsh environments, including high winds, high salt, and temperature extremes.

As an Authorized Distributor of Proxim, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy Proxim Stratum SX5-2042A-WD Point-to-Point Radio online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the Stratum SX5-1042A-WD and Stratum SX5-2040A-WD models in the Proxim Stratum™ X5 Series.

Proxim Stratum SX5-2042A-WD CERTIFICATIONS

Wireless Radio : Interfaces
Ethernet	-
Wired Ethernet	One auto MDI-X RJ45 2.5 Gbps Ethernet with PoE in, One auto MDI-X RJ45 1 Gbps Ethernet with PoE out
Wireless Protocol	WORP® (Wireless Outdoor Router Protocol)
Extension	One SFP+ port for Fiber or Copper 10 Gbps SFP module
Management	-
Wireless Radio : Radio Specifications
Radio Type	point-to-point
MIMO	2×2:2 and 4×4:4
Modulation	OFDM BPSK-QAM4096
Frequency	5.925 - 6.425 GHz (Subject to Country Regulations)
Channel Size	20, 40, 80 and 160 MHz (80+80 MHz via future upgrade)
Data Rate	-
TX Power	Up to 24 dBm (dual chain) or 27 dBm (quad chain)
TX Power Control	0 - 21 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit
Throughput	Dual Stream: 20 MHz: 298 Mbps, 40 MHz: 565 Mbps, 80 MHz: 1095 Mbps; Quad Stream: 20 MHz: 573 Mbps, 40 MHz: 1074 Mbps, 80 MHz: 1787 Mbps
Other	Dynamic Channel Selection (DCS) based on interference detection, Automatic Transmit Power Control (ATPC) with EIRP limit support
Wireless Radio : Antenna
Antenna Type	Integrated 4x4 MIMO 18 dBi Quad Polarized 19 degree Panel Antenna
Beam Width	-
Receive Gain	-
Transmit Gain	-
Wireless Radio : Network
Modes	Bridging, (Routing to be added by future firmware update)
IP Stack	IPv4 and IPv6 simultaneously
Latency	-
Gateway Features	-
VLAN	802.1Q: Management VLAN. Transparent, Access, Trunk and Mixed mode. QinQ double tagging
Wireless Radio : Management
Remote	Telnet and SSH 2.0, Web GUI and TLS 1.3, TFTP, SNMP v1/v2c/v3
SNMP	-
Bluetooth Low Energy	Proxim BlueConnect™
Multi-Language Support	Web Interface available in English, French, Spanish and Chinese
Other	Syslog, SNTP and local time, Spectrum analyzer
Wireless Radio : Security
Encryption	AES 128 (AES 256 via license upgrade)
Authentication	Internal MAC Address Control List, Radius based Authentication (with VLAN and QoS provisioning)
802.1X Support	-
Wireless Radio : Wireless
AP-AP Communications	-
RF Environment	-
Other	-
Wireless Radio : General
MTBF	>450 000 hours, 2-year warranty, ServPak Extended Support available.
Wireless Radio : Power Requirement
Input Power	-
Output Power	-
Power Consumption	14 to 17 W max in MIMO 2x2 mode, 22 to 25 W max in MIMO 4x4 mode
Power Standards	802.3at/bt compliant
Wireless Radio : Physical Characteristics
Temperature	OPERATING -40º to 60ºC (-40º to 140º Fahrenheit), STORAGE -50º to 70ºC (-58º to 158º Fahrenheit)
Humidity	100% relative humidity
IP Rating	IP67
Dimensions Packaged	415 x 415 x 485 mm (16.34 x 16.34 x 16.85 in)
Dimensions Unpackaged	371 x 371 x 97 mm (14.60 x 14.60 x 3.82 in)
Weight (PACKAGED)	13.8 kg (30.42 lbs)
Weight (UNPACKAGED)	3.0 kg (6.61 lbs)
Standards and Certifications	EMC/EMI: CFR47, FCC part 15, Subpart B (class A), ICES-003 issue 7:2020 (class A), EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 301 489-1, EN 301 489-17, EN 301 489-19; IP67
Safety	IEC 62368-1:2018, EN IEC 62368-1:2020+A11:2020, BS EN IEC 62368-1:2020+A11:2020, UL 62368-1:2019, CSA C22.2 No. 62368-1:19
Wind Loading	180 km/h (112.5 mph)
Wireless Radio : Standards and Protocols
Synchronization	-
Wireless Radio : Package Checklist
Package Contents	One Stratum SX5-2040A unit with four RP-SMA connectors or One Stratum SX5-2042A with integrated antenna, Three (SX5-2040A) or One (SX5-2042A) RP-SMA weather proofing caps Two M25 weather proofing cable glands, One power injectors and country specific power cords, One full axis mounting kits, One Grounding kits, One Quick Installation Guides
