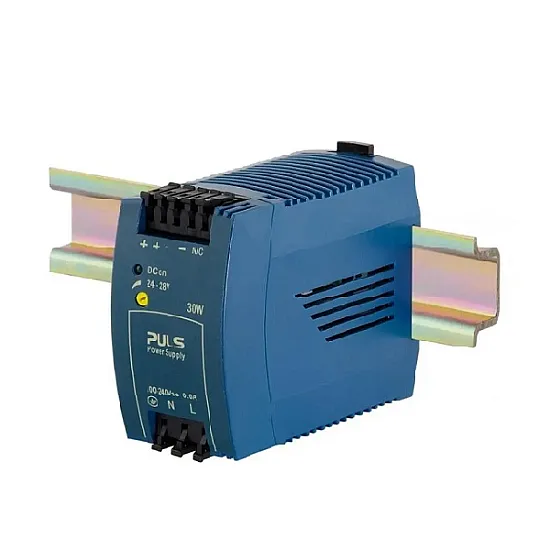

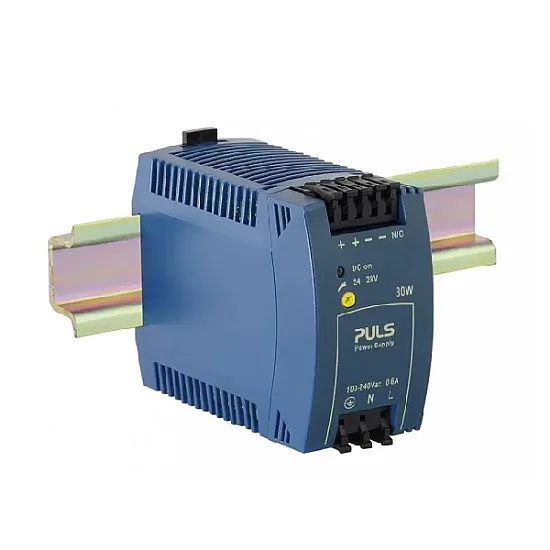

PULS ML30.101 DIN-rail Power Supply
PULS ML30.101 DIN-rail Power Supply
- Model: ML30.101
$0.00
Ex Tax: $0.00
PULS ML30.101 FEATURES
- Mounted and connected within seconds, no tools required
- Worldwide approvals (UL, EN, CSA, CB Scheme) for industry and office/ home use
- Tiny: WxHxD = 45 x 75 x 91mm
- Adjustable output voltage up to DC 5.5V
- 100 - 240V Wide Range Input
- NEC Class 2 Power Supply and Hazardous Location Class I Div. 2 (UL 1604)
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
PULS ML30.101 INTRODUCTION
The ML30.101 is a DIN-rail Power supply with 5 V DC / 25 W Input power.
As an Authorized Distributor of PULS, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy PULS ML30.101 DIN-rail Power Supply online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the ML30.100 and ML30.102 models in the PULS DIN-Rail Power Supplies for 1-phase Systems Series.
PULS ML30.101 CERTIFICATIONS

| PULS Power Supply : Input Data | |
| Input Voltage Range | AC: 85 to 264 VAC, DC: 85 to 370 VDC |
| Nominal Input Voltage | - |
| Input Frequency Range | 47 to 63 Hz |
| Input Current | At 100 VAC: < 0.6A, at 196 VAC: < 0.35A |
| Power Factor | 0.44 |
| Crest Factor | - |
| Inrush Current | 17 A to 35 A |
| Input Fuse | Yes |
| PULS Power Supply : Output Data | |
| Output Voltage Range | 5 to 5.5 V |
| Nominal Output Voltage | 5 VDC |
| Output Current | 5 A at 5 V |
| Output Power | 25 W |
| Power Boost | - |
| Output Capacitance | - |
| PULS Power Supply : Protection Features | |
| Overload Protection | Yes |
| Reverse Input Polarity Protection | No |
| Over-Temperature Protection | No |
| Input Transient Protection | - |
| Output Transient Protection | No |
| Short Circuit Protection | Yes |
| Output Overvoltage Protection | Yes: < 6.5V |
| PULS Power Supply : General | |
| MTBF | SN 29500: 1963000 h |
| Connection Method | Spring clamps |
| AC/DC OK | AC/DC: Yes |
| LED Indicators | 1 green LED |
| Remote ON / OFF Function | - |
| IO-Link Interface | - |
| PULS Power Supply : Physical Characteristics | |
| Operating Temperature | -10° to 70°C |
| Storage Temperature | -25° to 85°C |
| Relative Humidity Range | 5 to 95% r.H |
| Altitude Range | - |
| Derating | Between +60°C and +70°C: 0.5W/°C |
| Dimensions | 45 mm x 75 mm x 91 mm |
| Weight | 230 g |
| Mounting Type | DIN rail |
| Housing | - |
| Standards and Certifications | EU, UL 60950, E137006, UL508 LISTED, E198865, CB Scheme, Class I Div. 2 |
