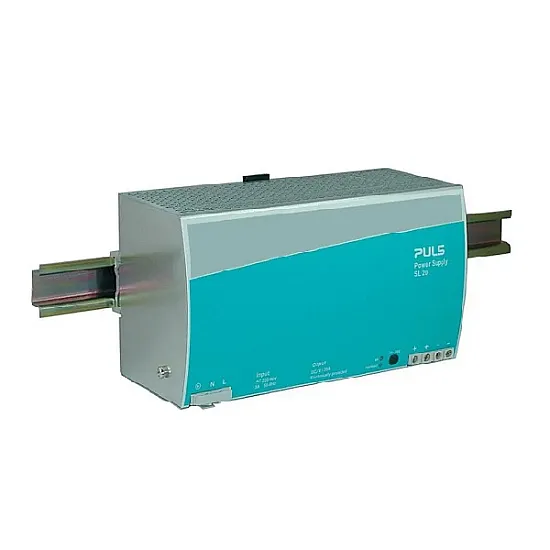

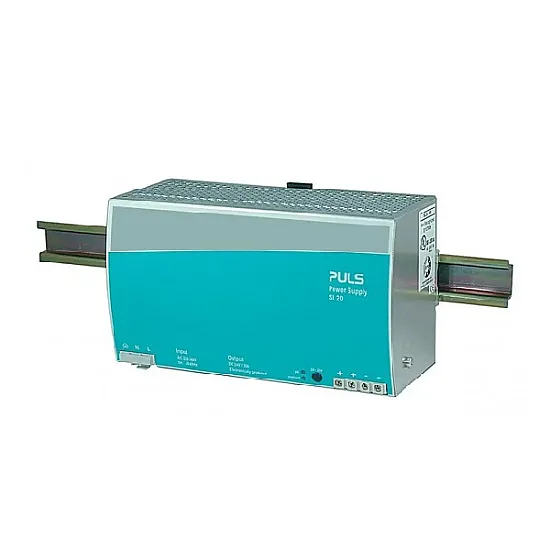

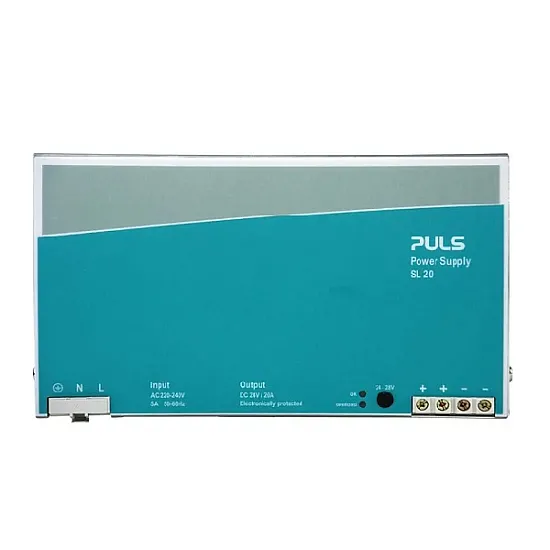

PULS SL20.113 DIN-rail Power Supply

PULS SL20.113 DIN-rail Power Supply
  • Model: SL20.113
$0.00
Ex Tax: $0.00

PULS SL20.113 FEATURES

  • Input: AC 115/230V auto select
  • Output: 48 to 56V / 480W
  • 93% Efficiency
  • Ideal for parallel operation
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

PULS SL20.113 INTRODUCTION

The SL20.113 is a DIN-rail power supply with an AC 115/230V auto-select Input.

As an Authorized Distributor of PULS, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy PULS SL20.113 DIN-rail Power Supply online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the SL20.115 and SL20.100 models in the PULS DIN-rail Power Supplies for 1-phase Systems Series.

PULS SL20.113 CERTIFICATIONS



PULS Power Supply : Input Data
Input Voltage Range AC: 85 to 264 VAC
Nominal Input Voltage -
Input Frequency Range 47 to 63 Hz
Input Current AC: Switch in 115V position: < 12A / switch in 230V position: < 6A
Power Factor -
Crest Factor -
Inrush Current At AC 264V: 18 to 37A
Input Fuse No
PULS Power Supply : Output Data
Output Voltage Range 48 to 56 V
Nominal Output Voltage 48 VDC
Output Current 8.6 A at 56 V, 10 A at 48 V
Output Power 480 W
Power Boost -
Output Capacitance -
PULS Power Supply : Protection Features
Overload Protection Yes
Reverse Input Polarity Protection No
Over-Temperature Protection No
Input Transient Protection No
Output Transient Protection No
Short Circuit Protection Yes
Output Overvoltage Protection Yes: typ. 58.6V
PULS Power Supply : General
MTBF SN 29500: 519000 h
Connection Method Screw terminals
AC/DC OK AC: Yes
LED Indicators 1 green LED
Remote ON / OFF Function -
IO-Link Interface -
PULS Power Supply : Physical Characteristics
Operating Temperature 0° to 70°C
Storage Temperature -25° to 85°C
Relative Humidity Range 5 to 95% r.H
Altitude Range -
Derating Between +60 to +70 °C: typ. 12W/K
Dimensions 220 mm x 124 mm x 102 mm
Weight 1800 g
Mounting Type DIN rail
Housing Sealed metal
Standards and Certifications IEC 60950, UL 508, UL 60950, EMC, EN50178, EN60204
