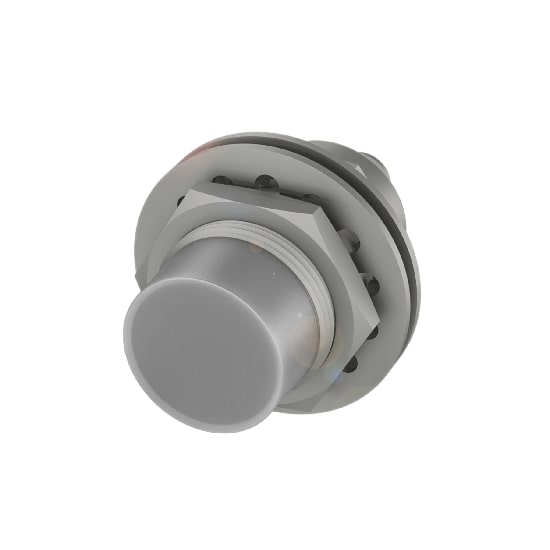

BALLUFF BES02JU MAGNETIC-FIELD-RESISTANT INDUCTIVE SENSOR
BALLUFF BES02JU MAGNETIC-FIELD-RESISTANT INDUCTIVE SENSOR
- Model: BES02JU
$0.00
Ex Tax: $0.00
BALLUFF BES02JU FEATURES
- Connection: M12x1-Male, 4-pin, A-coded
- Operating temperature: -25 to 70 °C
- IP rating: IP67
- Extremely robust
- Magnetic-field-resistant
- Weld-splatter-resistant
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
BALLUFF BES02JU INTRODUCTION
Balluff BES magnetic-field-resistant inductive sensors are ideal for use in areas with strong electromagnetic fields, such as in welding and induction hardening installations. They are resistant to magnetic fields arising from electric welding currents of up to 25 kA.
They are up to the task with their resilient ceramic coating, resistant to metal spatters, slag, and combustion residues. Their extreme robustness reduces maintenance costs, which increases system availability. This enables the highest precision work in every area of use.
As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES02JU MAGNETIC-FIELD-RESISTANT INDUCTIVE SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the BES02K1 and BES02JZ models in the BALLUFF Magnetic-field-resistant Inductive Sensors.
BALLUFF BES02JU CERTIFICATIONS

| Inductive Sensors : Interface | |
| Output Characteristic | PNP normally open (NO) |
| Inductive Sensors : Electrical Connection | |
| Connection | M12x1-Male, 4-pin, A-coded |
| Polarity Reversal Protected | Yes |
| Inductive Sensors : Electrical Data | |
| Protection Class | - |
| Ripple | 15 % |
| Switching Frequency | 100 Hz |
| Operating Voltage Ub | 10 to 30 VDC |
| Current (Ie) | 200 mA |
| Inductive Sensors : Range/Distance | |
| Measuring Range | 15 mm |
| Assured Operating Distance Sa | 12.2 mm |
| Real Switching Distance sr | 15 mm |
| Inductive Sensors : Physical and Environmental Characteristics | |
| Dimension | Ø 30 x 65 mm |
| Weight | - |
| Installation | non-flush |
| Operating Temperature | -25 to 70 °C |
| Housing | Brass, PTFE coated |
| IP Rating | IP67 |
| Tightening Torque | 30 Nm |
| MTTF | 775 a |
| Standards and Approvals | CE, UKCA, WEEE, IEC 60947-5-2 |
