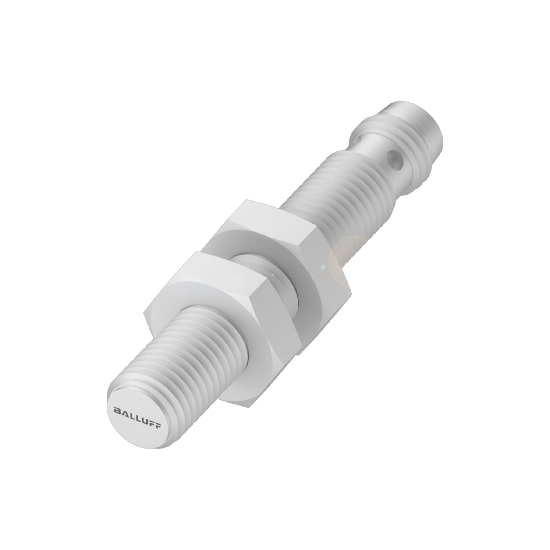

BALLUFF BES02YR INDUCTIVE FACTOR 1/ MAGNETIC-FIELD-RESISTANT/ WELD-IMMUNE SENSOR
BALLUFF BES02YR INDUCTIVE FACTOR 1/ MAGNETIC-FIELD-RESISTANT/ WELD-IMMUNE SENSOR
- Model: BES02YR
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
BALLUFF BES02YR INTRODUCTION
BES inductive factor 1 sensors from Balluff can be used wherever different types of metals must be uniformly identified with high precision. An all-around reliable sensor for recognizing all metals, without a reduction factor at the switching distance: ferrous and non-ferrous metals, steel, brass, aluminum, etc.
Additionally, they are magnetic-field-resistant, making them usable in areas with a strong electromagnetic field, such as welding plants. We also offer variants with PTFE coatings to protect against welding spatter.
As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES02YR INDUCTIVE FACTOR 1/ MAGNETIC-FIELD-RESISTANT/ WELD-IMMUNE SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the BES060C and BES05ZZ models in the BALLUFF Inductive Factor 1 Sensors.
BALLUFF BES02YR CERTIFICATIONS

| Inductive Sensors : Interface | |
| Output Characteristic | PNP normally open (NO) |
| Inductive Sensors : Electrical Connection | |
| Connection | M8x1-Male, 3-pin |
| Polarity Reversal Protected | Yes |
| Inductive Sensors : Electrical Data | |
| Protection Class | - |
| Ripple | 10 % |
| Switching Frequency | 2000 Hz |
| Operating Voltage Ub | 10 to 30 VDC |
| Current (Ie) | 150 mA |
| Inductive Sensors : Range/Distance | |
| Measuring Range | 1.5 mm |
| Assured Operating Distance Sa | 1.2 mm |
| Real Switching Distance sr | 1.5 mm |
| Inductive Sensors : Physical and Environmental Characteristics | |
| Dimension | Ø 8 x 49 mm |
| Weight | - |
| Installation | For flush mounting |
| Operating Temperature | -25 to 70 °C |
| Housing | 1.4301 stainless steel, PTFE coated |
| IP Rating | IP67 |
| Tightening Torque | 10 Nm |
| MTTF | - |
| Standards and Approvals | CE, WEEE, IEC 60947-5-2 |
