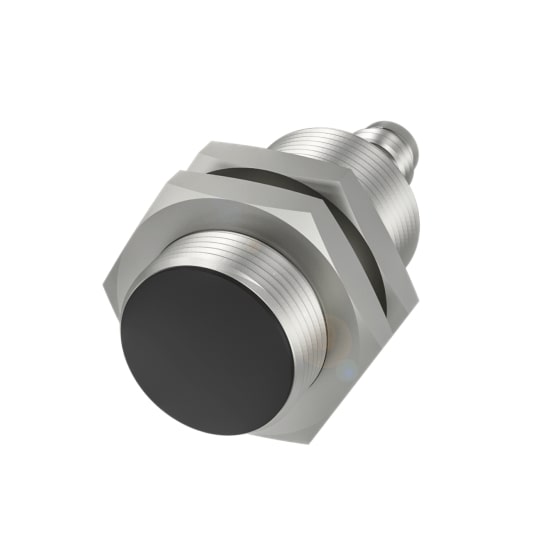

BALLUFF BES030R INDUCTIVE STANDARD SENSOR

BALLUFF BES030R INDUCTIVE STANDARD SENSOR
  • Model: BES030R
$0.00
Ex Tax: $0.00

    BALLUFF BES030R FEATURES

      • Connection: M8x1-Male, 3-pin
      • Operating temperature: -25 to 70 °C
      • IP rating: IP67
      • Shielded and unshielded versions
      • Plug or cable connection
      Over 40 Years in Business
      Over 40 Years in Business
      Successful track record across Canada
      Full Engineering Services
      Full Engineering Services
      A powerhouse to provide consultation, training, and support
      Strong Brand Portfolio
      Strong Brand Portfolio
      Top-notch products from superb global and local suppliers
      Advanced Technologies
      Advanced Technologies
      From legacy and mainstream to advanced Industry 4.0

      BALLUFF BES030R INTRODUCTION

      Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

      The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.


      As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES030R INDUCTIVE STANDARD SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

      You can also find the BES04ZF and BES04UE models in the BALLUFF Inductive Standard Sensors.

      BALLUFF BES030R CERTIFICATIONS



      Inductive Sensors : Interface
      Output Characteristic PNP normally open (NO)
      Inductive Sensors : Electrical Connection
      Connection M8x1-Male, 3-pin
      Polarity Reversal Protected Yes
      Inductive Sensors : Electrical Data
      Protection Class -
      Ripple 15 %
      Switching Frequency 200 Hz
      Operating Voltage Ub 10 to 30 VDC
      Current (Ie) 130 mA
      Inductive Sensors : Range/Distance
      Measuring Range 8 mm
      Assured Operating Distance Sa 6.4 mm
      Real Switching Distance sr 8 mm
      Inductive Sensors : Physical and Environmental Characteristics
      Dimension Ø 18 x 44 mm
      Weight -
      Installation for flush mounting
      Operating Temperature -25 to 70 °C
      Housing Brass, nickel-plated
      IP Rating 1620 a
      Tightening Torque 25 Nm
      MTTF 1620 a
      Standards and Approvals cULus, CE, WEEE, IEC 60947-5-2
