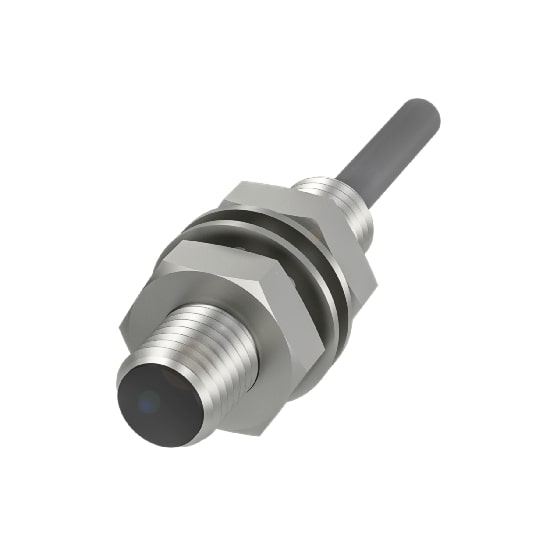

BALLUFF BES034K PRESSURE-RATED INDUCTIVE SENSOR
BALLUFF BES034K PRESSURE-RATED INDUCTIVE SENSOR
- Model: BES034K
$0.00
Ex Tax: $0.00
BALLUFF BES034K FEATURES
- Connection: Cable, 5.00 m, PVC
- Operating temperature: -25 to 70 °C
- IP rating: IP68
- Pressure rating max: 10 bar
- Short and long configurations
- With and without fixed stop
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
BALLUFF BES034K INTRODUCTION
Balluff BHS pressure-rated inductive sensors withstand pressures up to 500 bar. They are perfectly suited for monitoring the position of your hydraulics, such as when controlling the end position of hydraulic cylinders or monitoring valve positions.
Their durability is made possible by media-resistant housing materials and a special sealing process. For your individual applications, we offer a comprehensive range of product configurations with different housing diameters and thread sizes.
As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES034K PRESSURE-RATED INDUCTIVE SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the BES02RJ and BES03H6 models in the BALLUFF Pressure-rated Inductive Sensors.
BALLUFF BES034K CERTIFICATIONS

| Inductive Sensors : Interface | |
| Output Characteristic | PNP normally open (NO) |
| Inductive Sensors : Electrical Connection | |
| Connection | Cable, 5.00 m, PVC |
| Polarity Reversal Protected | Yes |
| Inductive Sensors : Electrical Data | |
| Protection Class | - |
| Ripple | 15 % |
| Switching Frequency | 1500 Hz |
| Operating Voltage Ub | 10 to 30 VDC |
| Current (Ie) | 200 mA |
| Inductive Sensors : Range/Distance | |
| Measuring Range | 1.2 mm |
| Assured Operating Distance Sa | 1 mm |
| Real Switching Distance sr | 1.2 mm |
| Inductive Sensors : Physical and Environmental Characteristics | |
| Dimension | Ø 8 x 30.5 mm |
| Weight | - |
| Installation | for flush mounting |
| Operating Temperature | -25 to 70 °C |
| Housing | Stainless steel |
| IP Rating | IP68 |
| Tightening Torque | 5 Nm ±10 %/10 Nm ±10 % |
| MTTF | 595 a |
| Standards and Approvals | CE, UKCA, WEEE, IEC 60947-5-2 |
