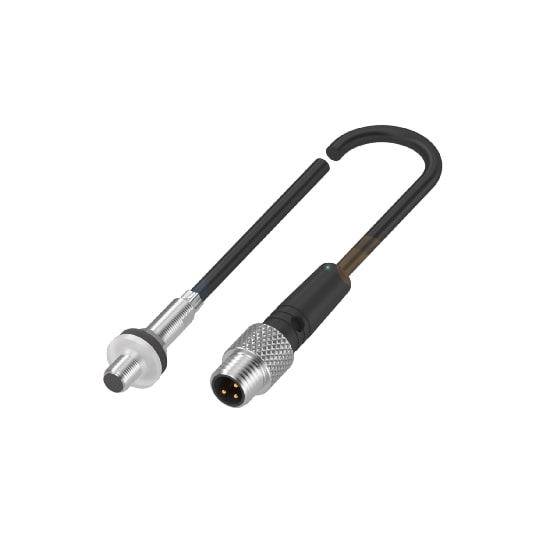

BALLUFF BES03LC PRESSURE-RATED INDUCTIVE SENSOR

BALLUFF BES03LC PRESSURE-RATED INDUCTIVE SENSOR
  • Model: BES03LC
$0.00
Ex Tax: $0.00

    BALLUFF BES03LC FEATURES

    • Connection: M8x1-Male, 3-pin, Cable with connector, 0.30 m, PUR
    • Operating temperature: -25 to 70 °C
    • IP rating: IP67
    • Pressure rating max: 100 bar
    • Short and long configurations
    • With and without a fixed stop


    Over 40 Years in Business
    Over 40 Years in Business
    Successful track record across Canada
    Full Engineering Services
    Full Engineering Services
    A powerhouse to provide consultation, training, and support
    Strong Brand Portfolio
    Strong Brand Portfolio
    Top-notch products from superb global and local suppliers
    Advanced Technologies
    Advanced Technologies
    From legacy and mainstream to advanced Industry 4.0

    BALLUFF BES03LC INTRODUCTION

    Balluff BHS pressure-rated inductive sensors withstand pressures up to 500 bar. They are perfectly suited for monitoring the position of your hydraulics, such as when controlling the end position of hydraulic cylinders or monitoring valve positions.


    Their durability is made possible by media-resistant housing materials and a special sealing process. For your individual applications, we offer a comprehensive range of product configurations with different housing diameters and thread sizes.


    As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES03LC PRESSURE-RATED INDUCTIVE SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

    You can also find the BHS0030 and BHS0033 models in the BALLUFF Pressure-rated Inductive Sensors.

    BALLUFF BES03LC CERTIFICATIONS



    Inductive Sensors : Interface
    Output Characteristic PNP normally open (NO)
    Inductive Sensors : Electrical Connection
    Connection M8x1-Male, 3-pin; Cable with connector, 0.30 m, PUR
    Polarity Reversal Protected Yes
    Inductive Sensors : Electrical Data
    Protection Class -
    Ripple 10 %
    Switching Frequency 3000 Hz
    Operating Voltage Ub 10 to 30 VDC
    Current (Ie) 100 mA
    Inductive Sensors : Range/Distance
    Measuring Range 0.8 mm
    Assured Operating Distance Sa 0.65 mm
    Real Switching Distance sr 0.8 mm
    Inductive Sensors : Physical and Environmental Characteristics
    Dimension Ø 5 x 27 mm
    Weight -
    Installation for flush mounting
    Operating Temperature -25 to 70 °C
    Housing Stainless steel
    IP Rating IP67
    Tightening Torque 1 Nm ±10 %
    MTTF 830 a
    Standards and Approvals CE, UKCA,cULus, WEEE, IEC 60947-5-2
