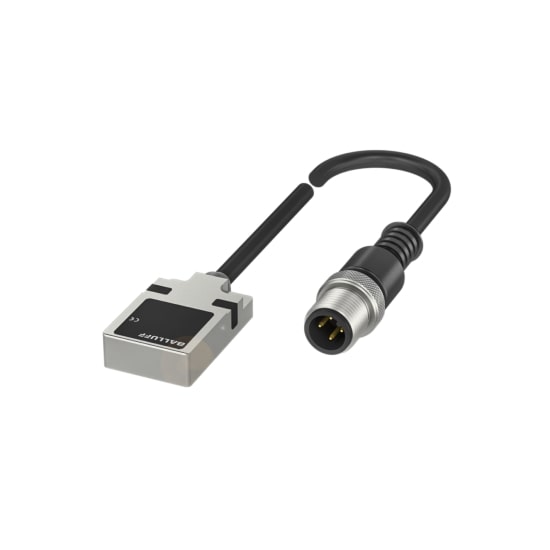

BALLUFF BES03ZU INDUCTIVE STANDARD SENSOR

BALLUFF BES03ZU INDUCTIVE STANDARD SENSOR
  • Model: BES03ZU
$0.00
Ex Tax: $0.00

    BALLUFF BES03ZU FEATURES

      • Connection: M12x1-Male, 4-pin, A-coded, Cable with connector, 1.50 m, PUR
      • Operating temperature: -25 to 70 °C
      • IP rating: IP67
      • Shielded and unshielded versions
      • Plug or cable connection
      Over 40 Years in Business
      Over 40 Years in Business
      Successful track record across Canada
      Full Engineering Services
      Full Engineering Services
      A powerhouse to provide consultation, training, and support
      Strong Brand Portfolio
      Strong Brand Portfolio
      Top-notch products from superb global and local suppliers
      Advanced Technologies
      Advanced Technologies
      From legacy and mainstream to advanced Industry 4.0

      BALLUFF BES03ZU INTRODUCTION

      Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

      The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time even in large quantities.


      As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES03ZU INDUCTIVE STANDARD SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

      You can also find the BES01YN and BES01YM models in the BALLUFF Inductive Standard Sensors.

      BALLUFF BES03ZU CERTIFICATIONS



      Inductive Sensors : Interface
      Output Characteristic PNP normally open/normally closed (NO/NC)
      Inductive Sensors : Electrical Connection
      Connection M12x1-Male, 4-pin, A-coded; Cable with connector, 1.50 m, PUR
      Polarity Reversal Protected Yes
      Inductive Sensors : Electrical Data
      Protection Class -
      Ripple 10 %
      Switching Frequency 150 Hz
      Operating Voltage Ub 10 to 30 VDC
      Current (Ie) 200 mA
      Inductive Sensors : Range/Distance
      Measuring Range 7 mm
      Assured Operating Distance Sa 5.6 mm
      Real Switching Distance sr 7 mm
      Inductive Sensors : Physical and Environmental Characteristics
      Dimension 32 x 20 x 8 mm
      Weight -
      Installation for flush mounting
      Operating Temperature -25 to 70 °C
      Housing Zinc, Die casting
      IP Rating IP67
      Tightening Torque -
      MTTF 675 a
      Standards and Approvals cULus, CE, UKCA, WEEE, IEC 60947-5-2
