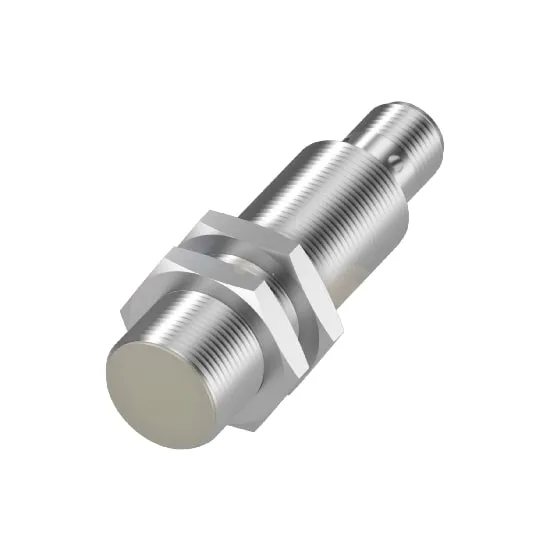

BALLUFF BES0438 HYGIENIC INDUCTIVE SENSOR

BALLUFF BES0438 HYGIENIC INDUCTIVE SENSOR
  • Model: BES0438
$0.00
Ex Tax: $0.00

    BALLUFF BES0438 FEATURES

    • Connection: M12x1-Male, 4-pin, A-coded
    • Operating temperature: -40 to 85 °C
    • IP rating: IP68
    • Trademark: Proxinox®
    • High chemical resistance
    • Extended temperature range available
    • Extended IO-Link functionality: part of the Smart Automation Monitoring System (SAMS)
    Over 40 Years in Business
    Over 40 Years in Business
    Successful track record across Canada
    Full Engineering Services
    Full Engineering Services
    A powerhouse to provide consultation, training, and support
    Strong Brand Portfolio
    Strong Brand Portfolio
    Top-notch products from superb global and local suppliers
    Advanced Technologies
    Advanced Technologies
    From legacy and mainstream to advanced Industry 4.0

    BALLUFF BES0438 INTRODUCTION

    Balluff BES washdown and hygienic inductive sensors are extremely resistant to abrasive and aggressive media. The housing design and choice of materials have been optimized for safe and durable use in packaging, food, and beverage applications. Variants in full PTFE are available for use in extremely aggressive environments.


    As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES0438 HYGIENIC INDUCTIVE SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

    You can also find the BES0432 and BES0437 models in the BALLUFF Hygienic Inductive Sensors.

    BALLUFF BES0438 CERTIFICATIONS



    Inductive Sensors : Interface
    Output Characteristic PNP normally closed (NC)
    Inductive Sensors : Electrical Connection
    Connection M12x1-Male, 4-pin, A-coded
    Polarity Reversal Protected Yes
    Inductive Sensors : Electrical Data
    Protection Class -
    Ripple 15 %
    Switching Frequency 700 Hz
    Operating Voltage Ub 10 to 30 VDC
    Current (Ie) 200 mA
    Inductive Sensors : Range/Distance
    Measuring Range 8 mm
    Assured Operating Distance Sa 6.4 mm
    Real Switching Distance sr 8 mm
    Inductive Sensors : Physical and Environmental Characteristics
    Dimension Ø 18 x 65 mm
    Weight -
    Installation for flush mounting
    Operating Temperature -40 to 85 °C
    Housing 1.4404 stainless steel
    IP Rating IP68; IP69K
    Tightening Torque 45 Nm
    MTTF -
    Standards and Approvals cULus, CE, UKCA, Ecolab, WEEE, IEC 60947-5-2
