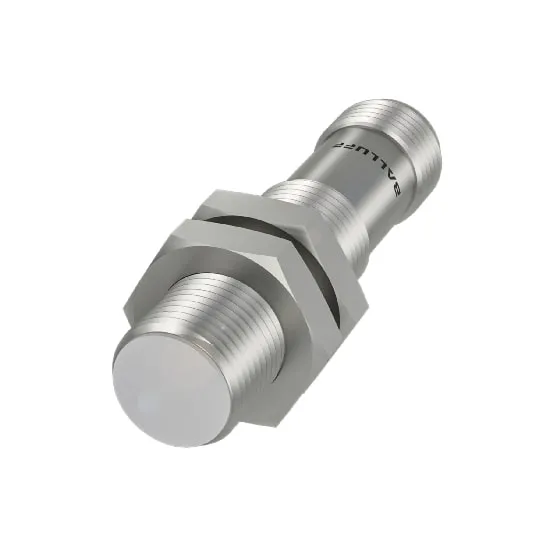

BALLUFF BES0444 HYGIENIC INDUCTIVE SENSOR

BALLUFF BES0444 HYGIENIC INDUCTIVE SENSOR
  • Model: BES0444
$0.00
Ex Tax: $0.00

BALLUFF BES0444 FEATURES

  • Connection: M12x1-Male, 4-pin, A-coded
  • Operating temperature: -40 to 105 °C
  • IP rating: IP68, according to BWN Pr. 27
  • Trademark: Proxinox®
  • High chemical resistance
  • Extended temperature range available
  • Extended IO-Link functionality: part of the Smart Automation Monitoring System (SAMS)
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

BALLUFF BES0444 INTRODUCTION

Balluff BES washdown and hygienic inductive sensors are extremely resistant to abrasive and aggressive media. The housing design and choice of materials have been optimized for safe and durable use in packaging, food, and beverage applications. Variants in full PTFE are available for use in extremely aggressive environments.


As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES0444 HYGIENIC INDUCTIVE SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the BES0443 and BES0434 models in the BALLUFF Hygienic Inductive Sensors.

BALLUFF BES0444 CERTIFICATIONS



Inductive Sensors : Interface
Output Characteristic PNP normally open (NO)
Inductive Sensors : Electrical Connection
Connection M12x1-Male, 4-pin, A-coded
Polarity Reversal Protected Yes
Inductive Sensors : Electrical Data
Protection Class -
Ripple 15 %
Switching Frequency 800 Hz
Operating Voltage Ub 10 to 30 VDC
Current (Ie) 130 mA
Inductive Sensors : Range/Distance
Measuring Range 2 mm
Assured Operating Distance Sa 1.6 mm
Real Switching Distance sr 2 mm
Inductive Sensors : Physical and Environmental Characteristics
Dimension Ø 12 x 50 mm
Weight -
Installation for flush mounting
Operating Temperature -40 to 105 °C
Housing 1.4571 stainless steel
IP Rating IP68, according to BWN Pr. 27; IP69K
Tightening Torque 12 Nm
MTTF 1620 a
Standards and Approvals CE, UKCA, cULus, Ecolab, WEEE, IEC 60947-5-2
