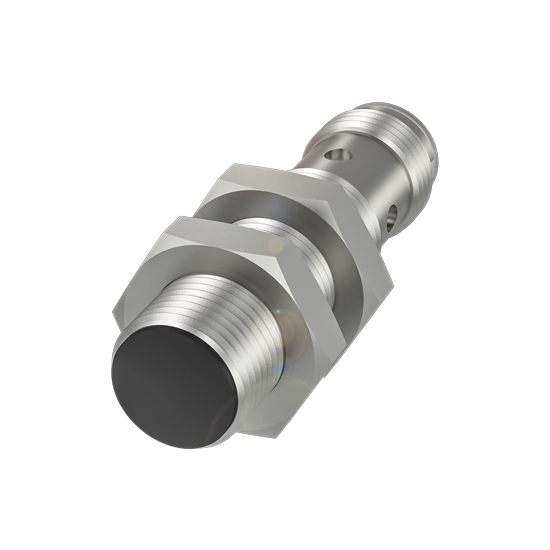

BALLUFF BES0450 Inductive Proximity Sensor
- Model: BES0450
BALLUFF BES0450 INTRODUCTION
Balluff offers a wide range of inductive proximity switches and sensors for various applications and industries. Whether standard inductive proximity sensors, high-pressure sensors, hygienic sensors/washdown compliant, factor 1 sensors, magnetic field resistant by magnetic shielding, weld immune proximity sensors, high temperature sensors, explosion-proof (IECEx, ATEX), or NAMUR sensors, you are guaranteed to find the right product for your individual application in our portfolio, thanks to different housing materials and sealing methods. We offer different designs, housing diameters, and thread sizes for easy integration in a wide range of situations and for optimum solutions even where space is limited.
The technology used worldwide has an optimum
price-performance ratio and can be supplied in short delivery times, even for
large quantities.
Increase the availability of your systems and reduce
maintenance and storage costs at the same time with inductive proximity
switches from Balluff.
You can also find the BES05ET and BES05EP models in the BALLUFF Inductive Standard Sensors.
BALLUFF BES0450 CERTIFICATIONS

| Inductive Sensors : Interface | |
| Output Characteristic | PNP normally open (NO) |
| Inductive Sensors : Electrical Connection | |
| Connection | M12x1-Male, 4-pin, A-coded |
| Polarity Reversal Protected | Supported |
| Inductive Sensors : Electrical Data | |
| Protection Class | II |
| Ripple | 15 % |
| Switching Frequency | 2500 Hz |
| Operating Voltage Ub | 10...30 VDC |
| Current (Ie) | 200 mA |
| Inductive Sensors : Range/Distance | |
| Measuring Range | - |
| Assured Operating Distance Sa | 3 mm |
| Real Switching Distance sr | 4 mm |
| Inductive Sensors : Physical and Environmental Characteristics | |
| Dimension | Ø 12 x 45 mm |
| Weight | - |
| Installation | for flush mounting |
| Operating Temperature | -25...70 °C |
| IP Rating | IP68 |
| Tightening Torque | 10 Nm |
| MTTF | 640 a |
| Standards and Approvals | CE, cULus, WEEE, IEC 60947-5-2 |
