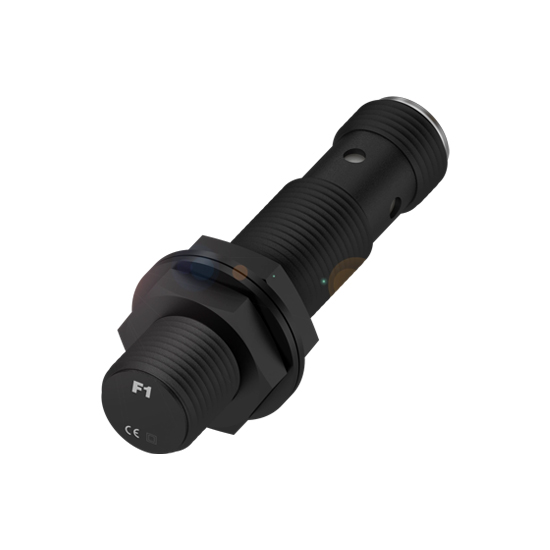

BALLUFF BES0452 Inductive Factor 1 Sensor
BALLUFF BES0452 Inductive Factor 1 Sensor
- Model: BES0452
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
BALLUFF BES0452 INTRODUCTION
The inductive factor 1 sensor family detects all metals with identical switching distance without reduction factor, is magnetic field-resistant for trouble-free operation and convinces with an innovative housing concept with optimal visibility of the displays from almost any angle.
As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES0452 Inductive Factor 1 Sensor online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the BES05AM and BES03YP models in the BALLUFF Inductive Factor 1 Sensors.
BALLUFF BES0452 CERTIFICATIONS

| Inductive Sensors : Interface | |
| Output Characteristic | PNP normally open (NO) |
| Inductive Sensors : Electrical Connection | |
| Connection | M12x1-Male, 3-pin, A-coded |
| Polarity Reversal Protected | Yes |
| Inductive Sensors : Electrical Data | |
| Protection Class | II |
| Ripple | 10 % |
| Switching Frequency | 2000 Hz |
| Operating Voltage Ub | 10...30 VDC |
| Current (Ie) | 200 mA |
| Inductive Sensors : Range/Distance | |
| Measuring Range | 4 mm |
| Assured Operating Distance Sa | 3.2 mm |
| Real Switching Distance sr | 4 mm |
| Inductive Sensors : Physical and Environmental Characteristics | |
| Dimension | Ø 12 x 55 mm |
| Weight | - |
| Installation | For flush mounting |
| Operating Temperature | -25 to 70 °C |
| Housing | Brass, PTFE coated |
| IP Rating | IP67 |
| Tightening Torque | 10 Nm |
| MTTF | 1393 a |
| Standards and Approvals | CE, cULus, WEEE, Basic standard IEC 60947-5-2, EN 60068-2-27 Shock, EN 60068-2-6, Vibration |
