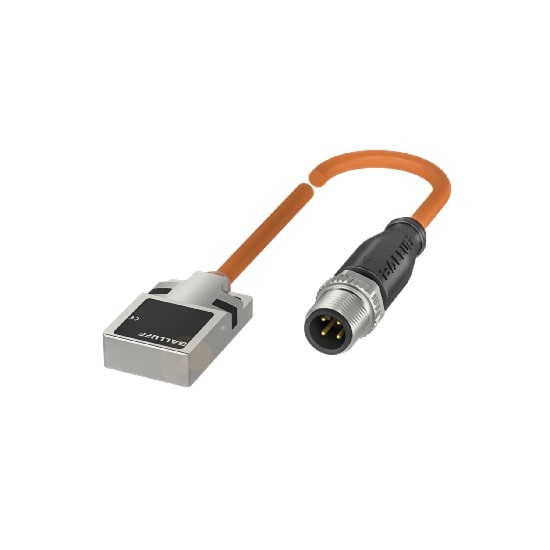

BALLUFF BES048J MAGNETIC-FIELD-RESISTANT INDUCTIVE SENSOR

BALLUFF BES048J MAGNETIC-FIELD-RESISTANT INDUCTIVE SENSOR
  • Model: BES048J
$0.00
Ex Tax: $0.00

    BALLUFF BES048J FEATURES

    • Connection: M12x1-Male, 4-pin, A-coded, Cable with connector, 0.20 m, TPU
    • Operating temperature: -25 to 70 °C
    • IP rating: IP67
    • Extremely robust
    • Magnetic-field-resistant
    • Weld-splatter-resistant


    Over 40 Years in Business
    Over 40 Years in Business
    Successful track record across Canada
    Full Engineering Services
    Full Engineering Services
    A powerhouse to provide consultation, training, and support
    Strong Brand Portfolio
    Strong Brand Portfolio
    Top-notch products from superb global and local suppliers
    Advanced Technologies
    Advanced Technologies
    From legacy and mainstream to advanced Industry 4.0

    BALLUFF BES048J INTRODUCTION

    Balluff BES magnetic-field-resistant inductive sensors are ideal for use in areas with strong electromagnetic fields, such as in welding and induction hardening installations. They are resistant to magnetic fields arising from electric welding currents of up to 25 kA.

    They are up to the task with their resilient ceramic coating, resistant to metal spatters, slag, and combustion residues. Their extreme robustness reduces maintenance costs, which increases system availability. This enables the highest precision work in every area of use.


    As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES048J MAGNETIC-FIELD-RESISTANT INDUCTIVE SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

    You can also find the BES0307 and BES02KA models in the BALLUFF Magnetic-field-resistant Inductive Sensors.

    BALLUFF BES048J CERTIFICATIONS



    Inductive Sensors : Interface
    Output Characteristic PNP normally open (NO)
    Inductive Sensors : Electrical Connection
    Connection M12x1-Male, 4-pin, A-coded; Cable with connector, 0.20 m, TPU
    Polarity Reversal Protected Yes
    Inductive Sensors : Electrical Data
    Protection Class -
    Ripple 10 %
    Switching Frequency 100 Hz
    Operating Voltage Ub 10 to 30 VDC
    Current (Ie) 200 mA
    Inductive Sensors : Range/Distance
    Measuring Range 5 mm
    Assured Operating Distance Sa 4 mm
    Real Switching Distance sr 5 mm
    Inductive Sensors : Physical and Environmental Characteristics
    Dimension 32 x 20 x 8 mm
    Weight -
    Installation for flush mounting
    Operating Temperature -25 to 70 °C
    Housing Zinc, Die casting
    IP Rating IP67
    Tightening Torque -
    MTTF 880 a
    Standards and Approvals CE, UKCA, cULus, WEEE, IEC 60947-5-2
