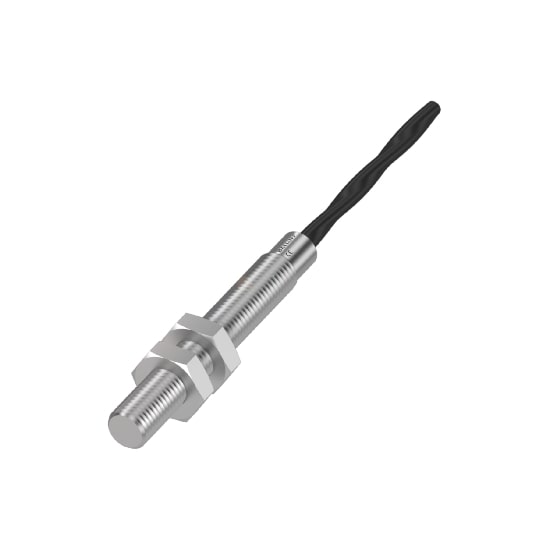

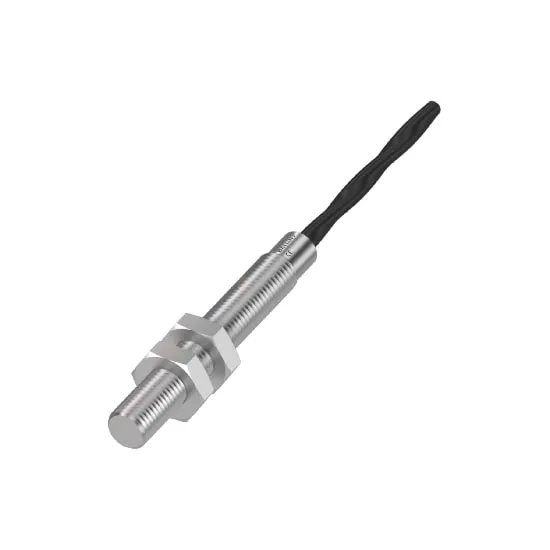

BALLUFF BES05FN TEMPERATURE-RATED INDUCTIVE SENSOR
BALLUFF BES05FN TEMPERATURE-RATED INDUCTIVE SENSOR
- Model: BES05FN
$0.00
Ex Tax: $0.00
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
BALLUFF BES05FN INTRODUCTION
Balluff BES-series temperature-rated inductive sensors can withstand ultra-high temperatures up to 230 °C. Depending on the version, both the housing and cable construction are designed for elevated temperatures. The electronics are fully integrated and can be easily connected to appropriate accessories.
Several form factors allow these sensors to be easily integrated into various situations, even those where space is at a premium. Some versions are also available as high-pressure-rated sensors. This represents a significant expansion of the range of applications.
As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES05FN TEMPERATURE-RATED INDUCTIVE SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the BES04AT and BES02H5 models in the BALLUFF Temperature-rated Inductive Sensors.
BALLUFF BES05FN CERTIFICATIONS

| Inductive Sensors : Interface | |
| Output Characteristic | PNP normally open (NO) |
| Inductive Sensors : Electrical Connection | |
| Connection | Cable, 5.0 m, PTFE |
| Polarity Reversal Protected | Yes |
| Inductive Sensors : Electrical Data | |
| Protection Class | - |
| Ripple | 10 % |
| Switching Frequency | 600 Hz |
| Operating Voltage Ub | 10 to 30 VDC |
| Current (Ie) | 50 mA |
| Inductive Sensors : Range/Distance | |
| Measuring Range | 2 mm |
| Assured Operating Distance Sa | 1.6 mm |
| Real Switching Distance sr | 2 mm |
| Inductive Sensors : Physical and Environmental Characteristics | |
| Dimension | Ø 8 x 60 mm |
| Weight | - |
| Installation | for flush mounting |
| Operating Temperature | 0 to 140 °C |
| Housing | Stainless steel |
| IP Rating | IP50 |
| Tightening Torque | 8 Nm |
| MTTF | 1342 a |
| Standards and Approvals | CE, UKCA, WEEE, IEC 60947-5-2 |
