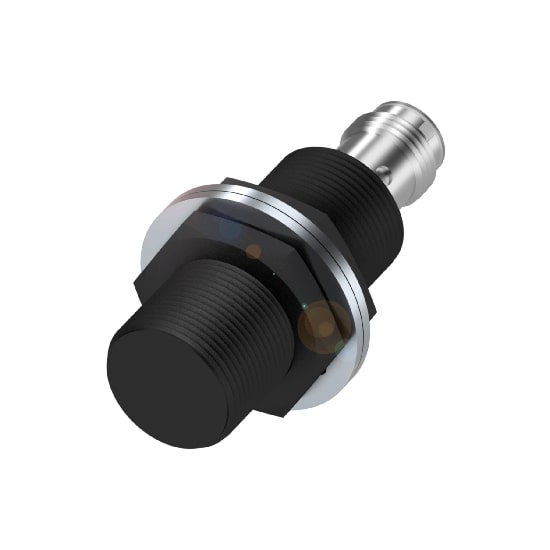

BALLUFF BES05NC INDUCTIVE FACTOR 1/ FULL-METAL/ MAGNETIC-FIELD-RESISTANT/ WELD-IMMUNE SENSOR
- Model: BES05NC
$0.00
Ex Tax: $0.00
BALLUFF BES05NC FEATURES
- Connection: Male, 3-pin
- Operating temperature: -25 to 70 °C
- IP rating: IP68
- Additional features: Factor 1
- Magnetic-field-resistant
- Installation in different metals possible
- High-precision and flexible use
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
BALLUFF BES05NC INTRODUCTION
BES inductive factor 1 sensors from Balluff can be used wherever different types of metals must be uniformly identified with high precision. An all-around reliable sensor for recognizing all metals, without a reduction factor at the switching distance: ferrous and non-ferrous metals, steel, brass, aluminum etc.
Additionally, they are magnetic-field-resistant, making them useable in areas with a strong electromagnetic field – such as welding plants. We also offer variants with PTFE coatings for protection against welding spatter.
As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES05NC INDUCTIVE FACTOR 1/ FULL-METAL/ MAGNETIC-FIELD-RESISTANT/ WELD-IMMUNE SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the BES0608 and BES04AH models in the BALLUFF Inductive Factor 1 Sensors.
BALLUFF BES05NC CERTIFICATIONS

| Inductive Sensors : Interface | |
| Output Characteristic | PNP |
| Inductive Sensors : Electrical Connection | |
| Connection | Male, 3-pin |
| Polarity Reversal Protected | Yes |
| Inductive Sensors : Electrical Data | |
| Protection Class | - |
| Ripple | 15 % |
| Switching Frequency | 110 Hz |
| Operating Voltage Ub | - |
| Current (Ie) | - |
| Inductive Sensors : Range/Distance | |
| Measuring Range | 8 mm |
| Assured Operating Distance Sa | 6.4 mm |
| Real Switching Distance sr | 8 mm |
| Inductive Sensors : Physical and Environmental Characteristics | |
| Dimension | Ø 18 x 56 mm |
| Weight | - |
| Installation | for flush mounting |
| Operating Temperature | -25 to 70 °C |
| Housing | Stainless steel, coated |
| IP Rating | IP68 |
| Tightening Torque | 30 Nm |
| MTTF | 365 a |
| Standards and Approvals | CE, UKCA, cULus, WEEE, IEC 60947-5-2 |
