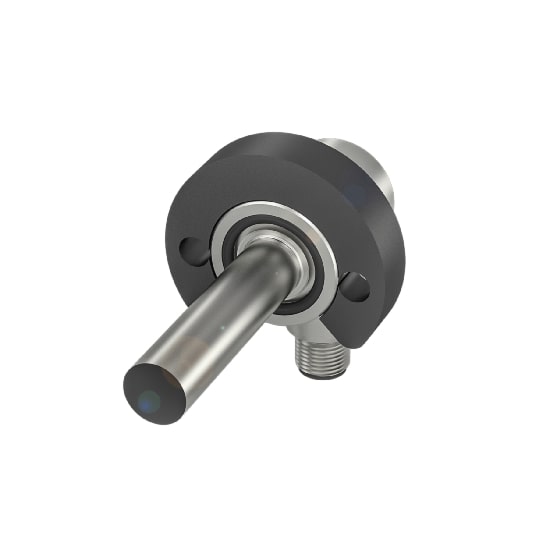

BALLUFF BES05Z5 PRESSURE-RATED INDUCTIVE SENSOR

BALLUFF BES05Z5 PRESSURE-RATED INDUCTIVE SENSOR
  • Model: BES05Z5
$0.00
Ex Tax: $0.00

    BALLUFF BES05Z5 FEATURES

    • Connection: M12x1-Male, 4-pin, A-coded
    • Operating temperature: -25 to 70 °C
    • IP rating: IP67
    • Pressure rating max: 206 bar
    • Short and long configurations
    • With and without fixed stop
    Over 40 Years in Business
    Over 40 Years in Business
    Successful track record across Canada
    Full Engineering Services
    Full Engineering Services
    A powerhouse to provide consultation, training, and support
    Strong Brand Portfolio
    Strong Brand Portfolio
    Top-notch products from superb global and local suppliers
    Advanced Technologies
    Advanced Technologies
    From legacy and mainstream to advanced Industry 4.0

    BALLUFF BES05Z5 INTRODUCTION

    Balluff BHS pressure-rated inductive sensors withstand pressures up to 500 bar. They are perfectly suited for monitoring the position of your hydraulics, such as when controlling the end position of hydraulic cylinders or monitoring valve positions.


    Their durability is made possible by media-resistant housing materials and a special sealing process. For your individual applications, we offer a comprehensive range of product configurations with different housing diameters and thread sizes.


    As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES05Z5 PRESSURE-RATED INDUCTIVE SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

    You can also find the BES05ZJ and BES05Z3 models in the BALLUFF Pressure-rated Inductive Sensors.

    BALLUFF BES05Z5 CERTIFICATIONS



    Inductive Sensors : Interface
    Output Characteristic PNP/NPN normally open (NO)
    Inductive Sensors : Electrical Connection
    Connection M12x1-Male, 4-pin, A-coded
    Polarity Reversal Protected Yes
    Inductive Sensors : Electrical Data
    Protection Class -
    Ripple -
    Switching Frequency 30 Hz
    Operating Voltage Ub 10 to 30 VDC
    Current (Ie) 200 mA
    Inductive Sensors : Range/Distance
    Measuring Range 2 mm
    Assured Operating Distance Sa 1.6 mm
    Real Switching Distance sr 2 mm
    Inductive Sensors : Physical and Environmental Characteristics
    Dimension Ø 12.7 mm x 2.875 ″
    Weight -
    Installation for flush mounting
    Operating Temperature -25 to 70 °C
    Housing Zinc, Aluminium
    IP Rating IP67
    Tightening Torque -
    MTTF 640 a
    Standards and Approvals CE, cULus, UKCA, WEEE
