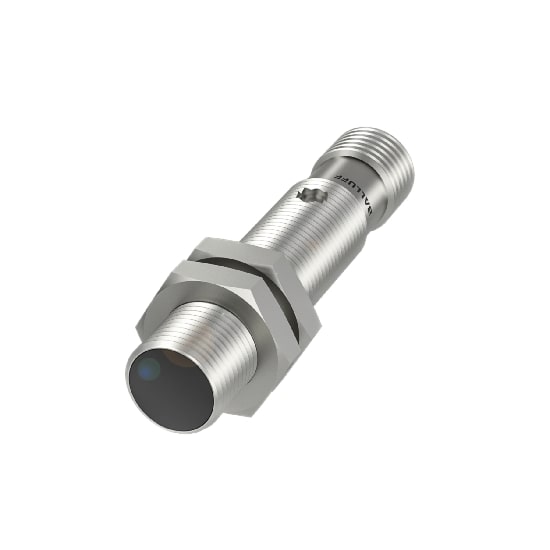

BALLUFF BES05ZL INDUCTIVE STANDARD SENSOR

BALLUFF BES05ZL INDUCTIVE STANDARD SENSOR
  • Model: BES05ZL
$0.00
Ex Tax: $0.00

    BALLUFF BES05ZL FEATURES

    • Connection: 1/2"-20 UNF-2A-Male, 3-pin
    • Operating temperature: -25 to 70 °C
    • IP rating: IP67
    • Scope of delivery: 2x nut M12x1, Toothed washer D13 (2x)
    • Diagnostic function: no
    • Shielded and unshielded versions
    • Plug or cable connection
    Over 40 Years in Business
    Over 40 Years in Business
    Successful track record across Canada
    Full Engineering Services
    Full Engineering Services
    A powerhouse to provide consultation, training, and support
    Strong Brand Portfolio
    Strong Brand Portfolio
    Top-notch products from superb global and local suppliers
    Advanced Technologies
    Advanced Technologies
    From legacy and mainstream to advanced Industry 4.0

    BALLUFF BES05ZL INTRODUCTION

    Balluff BES standard inductive sensors for detecting electrically conductive metallic objects are robust and reliable. With a wide range of over 500 model series, we offer the right inductive sensor for every application.

    The technology, which is in use worldwide, has an optimum price/performance ratio and can also be delivered in a short amount of time, even in large quantities.


    As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BES05ZL INDUCTIVE STANDARD SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

    You can also find the BES00H4 and BES00HC models in the BALLUFF Inductive Standard Sensors.

    BALLUFF BES05ZL CERTIFICATIONS



    Inductive Sensors : Interface
    Output Characteristic Non-polarized normally open (NO)
    Inductive Sensors : Electrical Connection
    Connection 1/2"-20 UNF-2A-Male, 3-pin
    Polarity Reversal Protected Yes
    Inductive Sensors : Electrical Data
    Protection Class -
    Ripple -
    Switching Frequency -
    Operating Voltage Ub 10 to 300 VDC/20 to 265 VAC
    Current (Ie) 130 mA
    Inductive Sensors : Range/Distance
    Measuring Range 4 mm
    Assured Operating Distance Sa -
    Real Switching Distance sr 4 mm
    Inductive Sensors : Physical and Environmental Characteristics
    Dimension Ø 12 x 60 mm
    Weight -
    Installation for flush mounting
    Operating Temperature -25 to 70 °C
    Housing Brass, Chrome-plated
    IP Rating IP67
    Tightening Torque 6 Nm
    MTTF 476 a
    Standards and Approvals CE, cULus, UKCA, WEEE, CCC, IEC 60947-5-2
