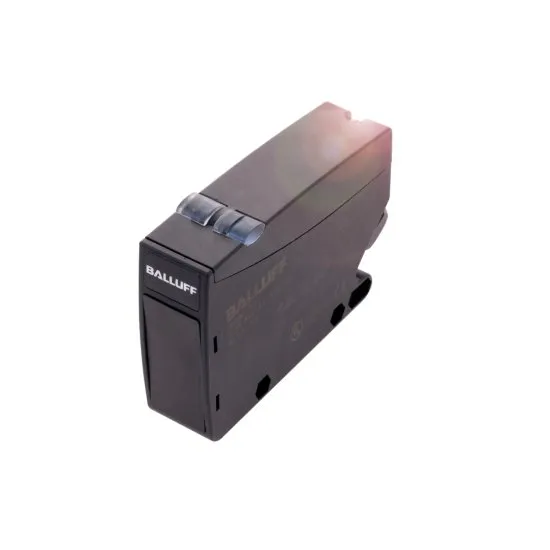

BALLUFF BOS01K4 DIFFUSE AND THROUGH-BEAM/ THROUGH-BEAM SENSOR

BALLUFF BOS01K4 DIFFUSE AND THROUGH-BEAM/ THROUGH-BEAM SENSOR
  • Model: BOS01K4
$0.00
Ex Tax: $0.00

BALLUFF BOS01K4 FEATURES

  • Connection: Screw terminals
  • Operating temperature: -25 to 55 °C
  • IP rating: IP67
  • Series: 64K
  • Principle of optical operation: Through-beam sensor (receiver)
  • Range: 0 to 50 m
  • Part recognition and counting
  • Stack height monitoring
  • Detection through glass
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

BALLUFF BOS01K4 INTRODUCTION

Photoelectric sensors check presence, shape, colour, distance, and thickness - optimised for robotics, automation, assembly, and handling. They are real experts with various strengths: detecting and counting parts, monitoring stack heights, through-glass detection, aligning small parts, detecting marks, fill level detection, and much more!


As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BOS01K4 DIFFUSE AND THROUGH-BEAM/ THROUGH-BEAM SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the BOS00LF and BOS00HY models in the BALLUFF Diffuse and Through-beam Sensors.

BALLUFF BOS01K4 CERTIFICATION



Photoelectric Sensors : Interface
Output Characteristic Relay NO/NC change-over contact
Photoelectric Sensors : Electrical Connection
Connection Screw terminals
Polarity Reversal Protected Yes
Protection against device mix-ups Yes
Short-circuit protection Yes
Photoelectric Sensors : Electrical Data
Protection Class II
Ripple 10 %
Switching Frequency 20 Hz
Operating Voltage Ub 24 to 60 VDC/24 to 240 VAC
Current (Ie) 3000 mA
No-load current Io max. at Ue 25 mA
Load capacitance max. at Ue -
Rated insulation voltage Ui 250 V AC
Rated operating voltage Ue DC 24 V
Utilization category AC-140
Photoelectric Sensors : Range/Distance
Measuring Range 0 to 50 m
Hysteresis H max. (% of Sr) -
Rated operating distance Sn 50 m Adjustable
Repeat accuracy max. (% of Sr) -
Temperature drift max. (% of Sr) -
Photoelectric Sensors : Display/Operation
Function indicator -
Power indicator -
Adjuster Potentiometer 240° (2x), Slide switch (4x)
Setting Time function, Light-on/dark-on, Rated switching distance (Sn)
Photoelectric Sensors : Physical Characteristics
Dimension 25 x 69.7 x 100.4 mm
Weight -
Installation -
Operating Temperature -25 to 55 °C
Housing PBT, GF30
IP Rating IP67
Tightening Torque 1.2 Nm
MTTF 349 a
Standards and Approvals CE, cULus, WEEE, IEC 60947-5-2
