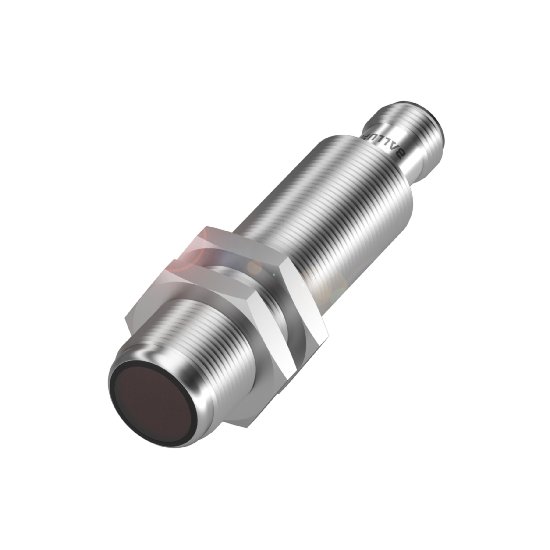

BALLUFF BOS01KL DIFFUSE AND THROUGH-BEAM/ RETROREFLECTIVE SENSOR

BALLUFF BOS01KL DIFFUSE AND THROUGH-BEAM/ RETROREFLECTIVE SENSOR
  • Model: BOS01KL
$0.00
Ex Tax: $0.00

BALLUFF BOS01KL FEATURES

  • Connection: Connector, M12x1-Male, 4-pin
  • Operating temperature: -25 to 70 °C
  • IP rating: IP68/IP67
  • Series: 18E
  • Principle of optical operation: Retroreflective sensor
  • Range: 5 m
  • Part recognition and counting
  • Stack height monitoring
  • Detection through glass
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

BALLUFF BOS01KL INTRODUCTION

Photoelectric sensors check presence, shape, colour, distance, and thickness - optimised for robotics, automation, assembly, and handling. They are real experts with various strengths: detecting and counting parts, monitoring stack heights, through-glass detection, aligning small parts, detecting marks, fill level detection, and much more!


As an Authorised Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy BALLUFF BOS01KL DIFFUSE AND THROUGH-BEAM/ RETROREFLECTIVE SENSOR online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the BOS0178 and BOS017C models in the BALLUFF Diffuse and Through-beam Sensors.

BALLUFF BOS01KL CERTIFICATION



Photoelectric Sensors : Interface
Output Characteristic PNP normally closed (NC), PNP normally open (NO) Pins 4-2
Photoelectric Sensors : Electrical Connection
Connection Connector, M12x1-Male, 4-pin
Polarity Reversal Protected Yes
Protection against device mix-ups Yes
Short-circuit protection Yes
Photoelectric Sensors : Electrical Data
Protection Class -
Ripple 15 %
Switching Frequency 400 Hz
Operating Voltage Ub 10 to 30 VDC
Current (Ie) 100 mA
No-load current Io max. at Ue 30 mA
Load capacitance max. at Ue 0.1 µF
Rated insulation voltage Ui 75 V DC
Rated operating voltage Ue DC 24 V
Utilization category DC -13
Photoelectric Sensors : Range/Distance
Measuring Range 5 m
Hysteresis H max. (% of Sr) -
Rated operating distance Sn 5 m
Repeat accuracy max. (% of Sr) -
Temperature drift max. (% of Sr) 10 %
Photoelectric Sensors : Display/Operation
Function indicator -
Power indicator -
Adjuster No
Setting -
Photoelectric Sensors : Physical Characteristics
Dimension Ø 18 x 75 mm
Weight -
Installation -
Operating Temperature -25 to 70 °C
Housing 1.4404 stainless steel
IP Rating IP68/IP67, IPx9K
Tightening Torque 40 Nm
MTTF 538 a
Standards and Approvals CE, UKCA, cULus, WEEE, Ecolab, IEC 60947-5-2
