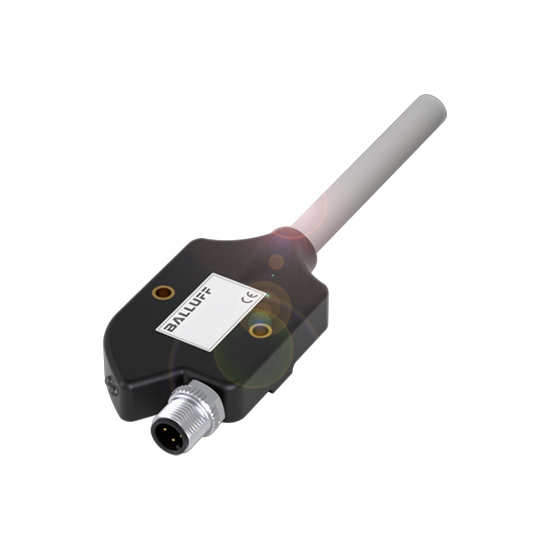

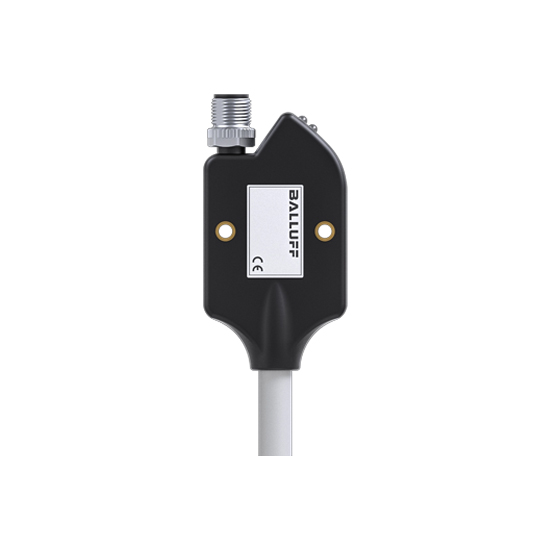

Balluff BNI005M Universal IO-Link Module
- Model: BNI005M
BALLUFF BNI005M FEATURES
- 16 x PNP DIs and DOs
- Interface: IO-Link 1.1
- Operating Voltage UB: 18...30.2 VDC
- Housing Material: PA
- IP Rating: IP54, to open cable end
- Ambient Temperature: -5...55 °C
BALLUFF BNI005M INTRODUCTION
Using the Balluff universal IO-Link interfaces, any device with up to 16 inputs/outputs is open to IO-Link. Use the IO-Link interface to connect pumps, signal lights, control panels, valve terminals, switching units, transfer units, etc., to the control level.
The module offers a fast IO-Link connection through the standard sensor cable and an open-ended cable. You can integrate up to 16 inputs/outputs into the controller environment.
As an Authorized Distributor of BALLUFF, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy Balluff BNI005M Universal IO-Link Module online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find other models in the Balluff Universal IO-Link Interfaces.
BALLUFF BNI005M CERTIFICATIONS

| I/O Modules : Interface | |
| Cycle Time Min. | 4 ms |
| Inputs/Outputs | Digital inputs: 16x PNP, Type 3; Digital outputs: 16x PNP |
| Transfer Rate | COM2 (38.4 kBaud) |
| I/O Modules : Electrical Connection | |
| Connection | Connection (COM 1): M12x1-Male, 5-pin, A-coded; Connection slots: open cable end-Leads; Connection type: 0.50 m, PUR |
| Contact, Surface Protection | - |
| I/O Modules : Electrical Data | |
| Current Consumption | 50 mA |
| Operating Voltage Ub | 18...30.2 VDC |
| Rated Operating Voltage Ue DC | 24 V |
| I/O Modules : Physical/Environmental Features | |
| Dimension | 43.3 x 16.3 x 88.3 mm |
| Weight | 140 g |
| Installation | - |
| Temperature | Ambient temperature: -5...55 °C; Storage temperature: -25...70 °C |
| Housing | PA |
| IP Rating | IP54, to open cable end |
| Standards and Approvals | CE, WEEE |
