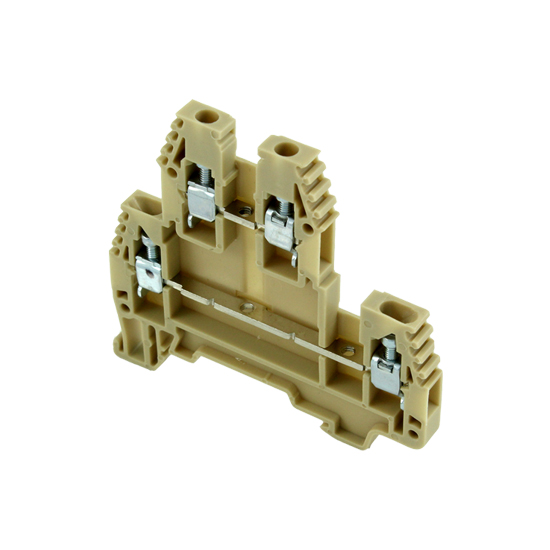

IMO ERD2.5BEIGE Screw Clamp Terminal

IMO ERD2.5BEIGE Screw Clamp Terminal
  • Model: ERD2.5BEIGE
$0.00
Ex Tax: $0.00

IMO ERD2.5BEIGE FEATURES

  • Screw Clamp Terminal
  • 2.5mm², 300V, 20A, Double Deck
  • Color: Beige
  • Pack Size: 100
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

IMO ERD2.5BEIGE INTRODUCTION

The IMO ERD2.5BEIGE is a beige double-level screw clamp terminal block designed for reliable wire connection and distribution in industrial control panels, machinery, and automation systems. Engineered for secure electrical termination in low voltage applications, this modular terminal block helps optimize panel space while supporting organized and efficient wiring layouts. Its durable construction and screw clamp connection design allow dependable performance, easy installation, and simplified maintenance in demanding industrial environments.


As an Authorized Distributor of IMO, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy IMO ERD2.5BEIGE Screw Clamp Terminal online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the ER4BEIGEERD4FBEIGE, and ERPE4P models in the IMO Screw Clamp Terminals.

IMO ERD2.5BEIGE CERTIFICATIONS



DIN Rail Terminals : Electrical Data
Voltage CE (EN 60947-7-1): 500; cRUus: 300; IECEX: 400
Rated Impulse Voltage 6/3
Current CE (EN 60947-7-1): 24; cRUus: 20; IECEX: 21.5
Cross Section CE (EN 60947-7-1): 2.5 mm²; cRUus: AWG 26 - 12
DIN Rail Terminals : Connection Data
Conductor Cross Section (min.-max.) Solid: 0.2 - 4 mm²; Stranded: 0.2 - 4 mm²; 2 Conductors with same cross section, stranded, TWIN ferrules with plastic sleeve: 0.5 - 1.5 mm²
AWG Conductor AWG 24 - 12
Insulation Stripping Length 9 - 10 mm
Torque (min.-max.) 0.4 - 0.6 Nm
Screwdriver 0.6 x 3.5
DIN Rail Terminals : Physical Characteristics
Installation DIN Rail
Material Insulation material group / Gauge pin code according to IEC 60947-1: 1/A3
Standards and Approvals CE (EN 60947-7-1) , cRUus, VDE (IEC 60947-7-1), CSA, IECEX, IP 20
