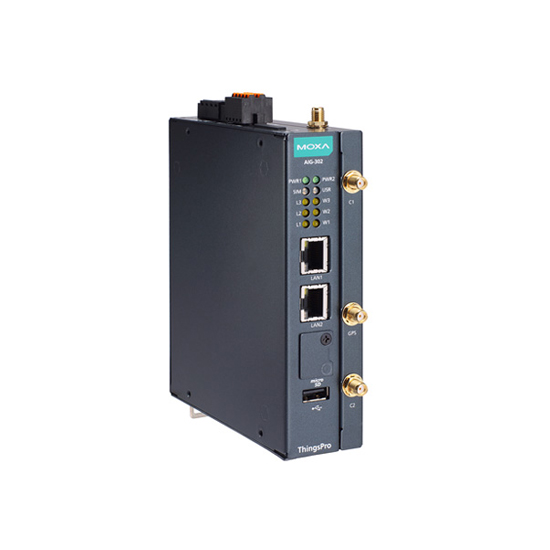

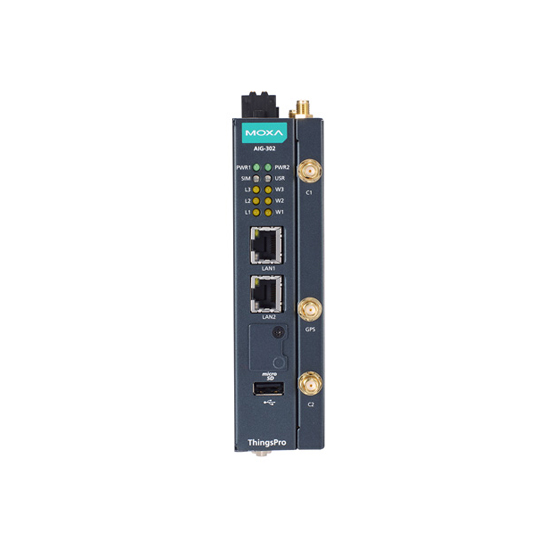

MOXA AIG-302-T-AP-AZU-LX Advanced IIoT Gateway

Tags: Industrial Computing , Arm-Based Computers , Advanced IIoT Gateways , Programmable IIoT Gateways , IIoT Gateways , Computers , Gateways , MOXA AIG-302 Series

MOXA AIG-302-T-AP-AZU-LX Advanced IIoT Gateway

Model: AIG-302-T-AP-AZU-LX

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA AIG-302-T-AP-AZU-LX FEATURES

Supports AP Frequency Bands
CPU: Armv7 Cortex-A7 dual-core 1 GHz
2 x 10/100/1000BaseT(X) Ports (RJ45 connector)
2 x RS-232/422/485 Serial Ports (DB9 male connector)
12 to 48 VDC Redundant dual power inputs
IP30-rated Metal and SECC body design
DIN-rail and Wall mounting
-40 to 70°C operating temperature range

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA AIG-302-T-AP-AZU-LX INTRODUCTION

The AIG-302 Series advanced IIoT gateways connect Modbus RTU/ASCII/TCP devices to platforms such as Azure Cloud and MQTT. The gateways support the Modbus TCP server mode, enabling simultaneous transmission of data to cloud platforms and your local SCADA system.

Boost Edge Computing Capabilities With Azure IoT Edge

AIG-302 supports Azure IoT Edge to bring in a multitude of benefits, including edge computing capabilities, reduced bandwidth costs, flexibility and scalability, seamless integration with Azure services, and ease of management and update. Specifically, the AIG-302 processing data locally not only offers rapid responses and low latency but also effectively reduces network bandwidth usage, thereby cutting costs. Additionally, the modular design of the AIG-302 and Azure IoT Edge support make your system both flexible and easily expandable. At the same time, its seamless integration with Azure cloud services allows you to effortlessly extend cloud capabilities to edge devices.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA AIG-302-T-AP-AZU-LX Advanced IIoT Gateway online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the AIG-302-T-AZU-LX, AIG-302-T-EU-AZU-LX, and AIG-302-T-US-AZU-LX models in the MOXA AIG-302 Series.

MOXA AIG-302-T-AP-AZU-LX CERTIFICATIONS

IIoT Gateways : Computer
CPU	Armv7 Cortex-A7 dual-core 1 GHz
DRAM	2 GB DDR3L
Storage Slot	32 GB eMMC
Operating System	Moxa Industrial Linux (Debian 11, kernel 5.10.x)
Graphics Controller	-
IIoT Gateways : Computer Interface
TPM	TPM v2.0
CAN Ports	1 x CAN 2.0 A/B (DB9 male)
Digital Input/Output Channels	4 x Digital inputs, 4 x Digital outputs (Spring-type Euroblock terminal connector)
USB	1 x USB 2.0 host, type-A connectors
Wi-Fi Antenna	RP-SMA x 2
Cellular Antenna	SMA x 2
GPS Antenna	SMA x 1
Expansion Slots	mPCIe slots x 1
SIM Slot	2 Nano slots
Buttons	Reset button, Reset to factory default
IIoT Gateways : Ethernet Interface
Ethernet Ports	2 x 10/100/1000BaseT(X) Ports (RJ45 connector)
Magnetic Isolation Protection	1.5 kV (built-in)
IIoT Gateways : Serial Interface
Number of Ports	2 x RS-232/422/485 Ports (DB9 male connector)
Console Port	1 x 4-pin header DB9 female
Baudrate	300 bps to 921.6 kbps
Data Bits	7, 8
Flow Control	ADDC® (automatic data direction control) for RS-485, RTS/CTS, XON/XOFF
Parity	None, Even, Odd, Space, Mark
Isolation	No
Stop Bits	1, 2
Serial Signals	RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND; RS-422: Tx+, Tx-, Rx+, Rx-, GND; RS-485-2w: Data+, Data-, GND
IIoT Gateways : Industrial Protocols
Protocols	Ethernet: Modbus TCP Client/Server, Generic MQTT, Azure IoT Device, Azure IoT Edge; Serial: Modbus RTU/ASCII Master; CAN: CAN 2.0A, CAN 2.0B; Azure: MQTT, MQTT over WebSockets, AMQP, AMQP over WebSockets
IIoT Gateways : Cellular Interface
Cellular Standards	LTE Cat. 4
Band Options (US)	-
Band Options (EU)	-
Band Option (APAC)	LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 28 (700 MHz), UMTS/HSPA 850 MHz / 900 MHz / 2100 MHz
IIoT Gateways : GPS Interface
Receiver Types	GPS/GLONASS/BeiDou/Galileo/QZSS
Accuracy	2.0 m
Acquisition	-147 dBm
Sensitivity	Cold starts: -145 dBm, Tracking: -160 dBm
IIoT Gateways : LED Indicators
System	Power x 2, User x 1, SIM card indicator x 1
LAN	2 per port (10/100/1000 Mbps)
Serial	-
Wireless Signal Strength	Cellular/Wi-Fi x 6
IIoT Gateways : Power Parameters
Input Voltage	12 to 48 VDC (Redundant dual powe inputs)
Power Connector	4-pin terminal block
Power Consumption	12 W
Input Current	1 A @ 12 VDC
IIoT Gateways : Physical Characteristics
Housing	SECC, Metal
Installation	DIN-rail mounting, Wall mounting (with optional kit)
Ambient Relative Humidity	5 to 95% (non-condensing)
Dimensions	141.5 x 120 x 39 mm (5.7 x 4.72 x 1.54 in)
Operating Temperature	-40 to 70°C (-40 to 158°F)
Weight	750 g (1.65 lb)
MTBF	1,403,998
Storage Temperature	-40 to 85°C (-40 to 185°F)
Standards and Certifications	EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Safety: UL 62368-1, EN 62368-1; Radio: NCC, KC, RCM; Carrier Approvals: AT&T, Verizon, PTCRB; RED EN 301 489-1/19/52, EN 301 908-1, EN 303 41, EN 62311; Green Product: RoHS, CRoHS, WEEE; Hazardous Locations Class: I Division 2, ATEX; IP30; Telcordia (Bellcore) Standard TR/SR
