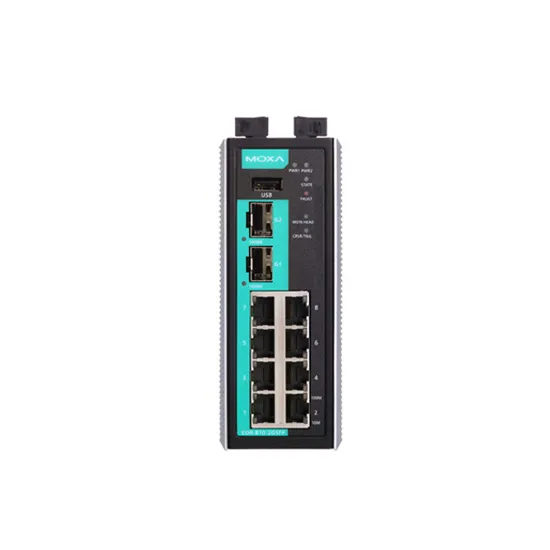

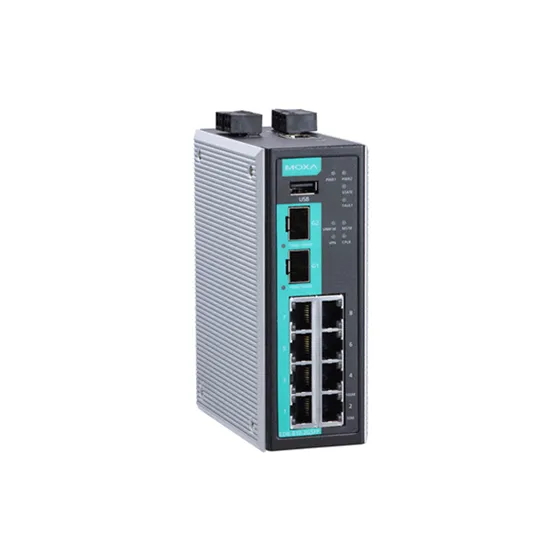

MOXA EDR-810-VPN-2GSFP-T Industrial Secure Router

MOXA EDR-810-VPN-2GSFP-T Industrial Secure Router
  • Model: EDR-810-VPN-2GSFP-T
$0.00
Ex Tax: $0.00

MOXA EDR-810-VPN-2GSFP-T FEATURES

  • 8 x 10/100BaseT(X) Ports (RJ45 connector)
  • 2 x 100/1000BaseSFP Slots
  • Secure remote access tunnel with VPN
  • DIN-rail and Wall mounting
  • Metal body design
  • 12 to 48 VDC input power range
  • -40 to 75°C operating temperature range


Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA EDR-810-VPN-2GSFP-T INTRODUCTION

The Moxa EDR-810-VPN-2GSFP-T is a powerhouse of Industrial Network Infrastructure, serving as an elite choice within the Secure Routers and Industrial Secure Routers categories. This all-in-one industrial secure router is critical for maintaining uptime and data integrity in the most demanding sectors, including Railway Transportation, Road Transportation, Oil and Gas, and Marine. It is meticulously engineered with 8 10/100BaseT(X) RJ45 ports and 2 100/1000Base SFP slots, providing high-speed uplink flexibility and network redundancy. What truly sets this model apart is its integrated Firewall, NAT, and VPN capabilities, allowing for secure remote access and segmented network protection without sacrificing performance. Whether installed via DIN-rail mounting or Wall mounting, this robust device thrives in extreme climates thanks to its wide -40 to 75°C (-40 to 167°F) operating temperature. For those seeking to fortify their edge connectivity with a solution that balances high-density switching with ironclad security, the Moxa EDR-810-VPN-2GSFP-T datasheet details exactly why this is a non-negotiable asset for your mission-critical deployment.


As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA EDR-810-VPN-2GSFP-T Industrial Secure Router online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the EDR-810-2GSFPEDR-810-2GSFP-T, and EDR-810-VPN-2GSFP models in the MOXA EDR-810 Series.

MOXA EDR-810-VPN-2GSFP-T CERTIFICATIONS

Unrivaled reliability is further evidenced by the extensive list of certifications that the EDR-810-VPN-2GSFP-T carries, ensuring it meets the rigorous demands of specialized industries. This router complies with global Safety, EMS, EMC, and EMI standards, while boasting ATEX hazardous locations certification for explosive environments and DNV maritime approval for seafaring vessels. Its resilience is further proven by NEMA TS2 compliance for traffic control and EN 50121-4 for railway trackside applications, alongside strict testing for shock, freefall, and vibration. Most importantly, it is built with modern industrial cybersecurity frameworks in mind, providing a hardened defense against evolving digital threats. By integrating a device that is globally certified for both physical and cyber resilience, you are not just buying a router; you are securing the future of your industrial operations with a proven, multi-certified champion of connectivity.



Router : Interface
Ethernet Ports 8 x 10/100BaseT(X) Ports (RJ45 connector) , 2 x 100/1000BaseSFP Slots
Serial Ports 1 x Console Port: RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1)
Input/Output Channels 1 x Digital Input Channels (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA)
Alarm Contact Channels Resistive load: 1 A @ 24 VDC
Router : Software Specifications
Management Back Pressure Flow Control, DDNS, DHCP Server/Client, Web Console (HTTP/HTTPS), LLDP, QoS/CoS/ToS, SNMPv1/v2c/v3, Telnet, TFTP
Routing Redundancy VARP
Security HTTPS/SSL, SSH, IPsec, OpenVPN (client and server), UDP and TCP Tunnel mode (routing) and TAP mode (bridge), L2TP (server), RADIUS, L2TP (server), RADIUS
Time Management NTP Server/Client, SNTP
Encryption IPsec VPN: DES, 3DES, AES-128, AES-192, AES-256; OpenVPN: AES-128/192/256 CBC, Blowfish CBC, DES CBC, DES-EDE3 CBC
Authentication IPsec VPN: MD5 and SHA (SHA-256), RSA (key size: 1024-bit, 2048-bit), X.509 v3 certificate; OpenVPN: User password by MD5 and SHA1
Router : General
Supported Protocols IPsec, L2TP (server), PPTP (client); Redundancy: RSTP, STP, Turbo Ring v2
MTBF 981,954 hrs
Router : LED Interface
LED Indicators STATE, PWR1, PWR2, FAULT, 10/100/1000M
Router : Power Requirements
Input Voltage 12 to 48 VDC
Input Current 0.706 A @ 12 VDC, 0.353 A @ 24 VDC, 0.187 A @ 48 VDC
Operating Voltage -
Overload Current Protection -
Reverse Polarity Protection Supported
Power Connector Removable terminal block
Router : Physical Characteristics
Housing Metal
Dimensions 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight 830 g (2.10 lb)
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: UL 508; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 2; Maritime: DNV; Traffic Control: NEMA TS2; Railway: EN 50121-4; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; Industrial Cybersecurity: IEC 61162-460; Telcordia (Bellcore), GB
