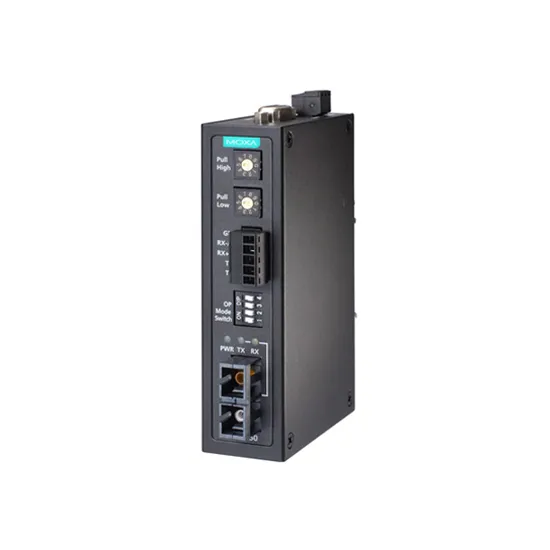

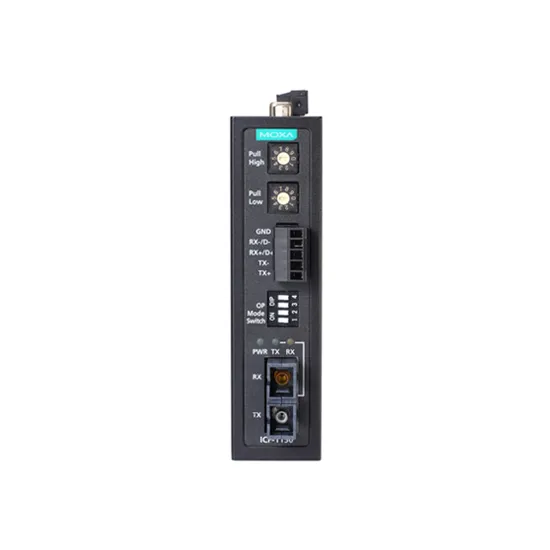

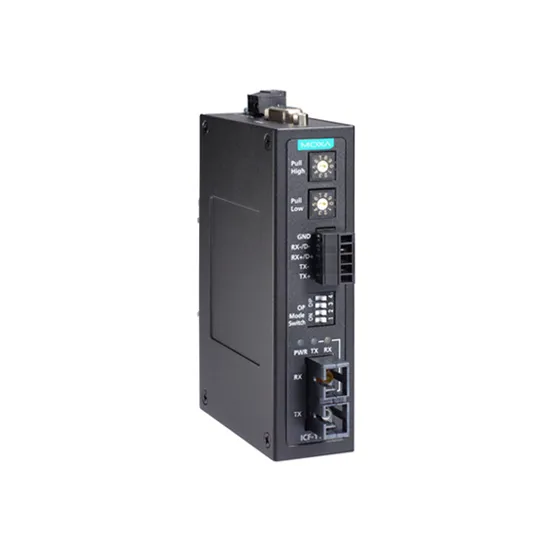

MOXA ICF-1150-M-SC-T Serial to Fiber Converter

MOXA ICF-1150-M-SC-T Serial to Fiber Converter
  • Model: ICF-1150-M-SC-T
Ex Tax: $314.00
Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

The ICF-1150 serial-to-fiber converters transfer RS-232/RS-422/RS-485 signals to optical fiber ports to enhance the transmission distance. When an ICF-1150 device receives data from any serial port, it sends the data through the optical fiber ports. These products not only support single-mode and multi-mode fiber for different transmission distances, but models with isolation protection are also available to enhance noise immunity. The ICF1150 products feature Three-Way Communication and a Rotary Switch for setting the pull high/low resistor for onsite installation.




  • 1 x RS-232/422/485 Serial port and 1 x 100Mbps F(x) multi-mode port with SC connector
  • 12 to 48 VDC input power
  • Metal body
  • -40 to 85°C operating temperature
converter : Converter specifications
Data transfer speed 0.05Kbps to 921.6Kbps
Maximum data transmission distance 40Km on the fiber
Minimum output power converter -5dBm
Sensitivity to receiving information -20dBm
Wavelength 850nm
converter : Power Requirements
Maximum power consumption -
Power Consumption (Output Adapter) 12V DC, 0.127A to 48V DC
Power Input Plugin ( Redundant ) No
converter : Standards and protocols
Point-to-point topology Half-duplex or full-duplex
Ring topology Half-duplex
RS-232 Signals TxD, RxD, GND
RS-422 Signals TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w Signals Data+, Data-, GND
converter : Interface
10/100Mb RJ45 (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
10/100/1000Mb (Gigabit) POE Ports No
100Mb Fiber optic multi mode (Megabit) Ports Yes : 1 SC Port
10/100/1000Mb RJ45 (Gigabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
Number of 10/100Mb PoE port No
Serial port Yes : 2 RS-232/422/485 Ports
Other ports No
converter : General
Fan / Fanless No
MTBF 792,085 hour
Require cable diameter 50/125μm, 62.5/125μm
converter : Physical Characteristics
Dimensions 30.3x70x115mm
Housing Metal
Installation Din-rail
Isolation No
Operating Temperature -40 to 85 ° C
Operation Humidity 5% to %95 non-condensing
Protection against excessive consumption Yes: 1.1A
Protection against reverse flow Yes
Standards and Certifications Safety: UL 508; Hazardous Location: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX, Zone 2 EEx nC IIC, IECEx; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class B; EMS: EN 61000-4-2 (ESD): Contact: 8 kV; Air: 15 kV, EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m, EN 61000-4-4 (EFT): Power: 4 kV; Signal: 2 kV, EN 61000-4-5 (Surge): Power: 4 kV; Signal: 0.5 kV, EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m, EN 61000-4-8 (PFMF); Green Product: RoHS, CRoHS, WEEE; Freefall: IEC 60068-2-32; Water and Dust Proof: IP30
Storage Temperature -40 to 85 ° C
Weight 0.33Kg
Storage Humidity -
converter : LED Indicators
LED Per Port No
Power Yes
converter : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
