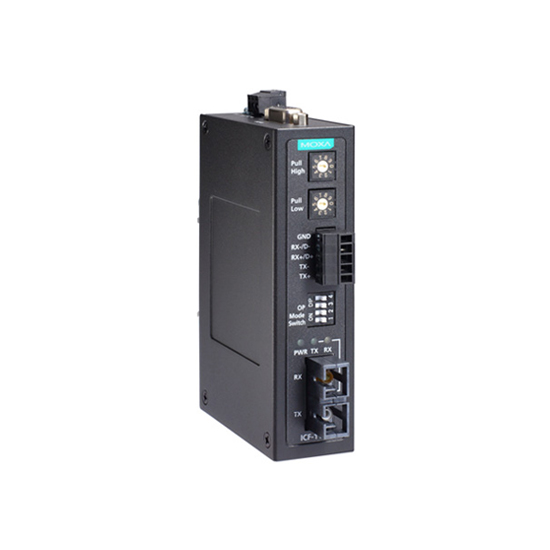

MOXA ICF-1150-M-SC-T Serial to Fiber Converter

MOXA ICF-1150-M-SC-T Serial to Fiber Converter
  • Model: ICF-1150-M-SC-T
$0.00
Ex Tax: $0.00

MOXA ICF-1150-M-SC-T FEATURES

  • 1 x RS-232/422/485 Serial port (DB9-F, TB)
  • 1 x 100BaseFX Port (Multi-mode SC connector)
  • 5 KM Typical data transmission distance on fiber
  • 12 to 48 VDC input power range
  • IP30-rated Metal body design
  • DIN-rail mounting
  • -40 to 85°C operating temperature range


Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA ICF-1150-M-SC-T INTRODUCTION

The ICF-1150 serial-to-fiber converters transfer RS-232/RS-422/RS-485 signals to optical fiber ports to enhance the transmission distance. When an ICF-1150 device receives data from any serial port, it sends the data through the optical fiber ports. These products not only support single-mode and multi-mode fiber for different transmission distances, but models with isolation protection are also available to enhance noise immunity. The ICF1150 products feature three-way communication and a rotating switch to set the pull high/low resistor for onsite installation.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA ICF-1150-M-SC-T Serial to Fiber Converter online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the ICF-1150-M-SCICF-1150-M-ST-T, and ICF-1150-S-ST-T models in the MOXA ICF-1150 Series.

MOXA ICF-1150-M-SC-T CERTIFICATIONS



Converter : Interface
100Mb Fiber optic single mode (Megabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports Yes : 1 SC Port
USB No
Serial port Yes : 1 x RS-232/422/485 Serial port (DB9 female connector for RS-232 interface, 5-pin terminal block connector for RS-422/485 interface)
Other ports No
Isolation No
Converter : Converter specifications
Maximum data transmission distance 5 Km on the fiber
Minimum output power converter -5dBm
Sensitivity to receiving information -20dBm
Wavelength 850nm
Data transfer speed ( Baudrate ) 50 bps to 921.6 kbps (supports non-standard baudrates)
Require cable diameter 50/125 μm, 800 MHz, 62.5/125 μm, 500 MHz
Flow Control ADDC (automatic data direction control) for RS-485
Protocols -
Converter : Serial Signals
RS-232 Signals TxD, RxD, GND
RS-422 Signals Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Signals Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Signals Data+, Data-, GND
Converter : Power Requirements
Power Consumption (Output Adapter) 264 mA @ 12 to 48 VDC
Power Input Plugin ( Redundant ) No
Overload Current Protection Supported
Reverse Polarity Protection No
Input Voltage 12 to 48 VDC
Input Current 264 mA @ 12 to 48 VDC
Connector Terminal block
Converter : General
Fan / Fanless Fanless
MTBF 792,085 hrs
Converter : Physical Characteristics
Dimensions 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in)
Housing Metal
Installation DIN-rail mounting
Operating Temperature -40 to 85°C (-40 to 185°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: UL 61010-2-201; Vibration: IEC 60068-2-6; Hazardous Locations: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2; IP30; Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 330 g (0.73 lb)
Converter : LED Indicators
LED Per Port No
Power Yes
