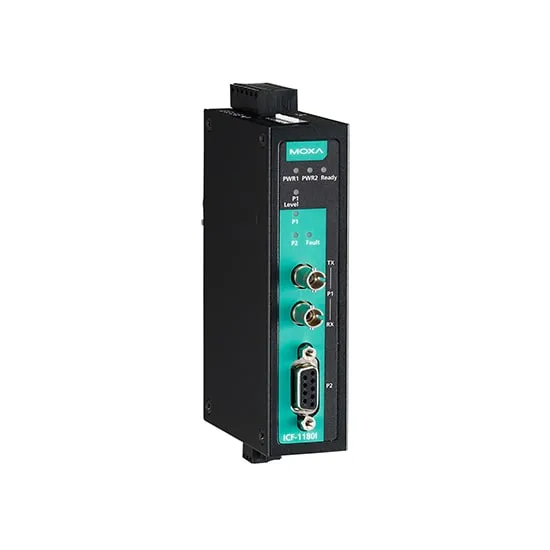

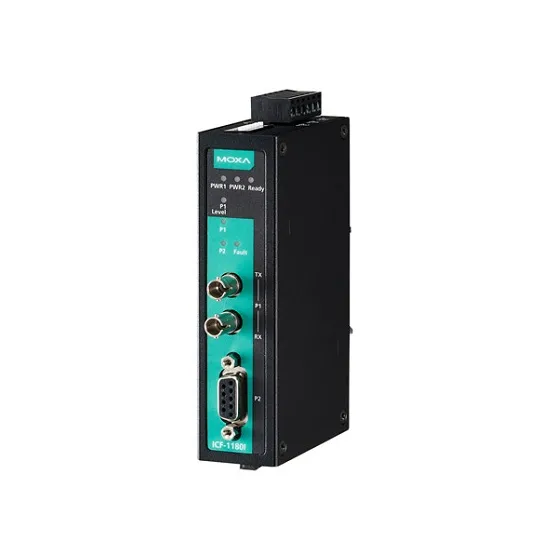

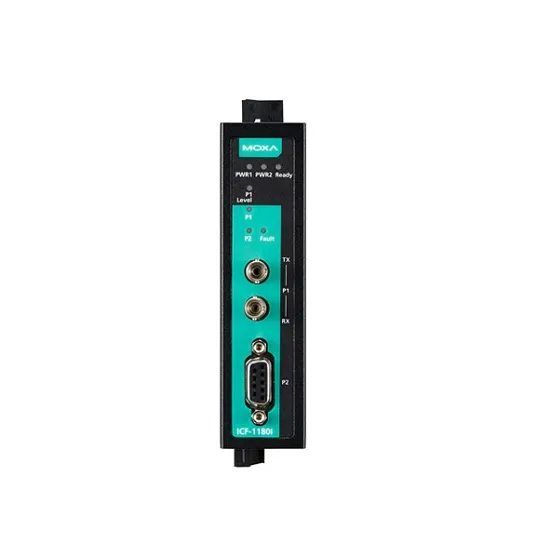

MOXA ICF-1180I-M-ST-T PROFIBUS to Fiber Converter

MOXA ICF-1180I-M-ST-T PROFIBUS to Fiber Converter
  • Model: ICF-1180I-M-ST-T
$0.00
Ex Tax: $0.00

MOXA ICF-1180I-M-ST-T FEATURES

  • 1 x PROFIBUS Port (DB9 female connector)
  • 1 x 100BaseFX Port (Multi-mode ST connector)
  • 4 KM Typical data transmission distance on fiber
  • 12 to 48 VDC Redundant dual power inputs
  • IP30-rated Metal body design
  • DIN-rail and Wall mounting
  • -40 to 75°C operating temperature range


Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA ICF-1180I-M-ST-T INTRODUCTION

The ICF-1180I industrial PROFIBUS-to-fiber converters are used to convert PROFIBUS signals from copper to optical fiber. The converters are used to extend serial transmission up to 4 km (multi-mode fiber) or up to 45 km (single-mode fiber). The ICF-1180I provides 2 kV isolation protection for the PROFIBUS system and dual power inputs to ensure that your PROFIBUS device will perform uninterrupted.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA ICF-1180I-M-ST-T PROFIBUS to Fiber Converter online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the ICF-1180I-S-ST-T, ICF-1180I-M-ST, and ICF-1180I-S-ST models in the MOXA ICF-1180I Series.

MOXA ICF-1180I-M-ST-T CERTIFICATIONS



Converter : Interface
100Mb Fiber optic single mode (Megabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports Yes : 1 ST Port
USB No
Serial port No
Other ports Yes : 1 x PROFIBUS Port (DB9 female connector)
Isolation Yes : 2 kV (built-in)
Converter : Converter specifications
Maximum data transmission distance 4 KM on the fiber
Minimum output power converter -14 dBm
Sensitivity to receiving information -28 dBm
Wavelength 820 nm
Data transfer speed ( Baudrate ) 9600 bps to 12 Mbps
Require cable diameter -
Flow Control -
Protocols PROFIBUS DP
Converter : Serial Signals
RS-232 Signals -
RS-422 Signals -
RS-485-4w Signals -
RS-485-2w Signals -
Converter : Power Requirements
Power Consumption (Output Adapter) 269 mA @ 12 to 48 VDC
Power Input Plugin ( Redundant ) Yes
Overload Current Protection Supported
Reverse Polarity Protection No
Input Voltage 12 to 48 VDC
Input Current 269 mA @ 12 to 48 VDC
Connector Terminal block (for DC models)
Converter : General
Fan / Fanless Fanless
MTBF 1,722,769 hrs
Converter : Physical Characteristics
Dimensions 30.3 x 115 x 70 mm (1.19 x 4.53 x 2.76 in)
Housing Metal
Installation DIN-rail mounting (with optional kit), Wall mounting
Operating Temperature -40 to 75°C (-40 to 167°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 0.5 kV, IEC 61000-4-5 Surge: Power: 0.5 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Hazardous Locations: ATEX Class I Division 2 IECEx; Maritime: DNV; Safety: IEC 60950-1, UL 508; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
Storage Temperature -
Weight 180 g (0.39 lb)
Converter : LED Indicators
LED Per Port Yes
Power Yes
