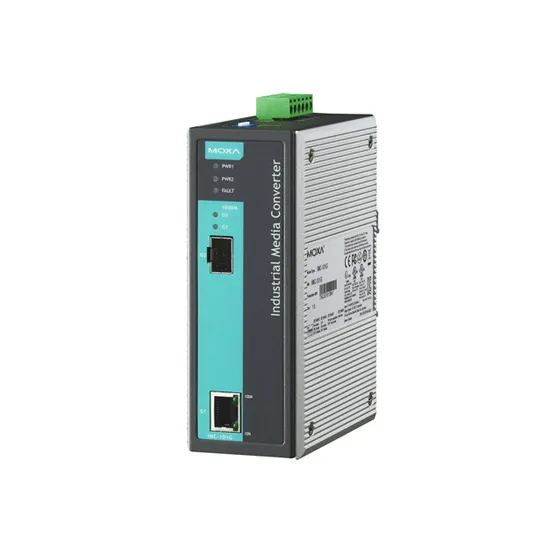

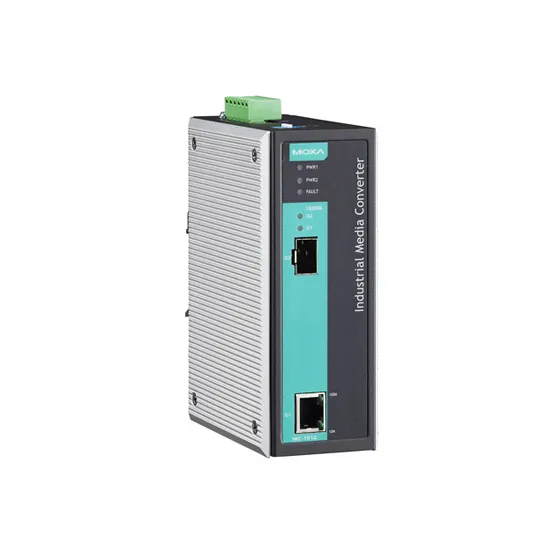

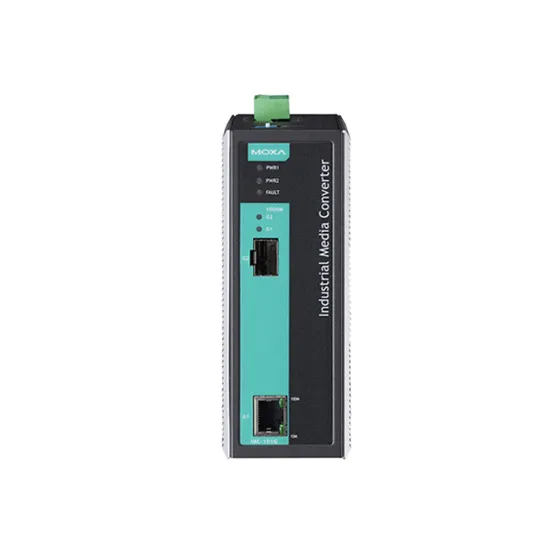

MOXA IMC-101G-T Ethernet to Fiber Converter

Tags: Industrial Network Infrastructure , Industrial Ethernet and Cybersecurity , Ethernet Media Converters , Ethernet to Fiber Converters , Media Converters , Converters , MOXA IMC-101G Series

MOXA IMC-101G-T Ethernet to Fiber Converter

Model: IMC-101G-T

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA IMC-101G-T FEATURES

1 x 10/100/1000BaseT(X) Ports (RJ45 connector)
1 x 1000 Mbps fiber (SFP connector)
12 to 45 VDC input power range
Metal body design
DIN-rail mounting
-40 to 75°C operating temperature

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA IMC-101G-T INTRODUCTION

The IMC-101G industrial Gigabit modular media converters are designed to provide reliable and stable 10/100/1000BaseT(X)-to-1000BaseSX/LX/LHX/ZX media conversion in harsh industrial environments. The IMC-101G’s industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101G converter comes with a relay output warning alarm to help prevent damage and loss. All IMC-101G models are subjected to a 100% burn-in test, and they support a standard operating temperature range of 0 to 60°C and an extended operating temperature range of -40 to 75°C.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA IMC-101G-T Ethernet to Fiber Converter online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the IMC-101G-IEX, IMC-101G, and IMC-101G models in the M OXA IMC-101G Series.

MOXA IMC-101G-T CERTIFICATIONS

Ethernet to Fiber : Interface
10/100Mb RJ45 (Megabit) Ports	No
10/100/1000Mb RJ45 (Gigabit) Ports	Yes : 1 Port
10/100Mb (Megabit) POE Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
100Mb Fiber optic single mode (Megabit) Ports	No
1000Mb Fiber optic single mode (Gigabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	Yes : 1 Port
M12 port	No
Alert Output	Yes
Magnetic Isolation Protection	1.5 kV (built-in)
Ethernet to Fiber : Standards and protocols
Protocols and work standards	-
Ethernet to Fiber : General
Maximum cable length for data transfer	-
MTBF	500,540 hour
Ethernet to Fiber : Power Requirements
Input Voltage	12 to 45 VDC
Input Current	200 mA @ 12 to 45 VDC
Type of power input	Terminal block
Overload Current Protection	Supported
Power Consumption	200 mA @ 12 to 45 VDC
Ethernet to Fiber : Physical Characteristics
Standards and Certifications	EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: EN 60950-1, UL 60950-1; Vibration: IEC 60068-2-6; Hazardous Locations: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2, IECEx; Telcordia (Bellcore), GB
Housing	Metal
Dimensions	53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight	630 g (1.39 lb)
Operating Temperature	-40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operation Humidity	5 to 95% (non-condensing)
Installation	DIN-rail mounting
