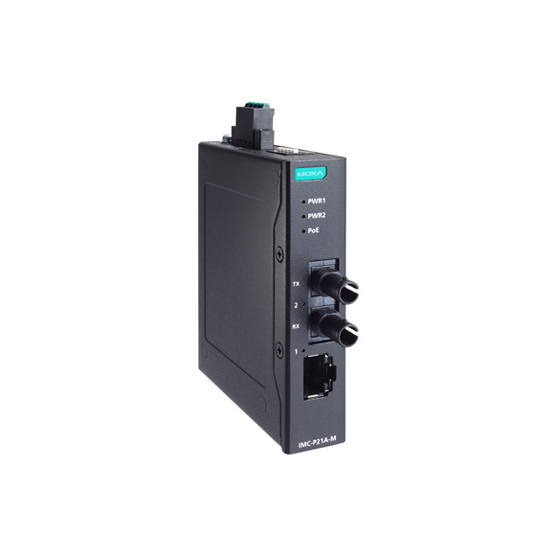

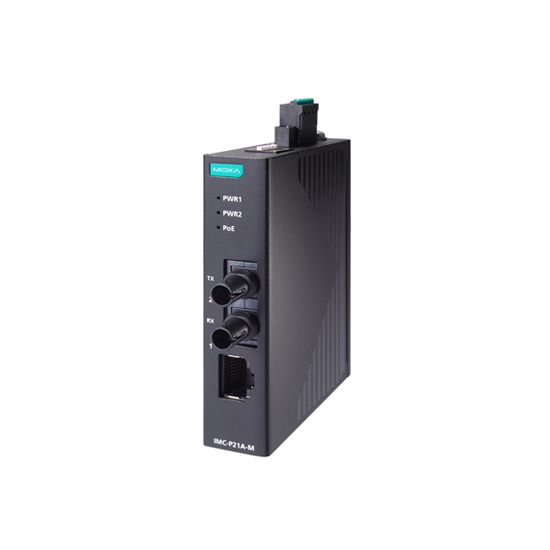

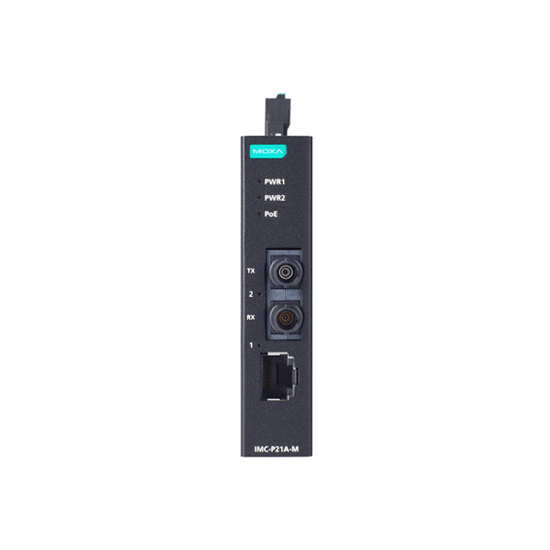

MOXA IMC-P21A-G2-M-ST Ethernet to Fiber Converter

Tags: Industrial Network Infrastructure , Ethernet Media Converters , Ethernet to Fiber Converters , Media Converters , Industrial Media Converters , Industrial Converters , Converters , MOXA IMC-P21A-G2 Series

MOXA IMC-P21A-G2-M-ST Ethernet to Fiber Converter

Model: IMC-P21A-G2-M-ST

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA IMC-P21A-G2-M-ST FEATURES

1 x PoE Port (10/100BaseT(X), RJ45 connector)
1 x 100BaseFX Port (multi-mode ST connector)
2 KM / 5 KM Typical data transmission distance on fiber
IP40-rated Metal body design
44 to 57 VDC Redundant dual power inputs
DIN-rail mounting
-10 to 60°C operating temperature range

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA IMC-P21A-G2-M-ST INTRODUCTION

IMC-P21A-G2 PoE+ Fast Ethernet-to-fiber media converters are designed to provide reliable and stable 10/100BaseT(X)-to-100Base-FX media conversion. These converters are classified as power source equipment (PSE) and are used to directly power up powered devices (PDs), eliminating the need for additional wiring.

The IMC-P21A-G2 PoE+ Fast Ethernet-to-fiber media converters provide up to 30 watts of power for the PoE+ port in standard mode and allow a high-power output of up to 36 watts for heavy-duty industrial PoE devices, such as weather-proof IP surveillance cameras with wipers/heaters, high-performance wireless access points, and IP phones. The IMC-P21A-G2 media converters are highly versatile and, with SC or ST fiber ports, can transmit data with high EMI immunity for up to 40 km from the device to the control center.

The PoE+ Fast Ethernet-to-fiber media converters support a variety of useful functions, as well as PoE diagnostics, Link Fault Pass-through, store-and-forward mode, and pass-through mode. The IMC-P21A-G2 converters support IEEE 802.3/802.3u/802.3x with 10/100M and MDI/MDI-X autosensing, providing a complete solution for your industrial Ethernet networks.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA IMC-P21A-G2-M-ST Ethernet to Fiber Converter online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the IMC-P21A-G2-M-SC and IMC-P21A-G2-S-SC models in the MOXA IMC-P21A-G2 Series.

MOXA IMC-P21A-G2-M-ST CERTIFICATIONS

Ethernet to Fiber : Interface
10/100Mb RJ45 (Megabit) Ports	No
10/100/1000Mb RJ45 (Gigabit) Ports	No
10/100Mb (Megabit) POE Ports	Yes : 1 Port (RJ45 connector)
10/100/1000Mb (Gigabit) POE Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	Yes : 1 ST Port
1000Mb Fiber optic multi mode (Gigabit) Ports	No
100Mb Fiber optic single mode (Megabit) Ports	No
1000Mb Fiber optic single mode (Gigabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	No
M12 port	No
Alert Output	No
Magnetic Isolation Protection	1.5 kV (built-in)
Ethernet to Fiber : Standards and protocols
Protocols and work standards	IEEE 802.3/802.3u/802.3x
Ethernet to Fiber : General
Maximum cable length for data transfer	2 KM / 5 KM with multi-mode fiber optic cable
MTBF	6,708,861 hrs
Ethernet to Fiber : Power Requirements
Input Voltage	44 to 57 VDC (PoE+ output: > 52 VDC recommended, PoE output: > 44 VDC recommended)
Input Current	-
Type of power input	-
Overload Current Protection	Supported
Power Consumption	Max 828 mA
Ethernet to Fiber : Physical Characteristics
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz; Signal: 10 V, IEC 61000-4-8 PFMF; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; Freefall: ISTA 1A; IP40 (with I/O modules attached); Telcordia SR332
Housing	Metal
Dimensions	90 x 73 x 20.3 mm (3.54 x 2.87 x 0.79 in)
Weight	212 g (0.47 lb)
Operating Temperature	-10 to 60°C (14 to 140°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operation Humidity	5 to 95% (non-condensing)
Installation	DIN-rail mounting
