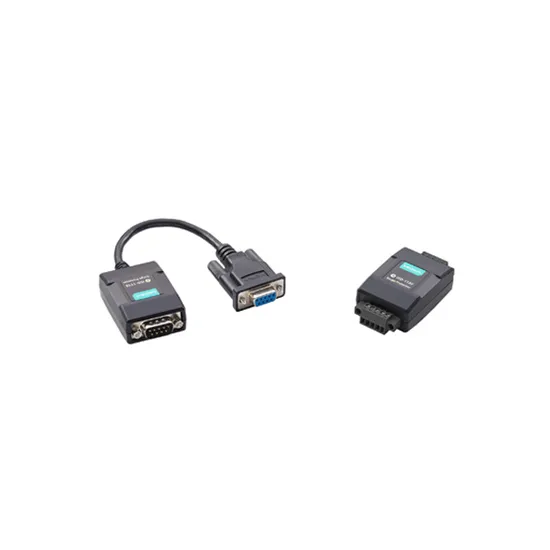

MOXA ISD-1130-T Surge Protector

Tags: Accessories , Industrial Accessories , Surge Protectors , MOXA ISD-1110-T/1130-T Series

Model: ISD-1130-T

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA ISD-1130-T FEATURES

Data Line Surge Protector
RS-422, RS-485 Serial Connector (Terminal block)
IP30-rated Plastic body design
Desktop mounting
-40 to 85°C Operating Temperature

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA ISD-1130-T INTRODUCTION

The ISD-1210-T/1230-T Series provides surge protection for serial data lines to prevent damage to devices such as modems, fax machines, I/O ports, terminals, instrumentation, hubs, and any other devices that use serial data connections. The ISD-1210-T/1230-T can add serial data line protection to a variety of serial connections: RS-232, RS-422, and RS-485.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA ISD-1130-T Surge Protector online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the ISD-1110-T model in the MOXA ISD-1110-T/1130-T Series.

Surge Protector : Serial Interface
Connector	Terminal block
Serial Standards	RS-422, RS-485
Baudrate	50 bps to 921.6 kbps
Surge Protector : Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
Surge Protector : Physical Characteristics
Housing	Plastic
Dimensions	53 x 37 x 20.6 mm (2.01 x 1.46 x 0.81 in)
Weight	Packaged: 96 g (0.21 lb), Product only: 30 g (0.07 lb)
Installation	Desktop
Operating Temperature	-40 to 85°C (-40 to 185°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
MTBF	62,642,538 hrs
Standards and Certifications	EMS: IEC 61000-4-5 Surge: Signal: 4 kV; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: EN 60950-1, IEC 60950-1; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
