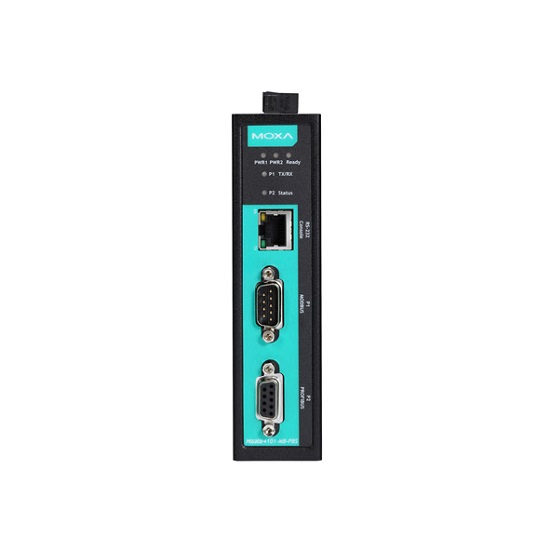

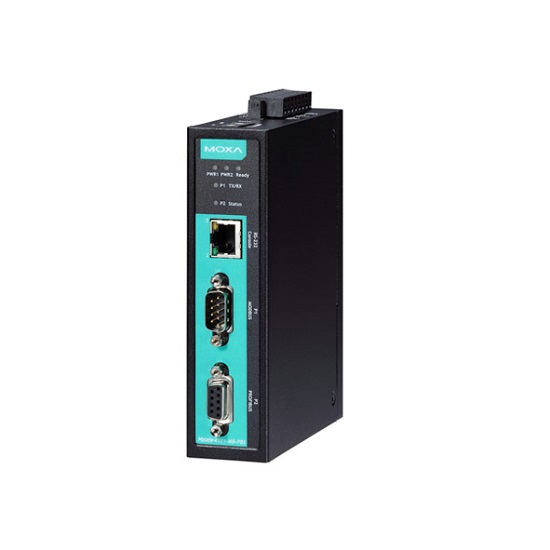

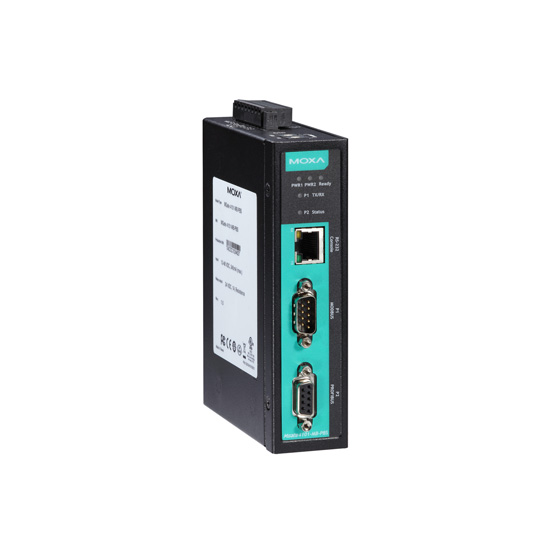

MOXA MGate 4101I-MB-PBS Industrial Ethernet Gateway
MOXA MGate 4101I-MB-PBS Industrial Ethernet Gateway
- Model: MGate 4101I-MB-PBS
$0.00
Ex Tax: $0.00
MOXA MGate 4101I-MB-PBS FEATURES
- Converts Modbus RTU/ASCII-to-PROFIBUS slave
- 1 x RS-232/422/485 Serial port (DB9 female connector)
- 1 x PROFIBUS port (DB9 female connector)
- 2 KV Isolation protection for Serial and PROFIBUS ports
- 12 to 48 VDC Redundant dual power inputs
- IP30-rated Metal body design
- 0 to 60°C operating temperature
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
MOXA MGate 4101I-MB-PBS INTRODUCTION
The MGate 4101-MB-PBS gateway provides a communication portal between PROFIBUS PLCs (e.g., Siemens S7-400 and S7-300 PLCs) and Modbus devices. With the QuickLink feature, I/O mapping can be accomplished within a matter of minutes. All models are protected with a rugged metallic casing, are DIN-rail mountable, and offer optional built-in optical isolation.
QuickLink and Windows Utilities for Easy Setup and Traffic Monitoring The QuickLink Windows utility uses a serial console port to connect to the MGate 4101-MB-PBS and makes configuration and operation as easy as possible. QuickLink can finish the configuration in just a few minutes by passively detecting Modbus requests with the AutoLearning function, and performing error-free I/O mapping with the AutoMapping feature. QuickLink drastically reduces Modbus-to-PROFIBUS integration time when compared to conventional I/O mapping, which can easily require days to complete. Additionally, embedded monitoring tools can maintain logs of Modbus communication packets and assist in troubleshooting.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA MGate 4101I-MB-PBS Industrial Ethernet Gateway online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the MGate 4101I-MB-PBS-T, MGate 4101-MB-PBS-T, and MGate 4101-MB-PBS models in the MOXA MGate 4101-MB-PBS Series.
MOXA MGate 4101I-MB-PBS CERTIFICATIONS
