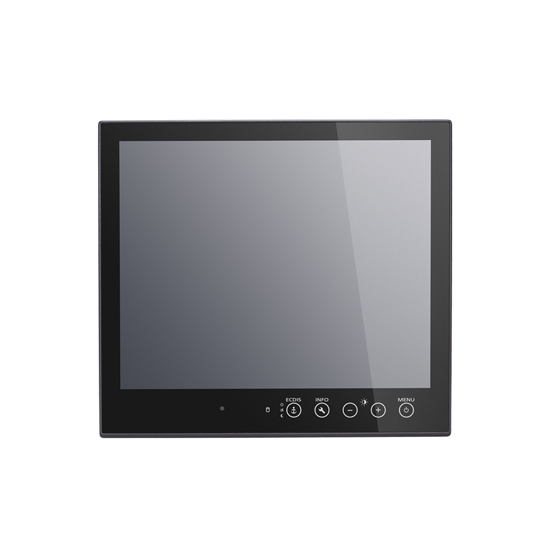

MOXA MPC-2190Z Panel Computer
MOXA MPC-2190Z FEATURES
- 19-inch panel computer (300 nits)
- CPU Intel® Celeron® 1047UE 1.40 GHz
- 2 x 10/100/1000 Mbps Ethernet ports (RJ45 connector)
- 2 x RS/232/422/485 Serial ports (DB9 male connector)
- Metal body design (IP54 for front, IP20 for rear)
- Multiple power supplies (100 to 240 VAC, 18 to 34 VDC)
- Supports Capacitive Touch (PCAP)
- -15 to 55°C operating temperature range
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0
MOXA MPC-2190Z INTRODUCTION
MPC-2190 panel computers feature an Intel 3rd generation processor matched to 4 GB of system memory, delivering a reliable, high-performance platform of wide versatility for use in industrial marine environments. With its two RS-232/422/485 serial ports, four NMEA 0183 ports, and two Gigabit Ethernet ports, the MPC-2190 panel computer supports a wide variety of serial and marine-specific interfaces as well as high-speed IT communications, all with native network redundancy.
The MPC-2190 Series comes with a range of standard display enhancements useful in industrial environments (including full range dimming, wide viewing angles, and optional optical bonding), as well as a few innovations especially deployed for maritime environments: user-friendly OSD controls, called SavvyTouch, featuring a proximity sensor for convenient adjustment in dark situations, immediate BIOS-level reports on hardware status (useful for determining why a machine will not boot up), and a quick-switch ECDIS button (for color-calibrated ECDIS models only) that allows instant brightness adjustments to any of the three pre-set calibrations dictated by the ECDIS standard. In addition to all of this, the MPC2190 Series features a modular design that makes device integration into either new or existing industrial systems much simpler, reducing deployment costs and overall time-to-market.
The MPC-2190 panel computers are compliant with several industrial marine standards, including IEC 60945, IEC 61162, IEC 61174, DNV, and IACS E10, verifying their resilience for maritime operations. The IP54 (front panel) and IP22 (rear panel) rated unibody shells provide strong additional protection against the harsh conditions found in marine environments. Color-calibrated ECDIS models are available upon request, providing an ideal HMI alternative for ECDIS charting and navigation stations.
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA MPC-2190Z Panel Computer online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
End-of-Life Product - No Replacement
Please note that the MPC-2190 Series has been phased out. You can explore the MPC-2070 Series, MPC-2240 Series, MPC-2120 Series, and MPC-2101 Series in the MOXA Panel Computers & Displays.
MOXA MPC-2190Z CERTIFICATIONS
