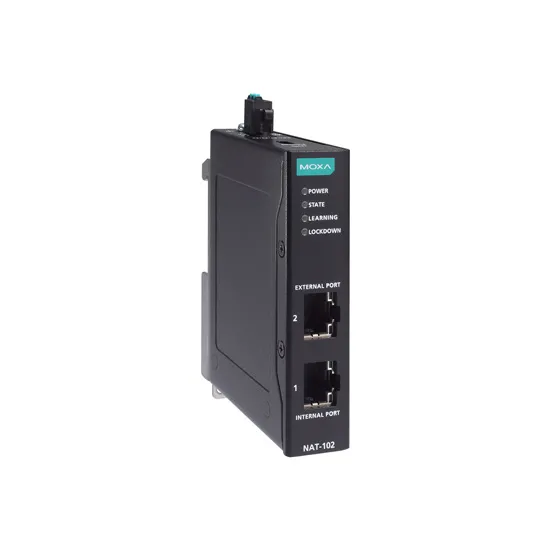

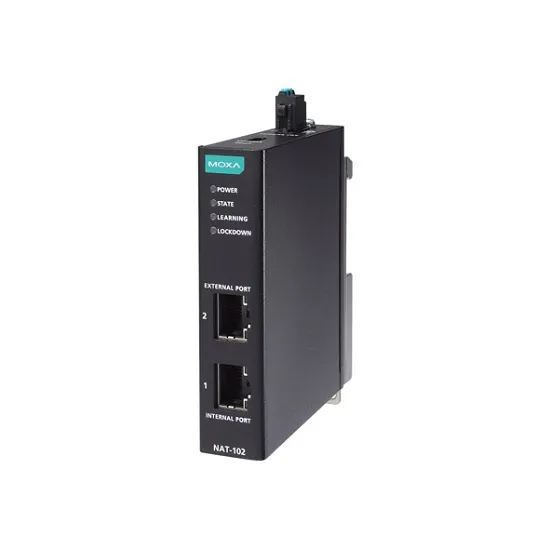

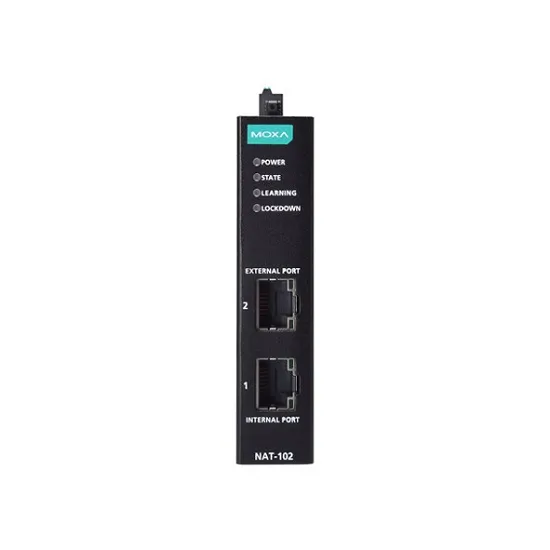

MOXA NAT-102-T Industrial Secure Router

MOXA NAT-102-T Industrial Secure Router
  • Model: NAT-102-T
$0.00
Ex Tax: $0.00

MOXA NAT-102-T FEATURES

  • 2-Port Industrial Network Address Translation
  • 2 x 10/100BaseT(X) Ports (RJ45 connector)
  • 12/24/48 VDC input power range
  • Metal body design
  • DIN-rail and Wall mounting
  • -40 to 75°C operating temperature


Over 40 Years in Business
Over 40 Years in Business
Successful track record across Canada
Full Engineering Services
Full Engineering Services
A powerhouse to provide consultation, training, and support
Strong Brand Portfolio
Strong Brand Portfolio
Top-notch products from superb global and local suppliers
Advanced Technologies
Advanced Technologies
From legacy and mainstream to advanced Industry 4.0

MOXA NAT-102-T INTRODUCTION

The NAT-102 Series is an industrial NAT device that is designed to simplify the IP configuration of machines in existing network infrastructure in factory automation environments. The NAT-102 Series provides complete NAT functionality to adapt your machines to specific network scenarios without complicated, costly, and time-consuming configurations. These devices also protect the internal network from unauthorized access by outside hosts.

Quick and User-friendly Access Control

The NAT-102 Series’ Auto Learning Lock feature automatically learns the IP and MAC address of locally connected devices and binds them to the access list. This feature not only helps you manage access control but also makes device replacements much more efficient.

Industrial-grade and Ultra-compact Design

The NAT-102 Series’ rugged hardware makes these NAT devices ideal for deployment in harsh industrial environments, featuring wide-temperature models that are built to operate reliably in hazardous conditions and extreme temperatures of -40 up to 75°C. Moreover, the ultra-compact size allows the NAT-102 Series to be easily installed into cabinets.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA NAT-102-T Industrial Secure Router online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the NAT-102 model in the MOXA NAT-102 Series.

MOXA NAT-102-T CERTIFICATIONS


Router : Interface
Ethernet Ports 2 x 10/100BaseT(X) Ports (RJ45 connector)
Serial Ports 1 x RS-232 Console Port (USB Type-C connector)
Input/Output Channels No
Alarm Contact Channels No
Router : Software Specifications
Management Web Console (HTTP/HTTPS), LLDP, Telnet, TFTP, HTTPS, SSH
Routing Redundancy -
Security Secure Boot, Trust access control
Time Management NTP Server/Client
Encryption -
Authentication -
Router : General
Supported Protocols -
MTBF 2,135,469 hrs
Router : LED Interface
LED Indicators POWER, STATE, LEARNING, LOCKDOWN
Router : Power Requirements
Input Voltage 12/24/48 VDC
Input Current 0.196 A @ 12 VDC, 0.100 A @ 24 VDC, 0.056 A @ 48 VDC
Operating Voltage 9.6 to 60 VDC
Overload Current Protection No
Reverse Polarity Protection Supported
Power Connector Removable terminal block
Router : Physical Characteristics
Housing Metal
Dimensions 20 x 73 x 90 mm (0.79 x 2.87 x 3.54 in)
Weight 210 g (0.47 lb)
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: UL 62368-1; EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 2; Traffic Control: NEMA TS2; Railway: EN 50121-4; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; Telcordia (Bellcore), GB
