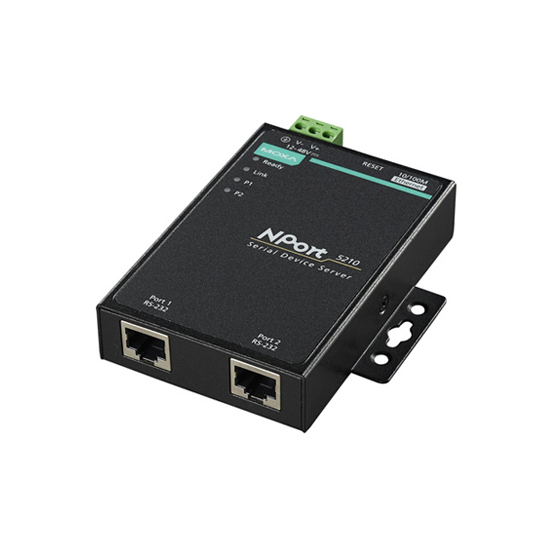

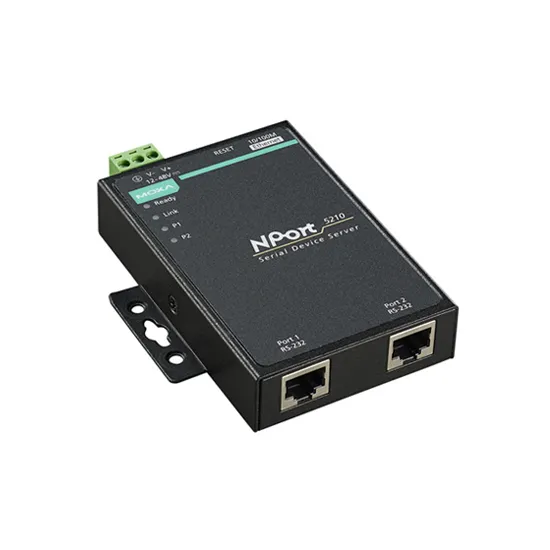

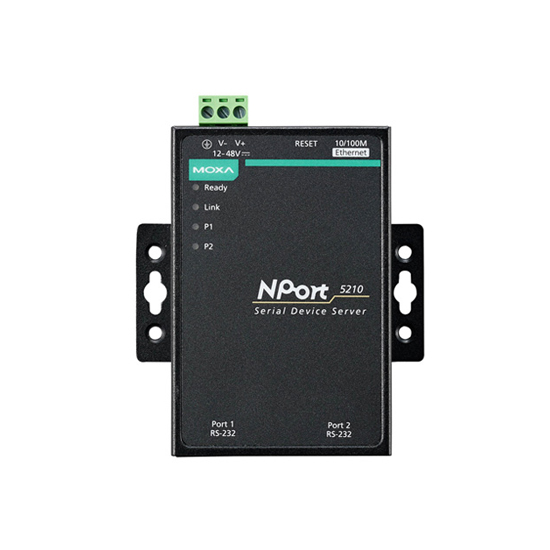

MOXA NPort 5210 Serial to Ethernet Device Server

Model: NPort 5210

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA NPort 5210 FEATURES

1 x 10/100BaseT(X) Port (RJ45 connector)
2 x RS 232 Serial ports (8-pin RJ45 connector)
12 to 48 VDC input power range
Desktop, DIN-rail, and Wall mounting
Metal body design
0 to 55°C operating temperature

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA NPort 5210 INTRODUCTION

The NPort 5200 serial device servers are designed to make your industrial serial devices Internet-ready quickly. The compact size of NPort 5200 serial device servers makes them the ideal choice for connecting your RS-232 (NPort 5210/5230/5210-T/5230-T) or RS-422/485 (NPort 5230/5232/ 5232I/5230-T/5232-T/5232I-T) serial devices—such as PLCs, meters, and sensors—to an IP-based Ethernet LAN, making it possible for your software to access serial devices from anywhere over a local LAN or the Internet. The NPort 5200 Series has several useful features, including standard TCP/IP protocols and a choice of operation modes, Real COM/TTY drivers for existing software, and remote control of serial devices with TCP/IP or traditional COM/TTY ports.

Standard TCP/IP Interface and Broad Choice of Operation Modes

NPort 5200 device servers can operate in TCP Server, TCP Client, or UDP operation mode, ensuring compatibility with software based on a standard network API (Winsock, BSD Sockets).

Real COM/TTY Drivers for Existing Software

With the Real COM/TTY drivers that are provided with each NPort, software designed for communication with COM/TTY ports can be instantly and seamlessly integrated into a TCP/IP network. This is an excellent no-fuss way to preserve your software investment and enjoy the benefits of networking your serial devices.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA NPort 5210 Serial to Ethernet Device Server online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the NPort 5210-T, NPort 5230, and NPort 5232 models in the MOXA NPort 5200 Series.

MOXA NPort 5210 CERTIFICATIONS

Serial-to-Ethernet : Interface
10/100Mb RJ45 (Megabit) Ports	Yes : 1 Port
100BaseFX Ports	No
Digital Input Channels	No
Digital Output Channels	No
Magnetic Isolation Protection	1.5 kV (built-in)
Alarm Contact Channels	No
Protocols	-
Serial-to-Ethernet : Serial Interface
Number of Ports	2 Ports
Serial Standards	RS-232
Connector	8-pin RJ45
Console Port	No
Serial-to-Ethernet : Serial Communication Parameters
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
Baudrate	Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400
Isolation	No
Serial-to-Ethernet : Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	-
RS-485-4w	-
RS-485-2w	-
Serial-to-Ethernet : Communication details
Wireless Standards	No
Maximum data transfer speed	No
Maximum direct range	No
Serial-to-Ethernet : Power Requirements
Connection	1 removable 3-contact terminal block(s)
Input Voltage	12 to 48 VDC
Input Current	325 mA @ 12 VDC
Serial-to-Ethernet : General
Management	DHCP Client, IPv4, SNTP, SMTP, SNMPv1, DNS, HTTP, ARP, BOOTP, UDP, TCP/IP, Telnet, ICMP
MTBF	381,342 hrs
Compatible operating systems	Windows 11/10/8.1/8/7/Vista/XP/ME/98/95, Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT, Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers	macOS versions: 10.12 to 10.15, 11.x, SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers	Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
Automatic Reboot Trigger	Built-in WDT
Serial-to-Ethernet : Security
Authentication	Local database (password only)
Security	No
Encryption	No
Serial-to-Ethernet : Features and capabilities
Display	No
Serial-to-Ethernet : Physical Characteristics
Dimensions	with ears: 90 x 100.4 x 22 mm (3.54 x 3.95 x 0.87 in), without ears: 67 x 100.4 x 22 mm (2.64 x 3.95 x 0.87 in)
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Safety: UL 60950-1; Medical: EN 55011: 2007+A2: 2007 Class A (Group 1) compliant, EN 60601-1-2: 2007 compliant; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR
Installation	Desktop, DIN-rail mounting (with optional kit), Wall mounting
Housing	Metal
Operating Temperature	0 to 55°C (32 to 131°F)
Storage Temperature	-40 to 75°C (-40 to 167°F)
Operation Humidity	5 to 95% (non-condensing)
Weight	340 g (0.75 lb)
