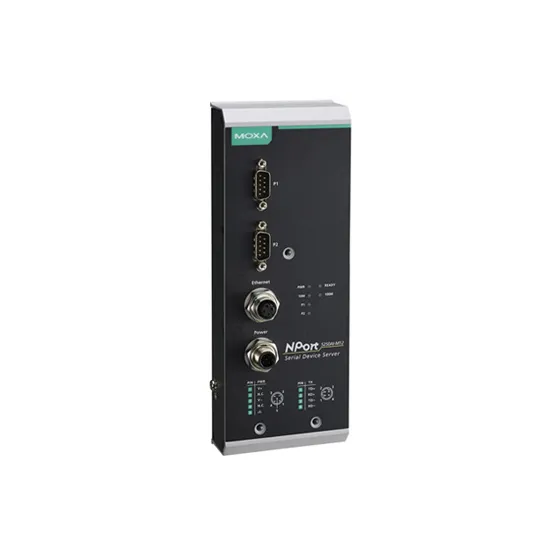

MOXA NPort 5250AI-M12 Serial to Ethernet Device Server

Tags: Industrial Edge Connectivity , Serial Device Servers , Industrial Device Servers , Industrial Serial Device Servers , Serial to Ethernet Device Servers , Serial to Ethernet Converters , Industrial Converters , Converters , MOXA NPort 5100AI-M12 Series

Model: NPort 5250AI-M12

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA NPort 5250AI-M12 FEATURES

1 x 10/100BaseT(X) Ports (M12 Connector)
2 x RS-232/422/485 Serial Ports (DB9-M connector)
2 KV Isolation protection for serial ports
12 to 48 VDC input power range
IP40-rated Metal body design
-25 to 55°C operating temperature range

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA NPort 5250AI-M12 INTRODUCTION

The NPort 5000AI-M12 serial device servers are designed to instantly make serial devices network-ready and provide direct access to them from anywhere on the network. Moreover, they are compliant with EN 50121-4 and all mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration. Thus, they are suitable for rolling stock and wayside applications where high levels of vibration exist in the operating environment.

NPort 5000AI-M12 device servers support SNMP, which can be used to monitor all units over Ethernet. Each unit can be configured to send trap messages automatically to the SNMP manager when user-defined errors are encountered. For users who do not use SNMP Manager, an email alert can be sent instead. Users can define the trigger for the alerts using Moxa’s Windows utility, or the web console. For example, alerts can be triggered by a warm start, a cold start, or a password change.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy the MOXA NPort 5250AI-M12 Serial to Ethernet Device Server online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the NPort 5150AI-M12-T, NPort 5150AI-M12, and NPort 5450AI-M12 models in the MOXA NPort 5000AI-M12 Series.

MOXA NPort 5250AI-M12 CERTIFICATIONS

Serial-to-Ethernet : Interface
10/100Mb RJ45 (Megabit) Ports	Yes : 1 Port
100BaseFX Ports	No
Digital Input Channels	No
Digital Output Channels	No
Magnetic Isolation Protection	No
Alarm Contact Channels	No
Protocols	-
Serial-to-Ethernet : Serial Interface
Number of Ports	2 Ports
Serial Standards	RS-232, RS-422, RS-485
Connector	DB9 male
Console Port	No
Serial-to-Ethernet : Serial Communication Parameters
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
Baudrate	Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
Isolation	Yes : 2 KV
Serial-to-Ethernet : Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
Serial-to-Ethernet : Communication details
Wireless Standards	No
Maximum data transfer speed	No
Maximum direct range	No
Serial-to-Ethernet : Power Requirements
Connection	M12 A-coded 5-pin male connector
Input Voltage	12 to 48 VDC
Input Current	360 mA @ 12 VDC
Serial-to-Ethernet : General
Management	ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
MTBF	639,622 hrs
Compatible operating systems	Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers	SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers	Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Automatic Reboot Trigger	Built-in WDT
Serial-to-Ethernet : Security
Authentication	Local database
Security	Protocols: SNMPv3, HTTPS (TLS 1.2)
Encryption	HTTPS, AES-128, RSA-1024, SHA-1, SHA-256
Serial-to-Ethernet : Features and capabilities
Display	No
Serial-to-Ethernet : Physical Characteristics
Dimensions	80 x 216.6 x 52.9 mm (3.15 x 8.53 x 2.08 in)
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF; Railway: EN 50121-4; Safety: UL 60950-1; Vibration: IEC 60068-2-; Green Product: RoHS, CRoHS, WEEE; IP40; Telcordia (Bellcore) Standard TR/SR
Installation	-
Housing	Metal
Operating Temperature	-25 to 55°C (-13 to 131°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operation Humidity	5 to 95% (non-condensing)
Weight	686 g (1.51 lb)
