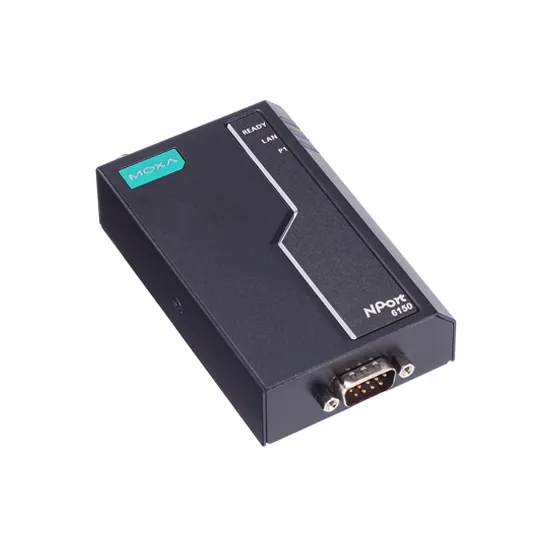

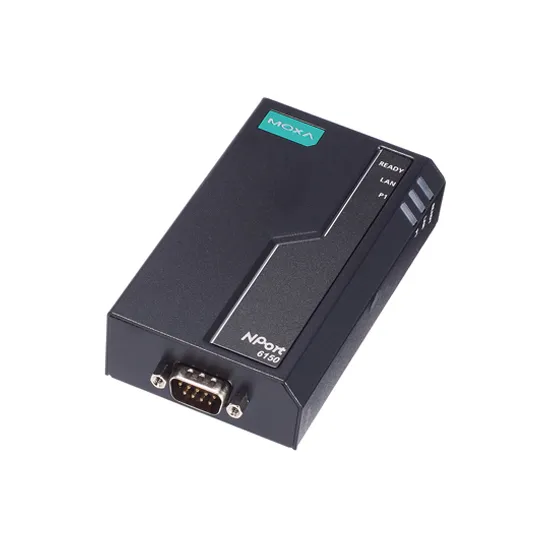

MOXA NPort 6150-G2 Serial to Ethernet Device Server

Tags: Industrial Edge Connectivity , Serial Device Servers , Terminal Servers , Industrial Serial Device Servers , Serial to Ethernet Device Servers , Serial to Ethernet Converters , Industrial Converters , Converters , MOXA NPort 6100-G2/6200-G2 Series

MOXA NPort 6150-G2 Serial to Ethernet Device Server

Model: NPort 6150-G2

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA NPort 6150-G2 FEATURES

1 x 10/100M Ethernet port (RJ45)
1 x RS-232/422/485 Serial port (DB9-M)
12 to 48 VDC input power range

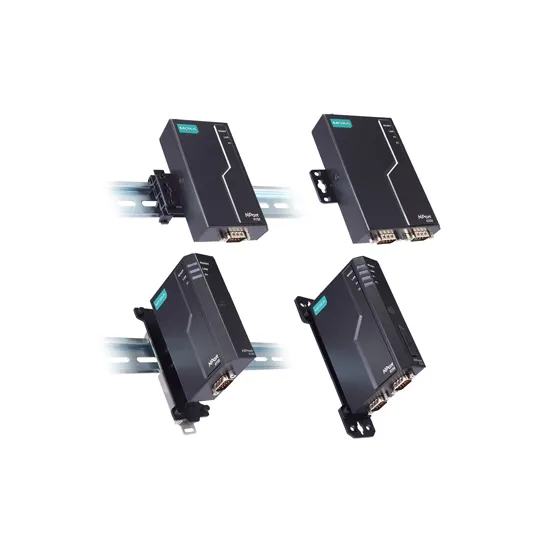

Desktop, DIN-rail, Wall, and Side-panel mounting
Metal body design
-10 to 60°C operating temperature range
Power Adapter Included

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA NPort 6150-G2 INTRODUCTION

The NPort 6000-G2 device servers use the TLS v1.2/v1.3 and SSHv2 protocols to transmit encrypted serial data over the Ethernet. The NPort 6000-G2's 3-in-1 serial port supports RS-232, RS-422, and RS-485 with the interface selected via an easy-to-use configuration menu. Furthermore, the pull high/low resistors and terminators are software configurable, eliminating the need to open the product case to adjust them.

IEC 62443-4-2 Security Level 2 Certified

The NPort 6100-G2/6200-G2 Series is IEC 62443-4-2 Security Level 2 certified, making it easier for asset owners and system integrators to integrate IIoT applications by providing a secure platform that has already been tested and validated to protect IIoT data and infrastructure against cyberthreats.

Secure Data Transmission

For many applications, guaranteeing secure data transmission is an important concern when connecting serial devices to a network. To answer this concern, the NPort® 6100-G2/6200-G2 secure terminal servers support the TLS and SSH protocols, which work by encrypting data before sending it over the network. With the NPort® 6100-G2/6200-G2, you can rest assured that serial data is transmitted securely over both private and public networks.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA NPort 6150-G2 Serial to Ethernet Device Server online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the NPort 6150-G2-T, NPort 6250-G2, and NPort 6250-G2-T models in the MOXA NPort 6100-G2/6200-G2 Series.

MOXA NPort 6150-G2 CERTIFICATIONS

Serial-to-Ethernet : Interface
10/100Mb RJ45 (Megabit) Ports	Yes : 1 Port
100BaseFX Ports	No
Digital Input Channels	No
Digital Output Channels	No
Magnetic Isolation Protection	1.5 kV (built-in)
Alarm Contact Channels	No
Protocols	TLS v1.2/v1.3 and SSHv2
Serial-to-Ethernet : Serial Interface
Number of Ports	1 Port
Serial Standards	RS-232, RS-422, RS-485
Connector	DB9 male
Console Port	No
Serial-to-Ethernet : Serial Communication Parameters
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	None, RTS/CTS, DTR/DSR, RTS Toggle, XON/XOFF
Baudrate	50 bps to 921.6 kbps (supports non-standard baudrates)
Isolation	No
Serial-to-Ethernet : Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
Serial-to-Ethernet : Communication details
Wireless Standards	No
Maximum data transfer speed	No
Maximum direct range	No
Serial-to-Ethernet : Power Requirements
Connection	-
Input Voltage	12 to 48 VDC
Input Current	12 to 48 VDC, 160 mA (max.)
Serial-to-Ethernet : General
Management	ARP, DHCP Client, DNS, HTTPS, ICMP, IPv4/IPv6, SMTP, SMTPS, SNMPv1/v2c/v3, SNTP, TCP/IP, UDP, WINS
MTBF	3,843,653 hrs
Compatible operating systems	Windows 11, 10, 8.1, 8, and 7, Windows Server 2022, 2019, 2016, 2012 R2, 2012, and 2008 R2
Fixed TTY Drivers	macOS versions: 14, 13, 12, and 11
Linux Real TTY Drivers	Kernel versions 6.x, 5.x, and 4.x
Automatic Reboot Trigger	Built-in WDT
Serial-to-Ethernet : Security
Authentication	Local database, RADIUS, TACACS+
Security	Protocols: HTTPS (TLS 1.2/1.3), SNMPv3, SSHv2
Encryption	HTTPS: ECC-256, ECC-384, ECC-521, RSA-1024, RSA-2048, RSA-3072, RSA-4096, AES-128, AES-256, CHACHA20, SHA-256, SHA-384, HMAC; SSH: ECC-256, ECC-384, ECC-521, RSA-2048, AES-128, AES-256, SHA-256, SHA-384, HMAC; SNMPv3: AES-128, SHA-256, SHA-384; Secure OP mode: HTTPS: ECC-256, ECC-384, ECC-521, RSA-1024, RSA-2048, RSA- 3072, RSA-4096, AES-128, AES-256, CHACHA20, SHA-256, SHA-384, HMAC; Config Import/Export: AES-256, SHA-256, HMAC
Serial-to-Ethernet : Features and capabilities
Display	No
Serial-to-Ethernet : Physical Characteristics
Dimensions	64 x 111.8 x 25 mm (2.52 x 4.4 x 0.98 in)
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV (AC), 0.5 kV (DC); Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV (AC), 0.5 kV (DC); Signal: 0.5 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF, IEC 61000-4-11; Cybersecurity: IEC 62443-4-2 Security Level 2, JC-STAR Level 1; International Approval: KC; Safety: IEC 62368-1, UL 62368-1, EN 62368-1; Traffic Control: NEMA TS2; Vibration: IEC 60068-2-6; Package Drop Test: ISTA 1A; Green Product: RoHS, CRoHS, WEEE; Telcordia Standard SR-332, Telcordia SR-332 Issue 4
Installation	Desktop, DIN-rail mounting (with optional kit), Wall mounting (with optional kit), Side-panel mounting (with optional kit)
Housing	Metal
Operating Temperature	-10 to 60°C (14 to 140°F), with power adapter (in the box): 0 to 40°C (32 to 104°F)
Storage Temperature	-40 to 75°C (-40 to 167°F)
Operation Humidity	5 to 95% (non-condensing)
Weight	228 g (0.50 lb), including package: 437 g (0.96 lb)
