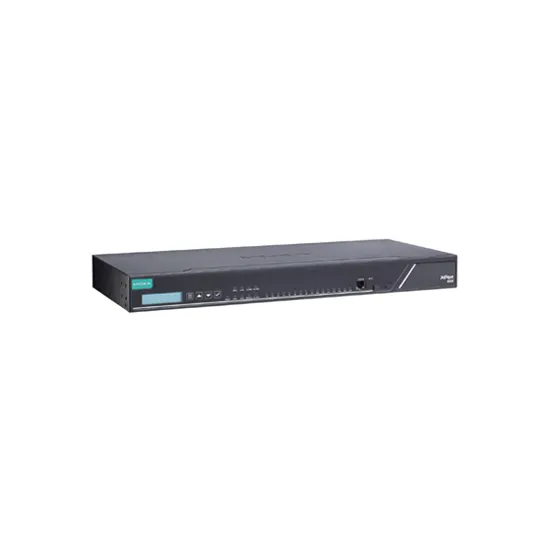

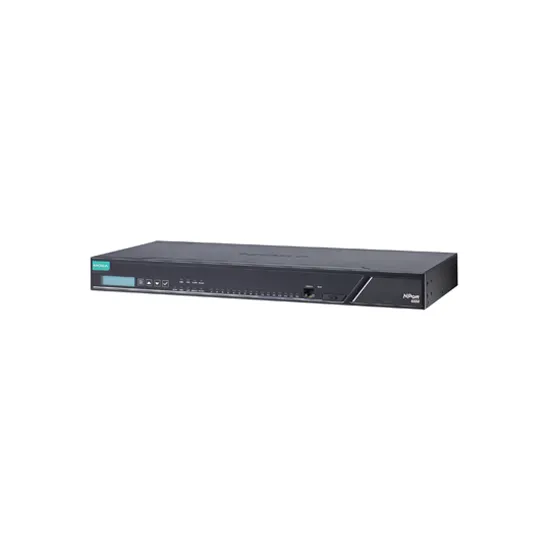

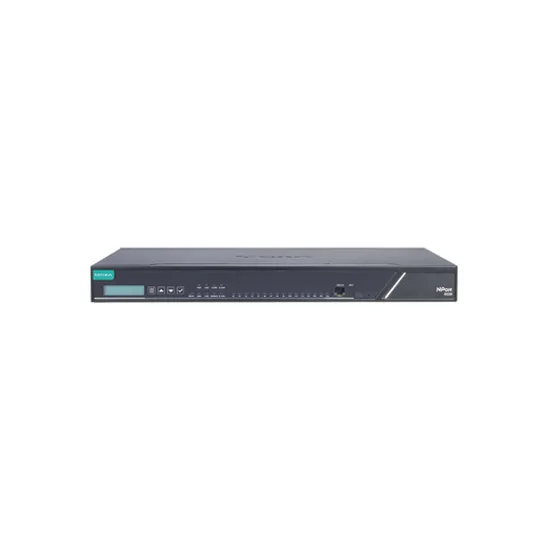

MOXA NPort 6610-16-G2 Serial to Ethernet Device Server

MOXA NPort 6610-16-G2 Serial to Ethernet Device Server
  • Model: NPort 6610-16-G2
0.00€
Ex Tax: 0.00€

    MOXA NPort 6610-16-G2 FEATURES

    • 2 x 10/100/1000M RJ45 ports
    • 16 x RS-232 Serial ports
    • ±48 VDC input power range
    • Desktop and Rack mounting
    • Metal body design
    • -10 to 60°C operating temperature
    • Including 1 x Power Cable
    Over 40 Years in Business
    Over 40 Years in Business
    Successful track record across Canada
    Full Engineering Services
    Full Engineering Services
    A powerhouse to provide consultation, training, and support
    Strong Brand Portfolio
    Strong Brand Portfolio
    Top-notch products from superb global and local suppliers
    Advanced Technologies
    Advanced Technologies
    From legacy and mainstream to advanced Industry 4.0

    MOXA NPort 6610-16-G2 INTRODUCTION

    Moxa has leveraged the IEC 62443-4-1 secure development life-cycle process to develop a new generation of NPort G2 secure terminal servers. In addition, the NPort 6600-G2 Series secure terminal servers are also IEC 62443-4-2 Security Level 2 certified, enabling secure connections for your legacy serial devices to industrial networks. User experience is enhanced based on Moxa’s 35 years of experience in the serial-connectivity field by providing versatile installation means for different space requirements and an easy-to-use troubleshooting tool for maintenance.

    Secure Data Transmission

    For many applications, guaranteeing secure data transmission is an important concern when connecting serial devices to a network. To answer this concern, the NPort® 6600-G2 secure terminal servers support the TLS and SSH protocols, which work by encrypting data before sending it over the network. With the NPort® 6600-G2, you can be rest assured that serial data is transmitted securely over both private and public networks.


    As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA NPort 6610-16-G2 Serial to Ethernet Device Server online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

    You can also find the NPort 6650-16-G2, NPort 6610-32-G2, and NPort 6610-8-G2 models in the MOXA NPort 6600-G2 Series.

    MOXA NPort 6610-16-G2 CERTIFICATIONS



    Serial-to-Ethernet : Interface
    10/100Mb RJ45 (Megabit) Ports No
    10/100/1000Mb RJ45 (Megabit) Ports Yes : 2 Ports
    100BaseFX Ports No
    Digital Input Channels No
    Digital Output Channels No
    Magnetic Isolation Protection 1.5 kV (built-in)
    Alarm Contact Channels No
    Protocols TLS and SSH
    Serial-to-Ethernet : Serial Interface
    Number of Ports 16 Ports
    Serial Standards RS-232
    Connector 8-pin RJ45
    Console Port No
    Serial-to-Ethernet : Serial Communication Parameters
    Data Bits 5, 6, 7, 8
    Stop Bits 1, 1.5, 2
    Parity None, Even, Odd, Space, Mark
    Flow Control None, RTS/CTS, DTR/DSR, RTS Toggle, XON/XOFF
    Baudrate 50 bps to 921.6 kbps (supports non-standard baudrates)
    Isolation No
    Serial-to-Ethernet : Serial Signals
    RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
    RS-422 Tx+, Tx-, Rx+, Rx-, GND
    RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
    RS-485-2w Data+, Data-, GND
    Serial-to-Ethernet : Communication details
    Wireless Standards No
    Maximum data transfer speed No
    Maximum direct range No
    Serial-to-Ethernet : Power Requirements
    Connection -
    Input Voltage ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
    Input Current 320 mA (max.)
    Serial-to-Ethernet : General
    Management ARP, DHCP Client, DNS, HTTPS, ICMP, IPv4/IPv6, SMTP, SMTPS, SNMPv1/v2c/v3, SNTP, TCP/IP, UDP, WINS
    MTBF 29,517 hrs
    Compatible operating systems Windows 11, 10, 8.1, 8, and 7, Windows Server 2022, 2019, 2016, 2012 R2, 2012, and 2008 R2
    Fixed TTY Drivers macOS versions: 14, 13, 12, and 11
    Linux Real TTY Drivers Kernel versions 6.x, 5.x, and 4.x
    Automatic Reboot Trigger Built-in WDT
    Serial-to-Ethernet : Security
    Authentication Local database, RADIUS, TACACS+
    Security Protocols: HTTPS (TLS 1.2/1.3), SNMPv3, SSHv2
    Encryption HTTPS: ECC-256, ECC-384, ECC-521, RSA-1024, RSA-2048, RSA-3072, RSA-4096,, AES-128, AES-256, CHACHA20, SHA-256, SHA-384, HMAC; SSH: ECC-256, ECC-384, ECC-521, RSA-2048, AES-128, AES-256, SHA-256, SHA-384,, HMAC; SNMPv3: AES-128, SHA-256, SHA-384; Secure OP mode: HTTPS: ECC-256, ECC-384, ECC-521, RSA-1024, RSA-2048, RSA- 3072, RSA-4096, AES-128, AES-256, CHACHA20, SHA-256, SHA-384, HMAC; Config import/export: AES-256, SHA-256, HMAC
    Serial-to-Ethernet : Features and capabilities
    Display Yes
    Serial-to-Ethernet : Physical Characteristics
    Dimensions with ears: 440 x 200 x 43.65 mm (17.32 x 7.87 x 1.72 in)
    Standards and Certifications EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV (AC), 0.5 kV (DC); Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV (AC), 0.5 kV (DC), IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF, IEC 61000-4-11: Excluding DC models; Traffic Control: NEMA TS2; Safety: IEC 62368-1, UL 62368-1, EN 62368-1; Vibration: IEC 60068-2-6; Package Drop Test: ISTA 1A; Green Product: RoHS, CRoHS, WEEE; Telcordia Standard SR-332, Telcordia SR-332 Issue 4
    Installation Desktop, Rack mounting (RK-43-01, included in the box)
    Housing Metal
    Operating Temperature -10 to 60°C (14 to 140°F)
    Storage Temperature -40 to 75°C (-40 to 167°F)
    Operation Humidity 5 to 95% (non-condensing)
    Weight 2.80 kg (6.17 lb)
