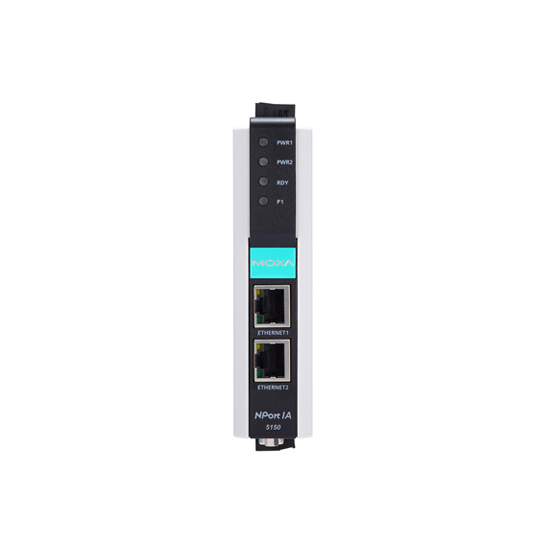

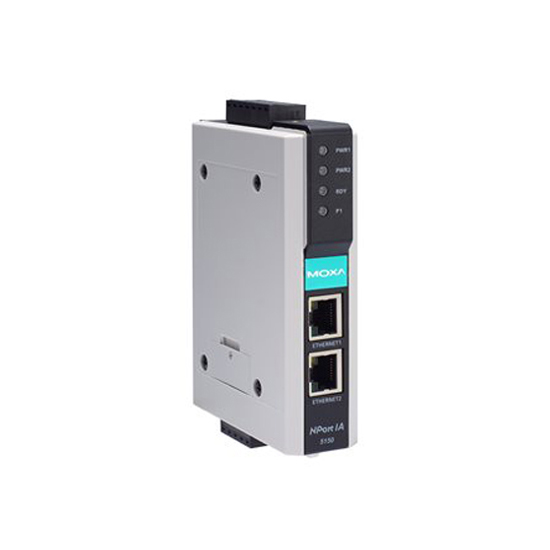

MOXA NPort IA-5150-IEX Serial to Ethernet Device Server

Tags: Industrial Edge Connectivity , Serial Device Servers , Industrial Device Servers , Industrial Serial Device Servers , Serial to Ethernet Device Servers , Serial to Ethernet Converters , Industrial Converters , Converters , MOXA NPort IA5000 Series

MOXA NPort IA-5150-IEX Serial to Ethernet Device Server

Model: NPort IA-5150-IEX

Based on 0 reviews. - Write a review

$0.00

Ex Tax: $0.00

Add to Cart

Buy Now Enquire Now

Add to Wish List Compare this Product

Datasheet

MOXA NPort IA-5150-IEX FEATURES

2 x 10/100Mbps T(x) Ethernet ports (RJ45 connector)
1 x RS-232/422/485 Serial port (DB9-M and TB connectors)
12 to 48 VDC Redundant dual power inputs
IP30-rated plastic body design
DIN-rail mounting installation
0 to 55°C operating temperature

Over 40 Years in Business

Successful track record across Canada

Full Engineering Services

A powerhouse to provide consultation, training, and support

Strong Brand Portfolio

Top-notch products from superb global and local suppliers

Advanced Technologies

From legacy and mainstream to advanced Industry 4.0

Description
Specifications

MOXA NPort IA-5150-IEX INTRODUCTION

NPort® IA device servers provide easy and reliable serial-to-Ethernet connectivity for industrial automation applications. The device servers can connect any serial device to an Ethernet network, and to ensure compatibility with network software, they support a variety of port operation modes, including TCP Server, TCP Client, and UDP. The rock-solid reliability of the NPort® IA device servers makes them an ideal choice for establishing network access to RS-232/422/485 serial devices such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. All models are housed in compact, rugged housing that is DIN-rail mountable.

Cascading Ethernet Ports Make Wiring Easy (10/100BaseTX models)

The NPort® IA5150 and IA5250 device servers each have two Ethernet ports that can be used as Ethernet switch ports. One port connects directly to the network or server, and the other port can be connected to either another NPort® IA device server or an Ethernet device. The dual Ethernet ports help reduce wiring costs by eliminating the need to connect each device to a separate Ethernet switch.

As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA NPort IA-5150-IEX Serial to Ethernet Device Server online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.

You can also find the NPort IA-5150I, NPort IA-5150I-T, and NPort IA-5250-T models in the MOXA NPort IA5000 Series.

MOXA NPort IA-5150-IEX CERTIFICATIONS

Serial-to-Ethernet : Interface
10/100Mb RJ45 (Megabit) Ports	Yes : 2 Ports
100BaseFX Ports	No
Digital Input Channels	No
Digital Output Channels	No
Magnetic Isolation Protection	1.5 kV (built-in)
Alarm Contact Channels	No
Protocols	-
Serial-to-Ethernet : Serial Interface
Number of Ports	1 Port
Serial Standards	RS-232/422/485
Connector	DB9 male for RS-232 and terminal block for RS-422/485
Console Port	No
Serial-to-Ethernet : Serial Communication Parameters
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
Baudrate	Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400
Isolation	No
Serial-to-Ethernet : Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
Serial-to-Ethernet : Communication details
Wireless Standards	No
Maximum data transfer speed	No
Maximum direct range	No
Serial-to-Ethernet : Power Requirements
Connection	Terminal block
Input Voltage	12V DC, 0.238A to 48V DC (Dual power inputs)
Input Current	435 mA @ 12 VDC
Serial-to-Ethernet : General
Management	DHCP Client, IPv4, SMTP, SNMPv1, Telnet, ARP, BOOTP, DNS, HTTP, TCP/IP, UDP, ICMP, Rtelnet
MTBF	1,349,710 hrs
Compatible operating systems	Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98 and 95, Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000 and NT, Windows Embedded CE 5.0 and 6.0, Windows XP Embedded
Fixed TTY Drivers	macOS versions: 14, 13, 12, 11, and 10.1x, SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5. x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers	Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
Automatic Reboot Trigger	-
Serial-to-Ethernet : Security
Authentication	Local database (password only)
Security	No
Encryption	No
Serial-to-Ethernet : Features and capabilities
Display	No
Serial-to-Ethernet : Physical Characteristics
Dimensions	29 x 89.2 x 118.5 mm (0.82 x 3.51 x 4.57 in)
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11; Safety: IEC 60950-1, EN 60950-1, EN 62368-1, UL 508; Maritime: DNV; Hazardous Locations: ATEX, Class I Division 2, IECEx; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; IP30; Telcordia (Bellcore) Standard TR/SR
Installation	DIN-rail mounting
Housing	Plastic
Operating Temperature	0 to 55°C (32 to 131°F)
Storage Temperature	-40 to 75°C (-40 to 167°F)
Operation Humidity	5% to %95 non-condensing
Weight	360 g (0.79 lb)
