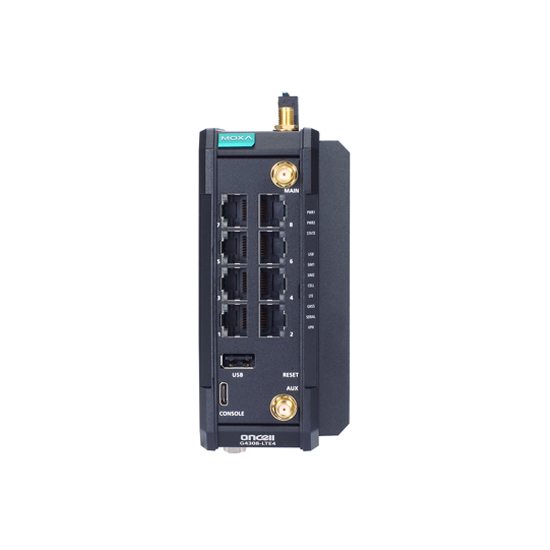

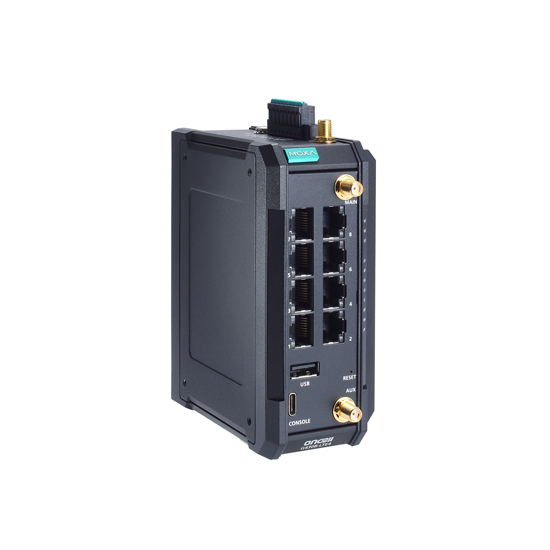

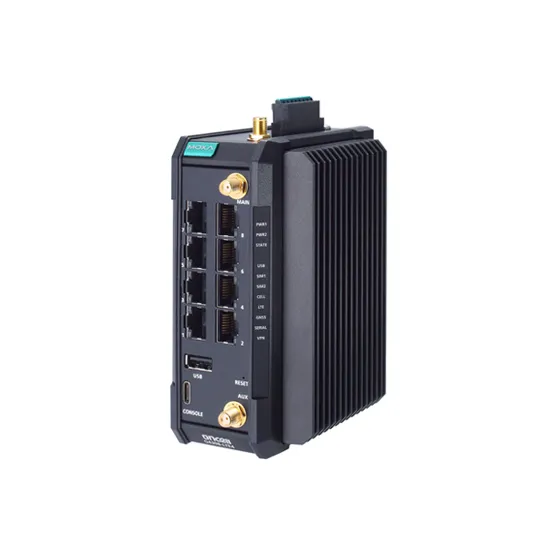

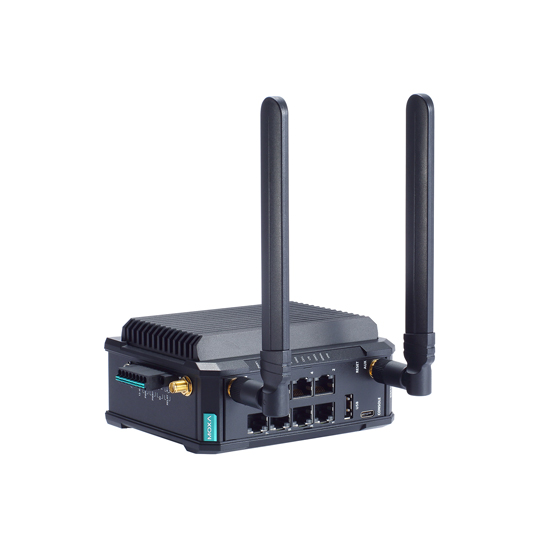

MOXA OnCell G4308-LTE4-GL Industrial Cellular Router
- Model: OnCell G4308-LTE4-GL
MOXA OnCell G4308-LTE4-GL FEATURES
- Supports Global Frequency Bands
- Supports LTE CAT 4, HSPA, UMTS Standards
- 8 x 10/100/1000BaseT(X) Ports (RJ45 connector)
- 1 x RS-232/422/485 Serial Port (DB9-M connector)
- 12 to 48 VDC Dual power inputs
- DIN-rail and Wall mounting
- IP40-rated metal body design
- -10 to 55°C Operating Temperature
MOXA OnCell G4308-LTE4-GL INTRODUCTION
The OnCell G4308-LTE4 Series is a reliable and powerful
secure cellular router with global LTE coverage. This router provides reliable
data transfers from serial and Ethernet to a cellular interface that can be
easily integrated into legacy and modern applications. WAN redundancy between
the cellular and Ethernet interfaces guarantees minimal downtime, while also
providing extra flexibility. To enhance cellular connection reliability and
availability, the OnCell G4308-LTE4 Series features GuaranLink with dual SIM
cards. Moreover, the OnCell G4308-LTE4 Series features dual power inputs,
high-level EMS, and a wide operating temperature for deployment in demanding
environments. Through the power management function, administrators can set up
schedules to fully control the OnCell G4308-LTE4 Series’ power usage and
minimize power consumption when idle to save cost.
Designed for robust security, the OnCell G4308-LTE4 Series
supports Secure Boot to ensure system integrity, multi-layer firewall policies
for managing network access and traffic filtering, and VPN for secure remote
communications.
- Highly Integrated Industrial Cellular Routers
- Integrated LTE Cat. 4 module with global band
- 8 Gigabit ports with managed Layer 2 switch functions
- Supports serial devices with the 3-in-1 RS232/422/485 port
- Supports MRC Quick Link Ultra for remote access and is easy to configure
As an Authorized Distributor of MOXA, Manufacturers Automation Inc. (ManuAuto) offers a wide variety of Industrial Automation and Communication products across North America, including Canada (Ontario, Toronto) and the US. Buy MOXA OnCell G4308-LTE4-GL Industrial Cellular Router online at a competitive price, with on-time delivery and fast shipping services. Our certified engineers are always available to support you.
You can also find the OnCell G4308-LTE4-GL-T model in the MOXA OnCell G4308 Series.
MOXA OnCell G4308-LTE4-GL CERTIFICATIONS

| 3G Modem : Interface | |
| SIM card slot | Yes : 2 x Nano slots (Push-eject tray type) |
| Ethernet Ports | Yes : 8 x 10/100/1000BaseT(X) Ports (RJ45 connector) |
| WAN | Yes |
| USB | Yes : 1 x USB 2.0 Type A |
| Digital Input and Output | Yes : 1 x Digital Output Channel (Relay output with current carrying capacity of 1 A @ 24 VDC), 1 x Digital Input Channel (-30 to +3 V for state 0, +13 to +30 V for state 1) |
| Serial port | Yes : 1 x RS-232/422/485 port (DB9 male connector) |
| Alert Output | No |
| Cellular Standards | LTE CAT 4, HSPA, UMTS |
| Band Options | LTE B1: (2100 MHz) / B2 (1900 MHz) / B3 (1800 MHz) / B4 (1700/2100 MHz (AWS)) / B5 (850 MHz) / B7 (2600 MHz) / B8 (900 MHz) / B12 (700 MHz) / B13 (700 MHz) / B14 (700 MHz) / B20 (800 MHz) / B25 (1900 MHz) / B26 (850 MHz) / B28 (700 MHz); UMTS/HSPA: B1 (2100 MHz) / B2 (1900 MHz) / B4 (1700 MHz(AWS)) / B5 (850 MHz) / B6 (800MHz) / B8 (900 MHz) / B19 (800 MHz) |
| Cellular Antenna Connectors | 2 x SMA female |
| WLAN Standards | No |
| WLAN Antenna Connector | No |
| GPS Antenna Connector | 1 x SMA female |
| 3G Modem : Radio specifications | |
| Radio Connection type | GuaranLink |
| Maximum data transfer speed of 2G | - |
| Maximum data transfer speed of 3G | - |
| Maximum data transfer speed of 4G | 20 MHz bandwidth: 150 Mbps DL, 50 Mbps UL |
| WiFi Radio Frequency | No |
| 3G Modem : Software Specifications | |
| VPN | NAT, IPsec VPN, OpenVPN |
| Firewall | Filter: DDoS, Ethernet protocols, ICMP, IP address, MAC address, Ports, DPI |
| Routing Redundancy | VRRP |
| Management | Back Pressure Flow Control, GuaranLink, LLDP, Moxa Remote Connect (MRC), MXconfig, MXsecurity3, MXview One, Power Management, Remote SMS Control, Syslog |
| Time Management | NTP Server/Client, SNTP |
| 3G Modem : General | |
| LED Indicators | PWR1, PWR2, STATE, USB, SIM1, SIM2, CELL, LTE, GNSS, SERIAL, VPN |
| Operating mode | LTE Router |
| MTBF | 1,533,742 hrs |
| 3G Modem : Standards and protocols | |
| Protocols | DPI, DDNS, DHCP Server/Client, SMTP, SNMPv1/v2c/v3, ARP, Telnet, TCP/IP, UDP, IPsec |
| 3G Modem : Features and capabilities | |
| Send and receive SMS | Yes |
| 3G Modem : Security | |
| Security and Encryption | Hardware-based Security: Secure Boot; IPsec VPN Encryption: DES, 3DES, AES-128, AES-192, AES-256; OpenVPN Encryption: AES-128/192/256 CBC, AES-128/192/256 GCM, CHACHA20-POLY1305 |
| Authentication | Security: Authentication Local database, RADIUS, Access Control List; IPsec VPN Authentication: MD5 and SHA (SHA-256), RSA (key size: 1024-bit, 2048-bit), Pre-shared Key or X.509 v3 certificate |
| 3G Modem : Power Requirements | |
| Power Connector | Screw-locked terminal block |
| Power Consumption (Output Adapter) | 47 mW at 12 V (idle), 11.05 W at 12 V (typ.), 14.28 W at 48 V (max.) |
| Input Voltage | 12 to 48 VDC |
| POE Support | No |
| Input Current | 1.16 A (max.) |
| Reverse Polarity Protection | Supported |
| 3G Modem : Buttons | |
| Power button | No |
| Reset | Yes |
| 3G Modem : Physical Characteristics | |
| Dimensions | 125 x 58.2 x 100 mm (4.92 x 2.29 x 3.94 in) |
| Installations | DIN-rail mounting, Wall mounting (with optional kit) |
| Housing | Metal |
| Weight | 707 g (1.56 lb) |
| Operating Temperature | -10 to 55°C (14 to 131°F) |
| Storage Humidity | 5 to 95% (non-condensing) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Type of Use | Harsh environment |
| Standards and Certifications | EMC: EN 55032/35, EN 61000-6-2/-6-4, CISPR 32/35; EMI: ICES-003, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV (level 4)5, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m (level 3); 1.8, 2.6, 3.5, 5GHz: 3V/m (level 2), IEC 61000-4-4 EFT: Power: 2 kV; IO: 1 kV (level 3)5, IEC 61000-4-5 Surge: Power: Power: 2 kV, Signal: 2 kV (level 3)5, IEC 61000-4-6 CS: 0.15 MHz to 80 MHz; Signal: 10 V (level 3), IEC 61000-4-8: 30 A/m (level 4); Freefall: IEC 60068-2-32; Radio Frequency: FCC ID, RI7LE910CXWWX, EN 303 413; Radio: RCM, IC: 5131A, LE910CXWWX, UKCA; Cellular Standards: EN 301 489-1/-19 (GPS), EN 301 489-1/-52 (WCDMA/LTE), EN 301 511, EN 301908-1/-2/-13; Cybersecurity: EN 18031-1; Safety: UL 62368-1, EN 62368-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP40; Telcordia Standard SR-332 |
